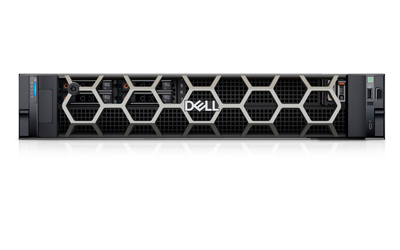

Dell PowerEdge XE9640 GPU Server

Dell PowerEdge XE9640 GPU Server

  • 2U 4-way GPU server

  • Two 4th Gen Intel® Xeon® Scalable processor with up to 56 cores per processor

  • 4 NVIDIA H100® 700W NVLINK GPUs, fully interconnected with NVIDIA NVLink technology or 4 Intel® Data Center Max 1550 OAM 600W with Xe Link

  • Up to 4 x 2.5-inch NVMe SSD drives max 61.44 TB

  • 2 CPU configuration: Up to 4 PCIe slots (4 x16 Gen5)

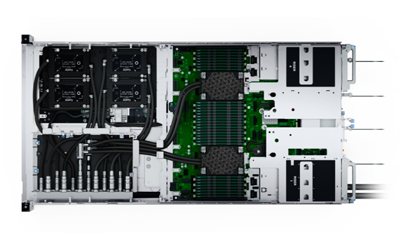

  • Supports liquid cooling with internal manifold for GPUs and processors

  • For dense Supercomputer and HPC acceleration workloads and applications

Request Info


Next level AI acceleration

Deliver real-time insights with this liquid-cooled 2U 4-way GPU server, designed to drive the latest AI, Machine Learning and Deep Learning Neural Network applications.

Unleashing the Full Potential of AI

  • Combined with high core count of up to 56 cores of Intel® Xeon® processors and the most GPU memory and bandwidth available to break through the bounds of today's and tomorrow's AI computing.
  • Supports four NVIDIA H100 700W SXM GPUs fully interconnected with NVIDIA NVlink
  • Supports Rack Liquid Cooling Infrastructure with 42U XE9640 rack manifold and 48U XE9640 rack manifold

Cyber Resilient Architecture

Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations.

Increase efficiency with an autonomous infrastructure

The Dell OpenManage systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC

Tech Specs & Customization

Two 4th Generation Intel® Xeon® Scalable processors with up to 56 cores per processor
Operating System
Operating System
Canonical® Ubuntu® Server LTS
Red Hat® Enterprise Linux
Optional LCD bezel or security bezel
Dimensions & Weight
3.41 inches (86.8 mm)
18.97 inches (482.0 mm)
36.47 inches (926.5 mm) with bezel
35.93 inches (912.8 mm) without bezel
102.07 lbs. (46.3 kg)
Memory Type
Supports DDR5 RDIMM (registered DIMM) only
Memory Module Slots
8 DIMMS, 16 DIMMs and 32 DIMMs for XE9640 NVIDIA GPU supported systems
Maximum RAM
RDIMM max 2TB for XE9640 NVIDIA GPU supported systems
Embedded / At-the-Server
iDRAC Direct
iDRAC Restful API with Redfish
iDRAC Service Module
CloudIQ for PowerEdge plug in
OpenManage Enterprise
CloudIQ for PowerEdge plug in
OpenManage Enterprise
OpenManage Enterprise Integration for VMware® vCenter
OpenManage Integration for Microsoft® System Center
OpenManage Integration with Windows Admin Center
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin
OpenManage Integrations
BMC Truesight
Microsoft® System Center
OpenManage Integration with ServiceNow
RedHat® Ansible® Modules
Terraform Providers
VMware® vCenter and vRealize Operations Manager
Storage Controllers
Internal Boot
Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs
Software RAID: S160
Front Bays
Up to 4 x 2.5-inch NVMe SSD drives, 61.44 TB max
Power Supplies
Power Supplies
2800W Titanium 200-240 VAC or 240 VDC redundant, hot swap

Four sets (dual fan module) High performance (HPR) gold grade
fans for Processors
All are hot swap fans
Cooling options
Liquid Cooling with internal Manifold
Up to 4 PCIe slots (4 x16 Gen5)
Form Factor
Form Factor
2U Rack Server
Network Options
1 x OCP 3.0 (x8 PCIe lanes)
2 x 1 GbE (optional)
Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
1 x VGA
Rear Ports
1 x USB 2.0
1 x USB 3.0
1 x RJ45 iDRAC9 ethernet port
