Dell PowerEdge XE7740 GPU Server| ASA Computers

Dell PowerEdge XE7740 GPU Server

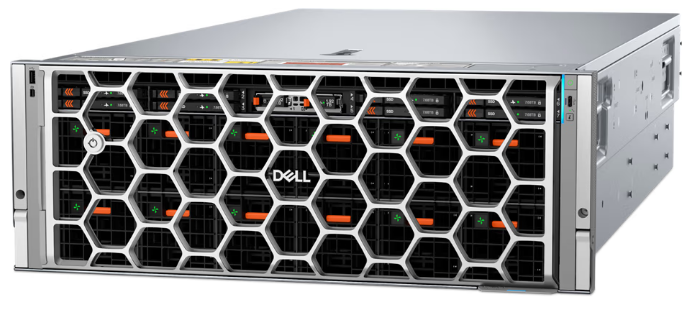

Dell PowerEdge XE7745 GPU Server

  • 4U GPU server

  • Two 5th Generation AMD EPYC 9005 Series processors with up to 192 cores per processor

  • 8x PCIe Gen 5 x16 DW-FHFL up to 600W, or 16x PCIe Gen 5 x16 SW-FHFL up to 75W

  • Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB

  • Up to 8 PCIe Gen5 x16 SW-FHHL cards, each up to 150W

  • 3200W Titanium 200-240 V AC or 240 V DC, hot swap redundant

  • Purpose-built for evolving AI-powered enterprise performance

Request Info

Features

Flexible AI acceleration

PowerEdge XE7745 empowers enterprise AI insights with flexible air-cooled PCIe GPU configurations for inferencing and model fine-tuning.

Extreme AI acceleration flexibility

  • Two AMD EPYC 9005 Series processor with up to 192 Zen5 cores per processor
  • GPUs: 8x PCIe Gen 5 x16 DW up to 600W or 16x PCIe Gen 5 x16 SW up to 75W
  • Four sets of HPR fans mid-tray, 12 HPR fans on front of system

Cyber Resilient Architecture

Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations.

Increase efficiency with an autonomous infrastructure

The Dell OpenManage systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC

Tech Specs & Customization

Processor
Processor
Two AMD EPYC 9005 Series processor with up to 192 Zen5 cores per processor
Operating System
Operating System
Canonical Ubuntu Server LTS
RedHat Enterprise Linux
SUSE Linux Enterprise Server
VMWare ESXi
Bezel
Bezel
Optional security bezel
Dimensions & Weight
Height
6.86 inches (174.3 mm)
Width*
18.98 inches (482.0 mm)
Depth*
35.42 inches (899.56 mm) with bezel
34.91 inches (886.73 mm) without bezel
Weight
151.02 lbs. (68.5 kg)
Memory*
Memory Type
RDIMM
Memory Module Slots
24 DDR5 DIMM slot
Maximum RAM
RDIMM 3.072 TB
Management
Embedded / At-the-Server
iDRAC10
iDRAC Direct
iDRAC Restful API with Redfish
iDRAC Service Module
RACADM CLI
Consoles
OpenManage Enterprise (OME)
OME Power Manager OME Services OME Update Manager
OME APEX AIOps Observability
OME Integration for VMware vCenter
(with VMware Aria Operations)
OpenManage Integrations
RedHat® Ansible® Collections
Terraform Providers
Storage Controllers
Internal Boot
Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs or USB
Storage
Front Bays
Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB
Power Supplies
Power Supplies
3200W Titanium 200-240 V AC or 240 V DC, hot swap redundant
Cooling
Fans
Up to four sets of high performance (HPR) platinum grade fans (dual fan module) installed in mid tray
Up to twelve high performance (HPR) platinum
grade fans installed on the front of the system
All are hot swap fans
Cooling options
Air cooling
Slots
GPU Options
8x PCIe Gen 5 x16 DW-FHFL up to 600W or
16x PCIe Gen 5 x16 SW-FHFL up to 75W
Form Factor
Form Factor
4U Rack Server
Ports
Network Options
1 x OCP NIC card 3.0 (optional)
Front Ports
1 x USB 2.0 Type-A (optional)
1 x Mini-Display port (optional)
1 x USB 2.0 Type-C dual mode
(Host/iDRAC Direct port)
Rear Ports
1 x Dedicated iDRAC/BMC Direct Ethernet port
2 x USB 3.1 Type A port
1 x VGA
Internal Port
1 x USB 3.1 Type-A
