High Density Server Storage Solutions JBOD, NAS...

Storage

Servers / Storage Solutions

ASA's storage solutions, powered by Intel® Xeon® Scalable processors, are designed to meet the requirements of enterprise data centers and high performance applications with new levels of storage performance, scalability and reliability aimed to provide exceptionally high storage density.

Rack Units Processor Chipset Max Memory # Hard Drives HDD Type Features
Displaying 8 of 8 Items

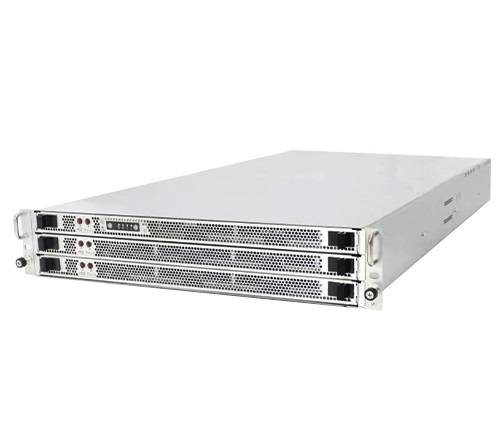

2U Server - ASA2012-EP-R
2U 24+6-Bay AMD Epyc Storage Server

Starting configuration

(Contact Us)
  • AMD EPYC 7002/7003 Processor
  • 8 x DIMM slots
    DDR4 2666/2400/2133 RDIMM/LRDIMM
  • Front: 24 x 3.5"/2.5" SATA/SAS drive bays
    Rear: 6 x NVMe drive bays
  • 600W 1+1 redundant power supply
  • 3 PCIe 4.0 x8
    4 PCIe 4.0 x16
2U Server - ASA2111-X-R
2U 12-Bay Intel Xeon Server
  • 2U Server
    3rd Gen Intel® Xeon® Scalable Processors (Ice Lake)
  • Total 16+16 DIMM slots (2DPC)
    Up to 12TB 3DS ECC RDIMM/LRDIMM
    Intel® Optane™ Persistent Memory 200 Series support
  • 12 x 3.5” hot-swap (Gen4 NVMe, 3.5" or 2.5" SATA)
    2 x 2.5" (rear)
    2 x M.2 (NGFF)/M-Key/2280
  • 1200W/1600W 1+1 redundant power supply 80+ Platinum
  • 4 PCIe 4.0 x8
    2 PCIe 4.0 x16
    1 OCP NIC 3.0
3U Server - ASA3102-X2-R
3U Dual Socket Rackmount Storage Server

Starting configuration

$3,541.00
  • 3U Server
    Dual Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)
  • 16 DIMMs; up to 4TB 3DS ECC
    DDR4-2933MHz† RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM
  • 16 Hot-swap 3.5" SAS3/SATA3
    drive bays; 2 hot-swap 2.5"
    SATA3 drive bays (rear),
    2 M.2 NVMe,
    Expander based backplane
  • 1200W Redundant Power Supplies
    Titanium Level (96%)
  • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8
    (slot 2 & 3 occupied by controller
    and JBOD expansion port)
3U Server - ASA3103-X2-R
3U Dual Socket Rackmount Server SAS3

Starting configuration

$3,417.00
  • 3U Server
    Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
  • 16 Hot-swap 3.5" SAS3/SATA3 drive bays; 2 hot-swap 2.5" SATA3 drive bays (rear), 2 M.2 NVMe, Expander based backplane
  • 1200W Redundant Power Supplies Titanium Level (96%)
  • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8 (slot 2 & 3 occupied by controller and JBOD expansion port)
ASA3103-X2O-S2-R
3U Storage Server

Starting configuration

$2,134.00
  • 3U Storage Server
    Dual Socket LGA2011
    Intel® Xeon® processor E5-2600 v3/v4 family
  • 16 DIMM Sockets
    Supports up to 2TB DDR4 - 2400MHz ECC Registered Memory
  • 16x 3.5" Hot-Swap SATA Drives
  • 1U 1280W Redundant Platinum 95%+ Super Quiet Power Supply with PMbus
  • 3 (x16) PCI-E 3.0,
    3 (x8) PCI-E 3.0
3U Server - ASA3104-X2-R
3U Dual Socket Rackmount Server SAS3 IT

Starting configuration

$3,099.00
  • 3U Server
    Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
  • 16 Hot-swap 3.5" SAS3/SATA3 drive bays; 2 hot-swap 2.5" SATA3 drive bays (rear), 2 M.2 NVMe, Expander based backplane
  • 1200W Redundant Power Supplies Titanium Level (96%)
  • 3 PCI-E 3.0 x16
    4 PCI-E 3.0 x8
    (slot 2 & 3 occupied by controller and JBOD expansion port)
ASA4101-X2-R
4U 102-Bay Dual Intel Xeon Storage Server
  • Intel® Xeon® Scalable Processors (Cascade Lake Refresh/Cascade Lake/Skylake)
  • 6 x memory channels per CPU
    2 channels with 2DPC + 4 channels with 1DPC
    DDR4 2933/2666/2400MHz RDIMM/LRDIMM
    Intel® Optane™ DC Persistent Memory (Apache Pass) support
  • Supports 102 hot swap 3.5” SAS drive bays
  • 2000W 1+1 redundant power supply 80+ Platinum
  • 2 x PCIe Gen3 slots x16
    1 x OCP Mezz. V2.0 supports PCIe Gen3 x16

    *OCP & PCIe slots rear I/O plate are BTO reserved by factory option.
ASA4102-EP-R
AMD Epyc 4U Storage Server 70-Bay
  • AMD EPYC 7003 Processor
  • 8 x RDIMM slots, DDR4 2933/2666/2400 RDIMM/LRDIMM
  • Front: 60 x 3.5"/2.5" SATA/SAS drive bays
    Rear: 10 x NVMe drive bays
  • 600W 1+1 redundant power supply 80+ Platinum
  • 7 PCIe 4.0 x16
