2U 24+6-Bay AMD Epyc Storage Server | ASA Computers

Storage

2U 24+6-Bay AMD Epyc Storage Server

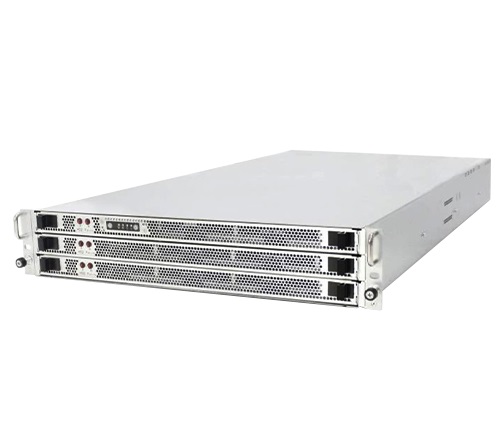

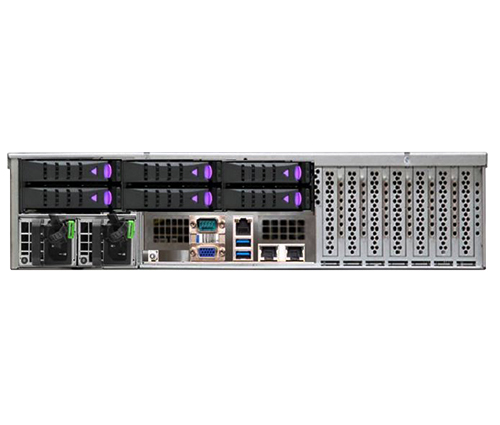

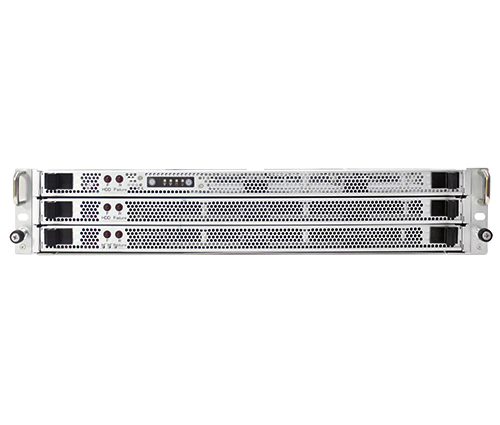

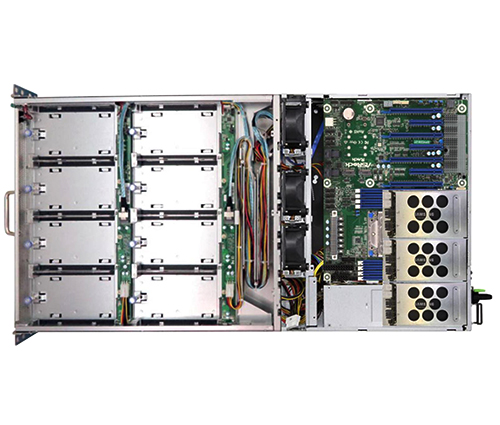

ASA2012-EP-R front ASA2012-EP-R rear ASA2012-EP-R top ASA2012-EP-R angle ASA2012-EP-R open

2U 24+6-Bay AMD Epyc Storage Server

SKU: ASA2012-EP-R
  • 2U 24 x 3.5"/2.5" hot-swappable SATA/SAS drive bays in the front + 6 x hot-swappable NVMe drive bays in the rear
  • AMD EPYC 7002/7003 processor
  • 8 x DIMM slots, DDR4 2666/2400/2133 (L)RDIMM
  • 7 PCIe slots: 4 PCIe x16 + 3 PCIe x8
  • Hot-swappable PWM cooling fans
  • Patented tool-less 3 tier access to drive bays
Applications:
  • Hyperscale cloud data center
  • AI Analytics
  • High performance computing
Features

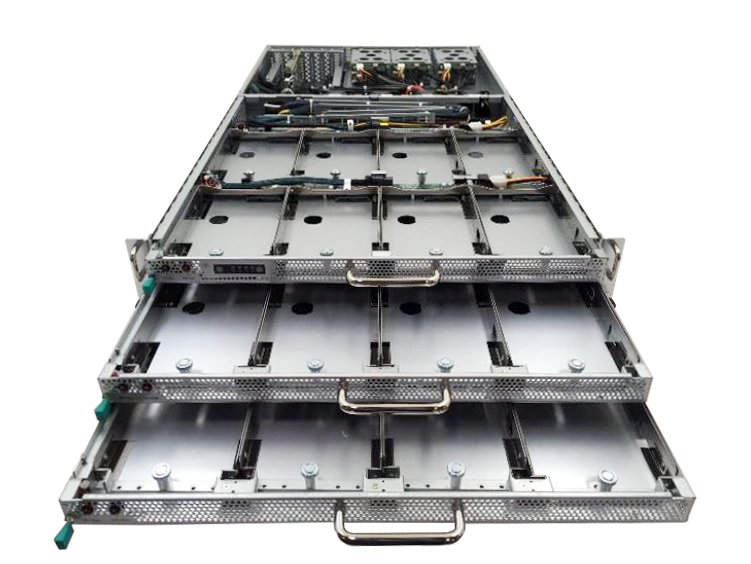

CONVENIENT 3-TIER HOT-SWAPPABLE DRIVE BAY ACCESS

This patented 3-tier server design allows for easy access to 8-drive bays at any time, power on or off. With additional innovative tool-less design to switch out the drives, your IT team can quickly insert or replace the drives under 30 secs or less per drive for maintenance.

DESIGNED TO MAXIMIZE AIR FLOW

The perforated design for the 2U 3-tier server ensures proper air flow inside the chassis, maximizes heat dissipation and keeps the drives running at optimal temperature.

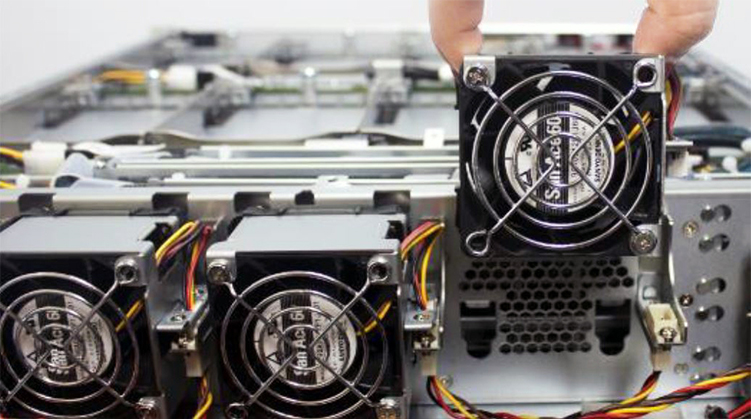

PWM FANS

  • 4x 6038 PWM cooling fans provide effective front to rear air flow system cooling.
  • Shock insulation dampers with exceptional HDD RVI performance.
  • Fans are hot-swappable on a table top environment in standalone capacity.

System Configuration

  • CPU
    AMD EPYC 7002/7003 Processor
  • Memory
    8 x DIMM slots, DDR4 2666/2400/2133 RDIMM/LRDIMM
  • Drive Bays
    Front: 24 x 3.5"/2.5" hot-swappable SATA/SAS drive bays + Rear: 6 x hot-swappable NVMe drive bays
  • PCIe Slot 1
    PCIe 4.0 x 8
  • PCIe Slot 2
    PCIe 4.0 x 8
  • PCIe Slot 3
    PCIe 4.0 x 8
  • PCIe Slot 4
    PCIe 4.0 x 16
  • PCIe Slot 5
    PCIe 4.0 x 16
  • PCIe Slot 6
    PCIe 4.0 x 16
  • PCIe Slot 7
    PCIe 4.0 x 16
  • Power Supply
    600W 1+1 redundant power supply
  • Management (IPMI)
    Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
  • Note
    For additional warranty options, including international coverage, please contact our Sales department at sales@asacomputers.com or 650-230-8000.
