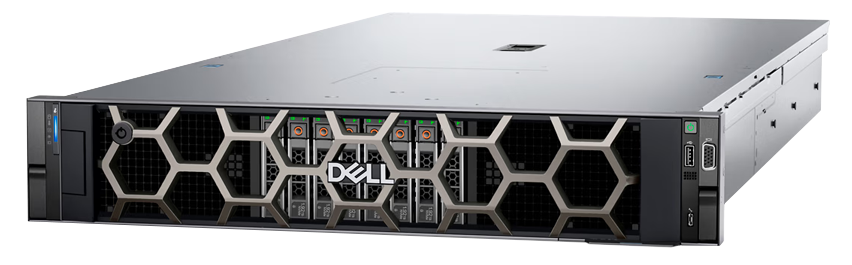

Dell PowerEdge R760xa GPU Server

Dell PowerEdge R760xa GPU Server

Scale as you grow with this high-performance air-cooled server engineered for a wide range of applications like AI-ML/DL training and inferencing, advanced analytics and VDI workloads.

2U dual socket GPU server
2x 5th Gen Intel® Xeon® Scalable processors
Up to 4x double-wide or 8x single-wide NVIDIA PCIe GPUs
Up to 6 x E3.S Gen5 NVMe, max 46.08 TB
Up to 4x PCIe Gen5 slots

Request Info

Features
Tech Specs & Customization

Autonomous Infrastructure

Tame the complexity of your IT environment with Dell Technologies OpenManage systems management portfolio which uses tools and solutions to discover, deploy, monitor, manage, update and secure your PowerEdge infrastructure.

Dell PowerEdge R760XA Rack Server Software UI

Cyber Resilient Architecture

Ensure protection at every stage of the product lifecycle with the PowerEdge cyber-resilient architecture, designed to support your journey toward a Zero Trust security strategy.

Tech Specs & Customization

Processor

Up to 2 x 5th Generation Intel Xeon Scalable processor with up to 64 cores per processor and with optional Intel^® QuickAssist Technology

Operating Systems

Supported Operating Systems

Canonical® Ubuntu® Server LTS
Microsoft® Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server

VMware® ESXi®

Bezel

Optional LCD bezel or security bezel

Dimensions

Width

482.0mm (18.97")

Depth (for rear I/O configuration)

946.73mm (37.27") with bezel
932.89mm (36.73") without bezel

Height

86.8mm (3.41")

Memory

32 DDR5 DIMM slots, supports RDIMM 8 TB max,

speeds up to 5600 MT/s

on the 5th Generation Intel^® Xeon Scalable processor

Management

Embedded / At-the-Server

iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish

iDRAC Service Module (iSM)

Quick Sync 2 wireless module

Power Supplies

Hot Swap Power Supplies

2800 W Titanium 200-240 VAC or 240 HVDC
2400 W Platinum 100-240 VAC or 240 HVDC

GPU

GPU Options

Up to 4 x 400 W DW PCIe x16 GPU cards
Up to 12 x 75 W SW PCIe x8 GPU cards

Security

Cryptographically signed firmware

Data at Rest Encryption (SEDs with local or external key mgmt)

Secure Boot

Secured Component Verification (Hardware integrity check)

Secure Erase

Silicon Root of Trust

System Lockdown (requires iDRAC9 Enterprise or Datacenter)

TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Storage Controllers

Internal Boot: Boot Optimized Storage Subsystem
(BOSS-N1 DC-MHS): HWRAID 2 x M.2 NVMe SSDs,
USB

Software RAID: S160

Slots

PCIe

Up to 12 PCIe slots
Internal Ports: 1 x USB 3.0 (optional)

Form Factor

2U Rack Server

Storage

Front Bays

Up to 6 x 2.5-inch NVMe, max 92.16 TB
Up to 8 x 2.5-inch SAS/SATA/NVMe, max 122.88 TB

Ports

Front Ports

1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0

1 x VGA

Rear Ports

1 x Dedicated iDRAC Ethernet port
1 x USB 2.0

1 x USB 3.0

1 x Serial (optional)

1 x VGA (optional for Direct Liquid Cooling configuration)

Internal Ports

1 x USB 3.0 (optional)
