Ultrastar Data60 Hybrid Storage Platform

The 60-Bay Next-Generation Hybrid Platform for Software-Defined Storage
ULTRASTAR DATA60 HYBRID STORAGE PLATFORM

OVERVIEW

Designed for High Density and Flexibility

The Ultrastar Data60 hybrid storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems. The compact, efficient form factor provides the flexibility to specify the HDD and SSD combinations for balancing capacity, performance, and cost.

A flash data acceleration tier can be enabled to serve both fast data and big data applications from a single platform. The Ultrastar Data60 addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, as well as resellers/integrators requiring dense, shared HDD or hybrid storage.

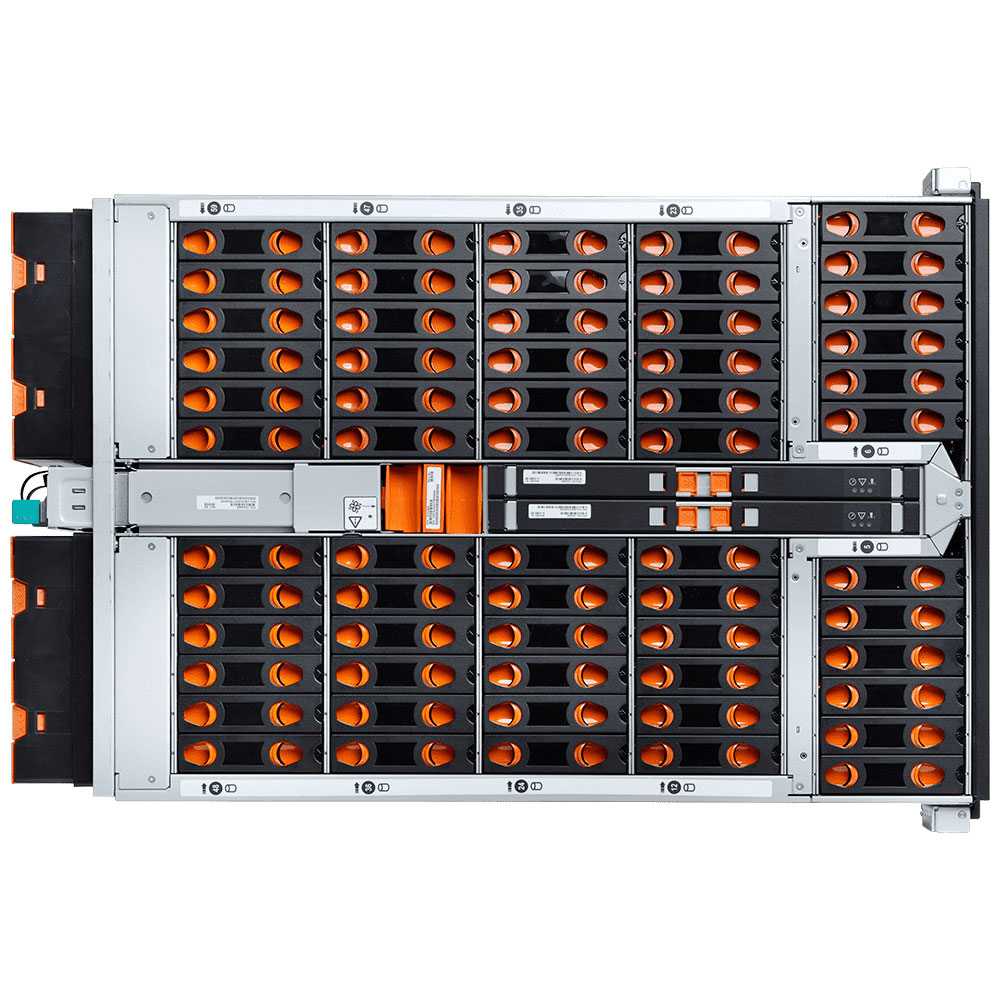

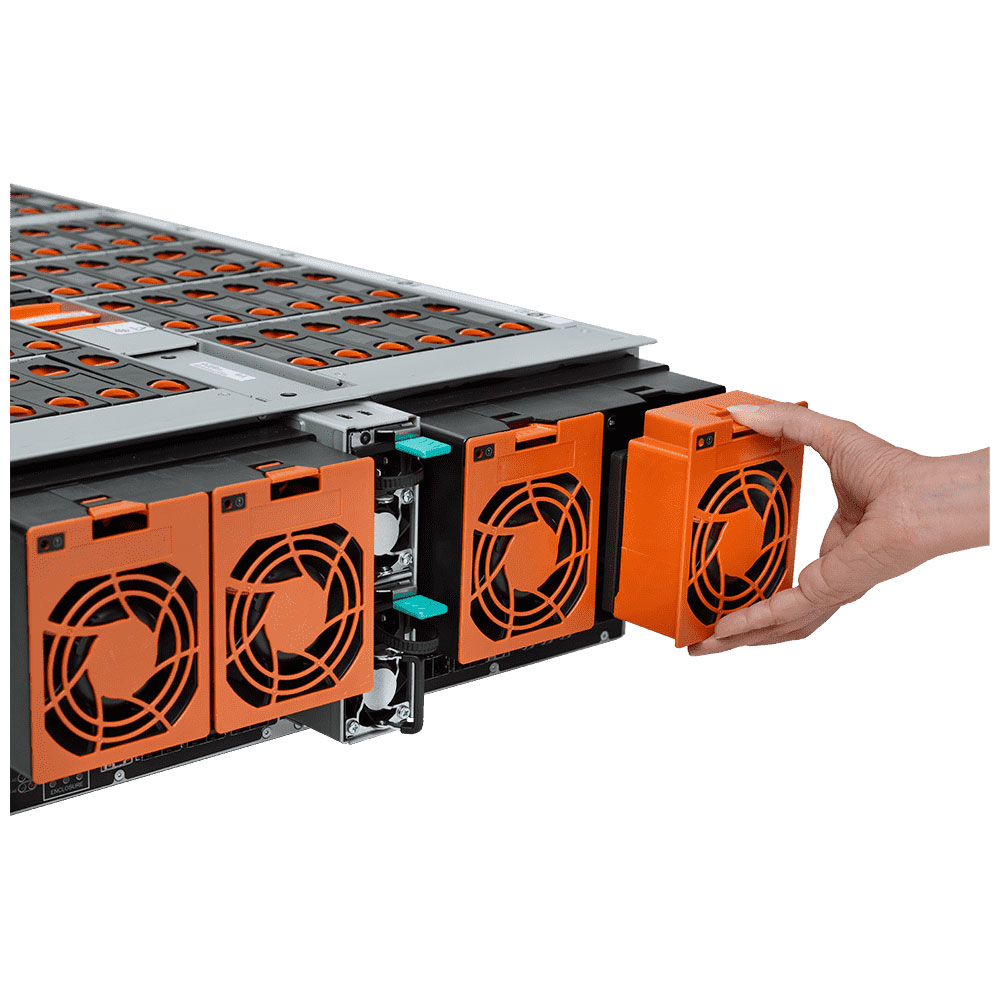

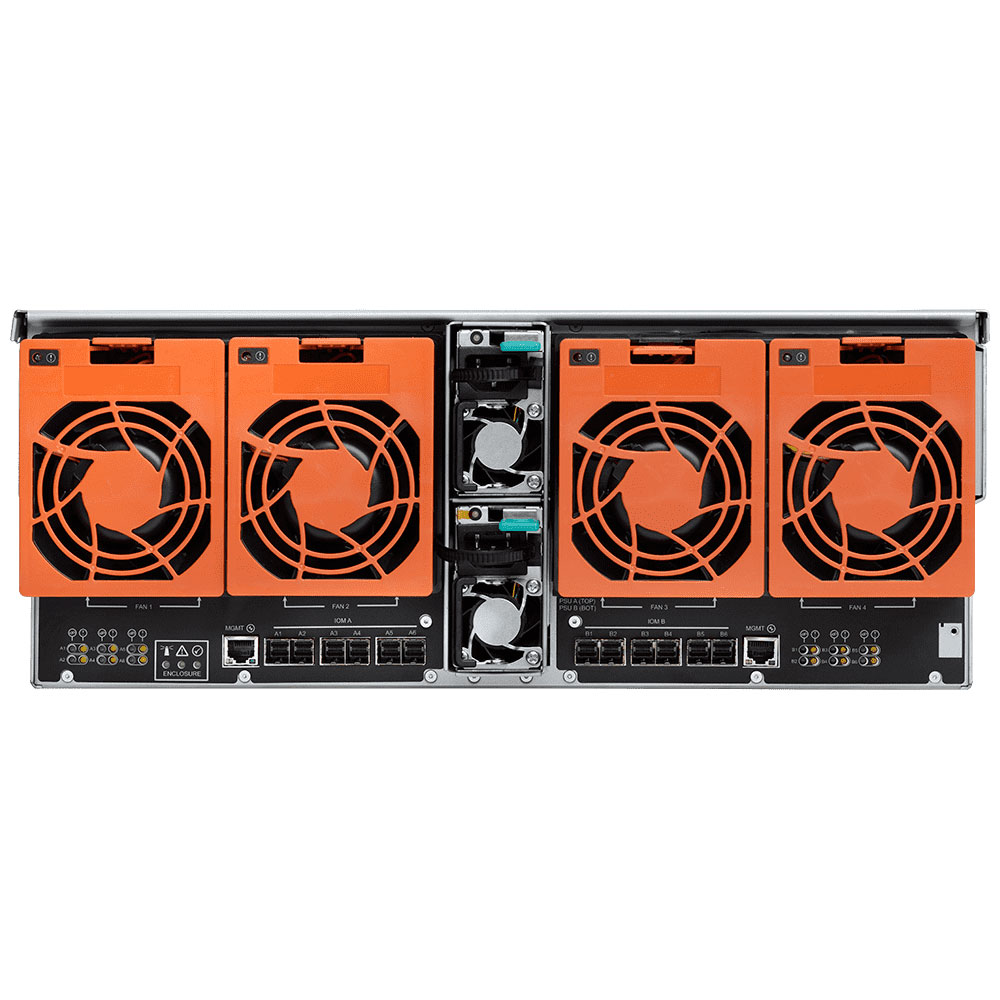

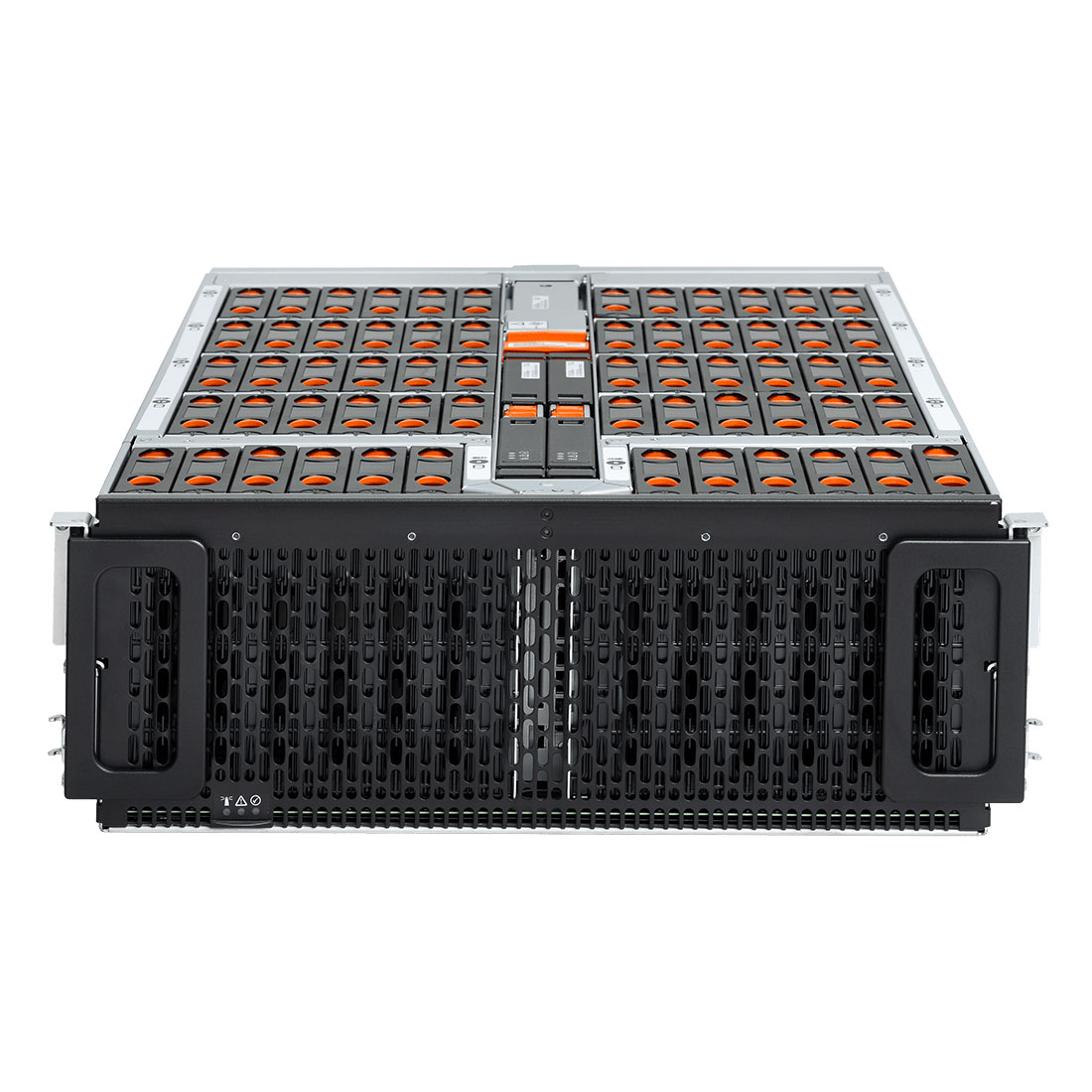

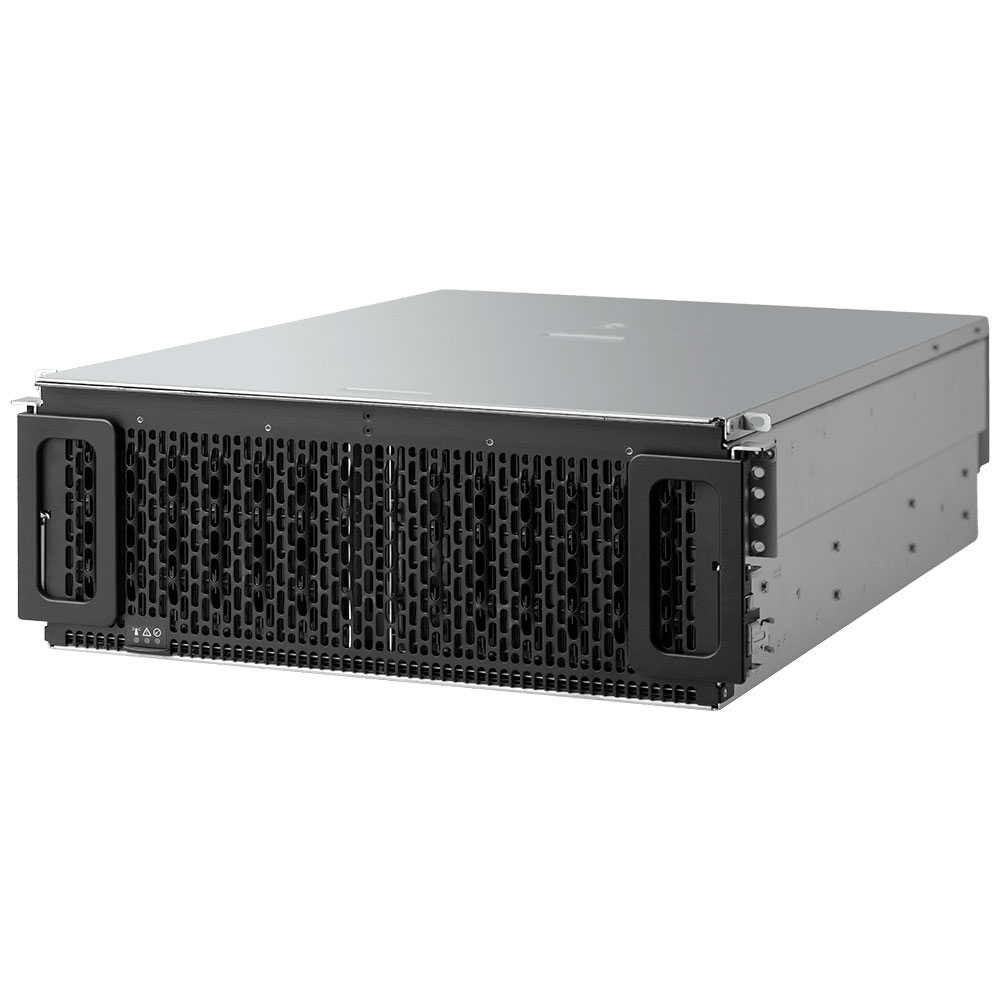

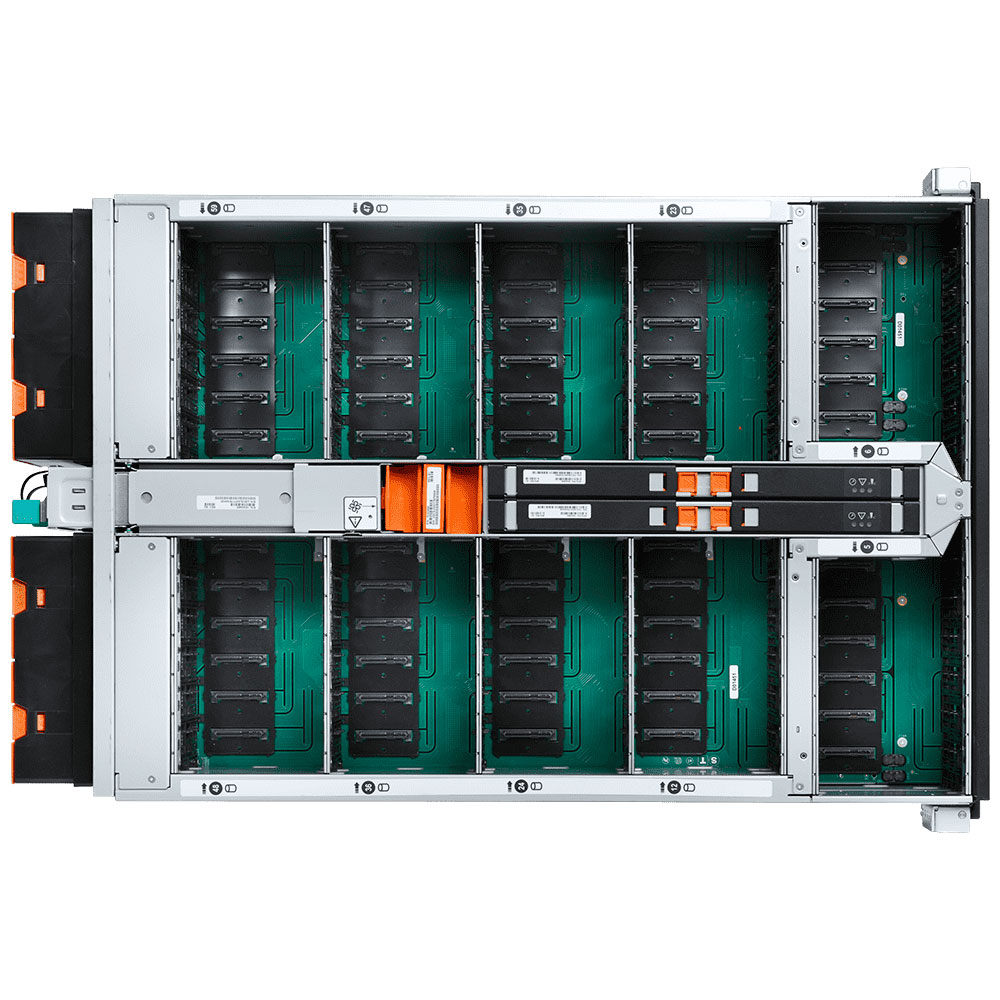

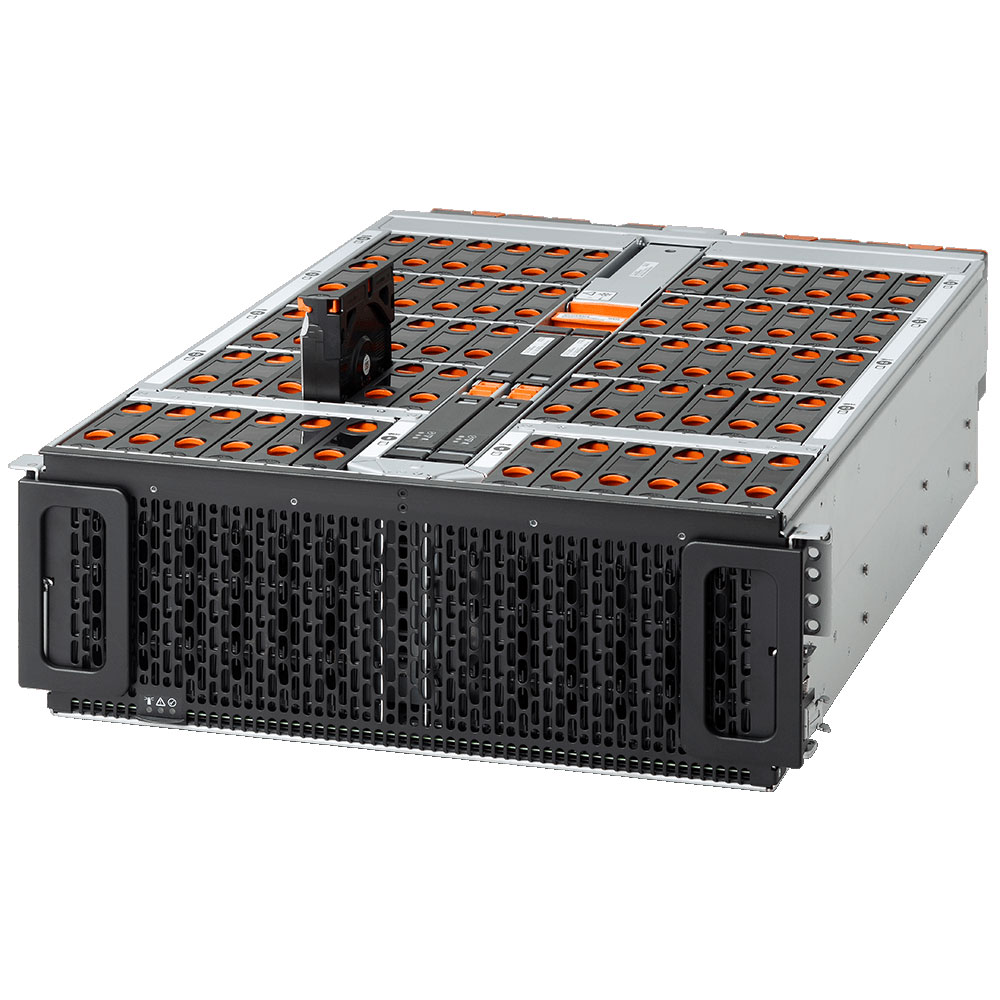

product-hero-image-ultrastar-data60-hybrid-storage-platform-western-digital-main ultrastar-data60-hybrid-storage-platform-back-1-western-digital ultrastar-data60-hybrid-storage-platform-back-2-western-digital ultrastar-data60-hybrid-storage-platform-front-1-western-digital ultrastar-data60-hybrid-storage-platform-power-supply-western-digital ultrastar-data60-hybrid-storage-platform-right-1-western-digital ultrastar-data60-hybrid-storage-platform-right-2-western-digital ultrastar-data60-hybrid-storage-platform-top-1-western-digital ultrastar-data60-hybrid-storage-platform-top-2-western-digital

Highlights

  • Up to 60 Ultrastar DC HC550 HDDs (SAS or SATA)
  • Up to 1.08PB raw capacity in 4U
  • Hybrid support for data acceleration tier with SSDs (SAS or SATA) in up to 24 of 60 drive slots
  • Dual-port SAS for high availability or single-port SATA for low cost
  • Enterprise-grade redundant and hot-swappable PSUs, I/O modules, and fans
  • 5-year limited warranty

Applications and Workload

  • SDS Environments
  • Big Data
  • Private Cloud
  • Data Analytics
  • Cloud Infrastructure

Request a quick Western Digital's Quote

To receive a quick quote for your desired products please call us at +1 650-320-8000.
You can also email us at 'sales@asacomputers.com.com' or simply click on the 'Request Quote' button.
Request Quote

Specifications

Max. Drives
60 x 3.5" drive bays
Up to 24 can be SAS or SATA SSD
Drive Interface
12 Gb/s SAS
6 Gb/s SATA
Available Drive Capacities
HDD up to 18TB
SSD up to 15.36TB
Host Interface
Dual redundant I/O Modules (IOM)
6 Mini-SAS HD ports per IOM
Management
SCSI Enclosure Services
Redfish (out of band, via RJ45)
Physical Dimensions
Height: 175mm (6.89")
Width: 447mm (17.61")
Depth: 712mm (28.03")
Depth in Rack: Max of 890mm (35.04") w/ dual CMA—includes 24 SAS cables
Weight
Product without drives: 27.3kg (60lbs)
Product with 60 HDDs: 79.4kg (175lbs)
Power Dual 1600W, 80+ Platinum
Cooling
4 main enclosure fans, front-to-rear system cooling with zero-loss backflow prevention
1 I/O module fan
Dual PSUs with built-in fans
LED Indicators
Front/Rear: Power, ID, Fault
Drive: Activity, Fault

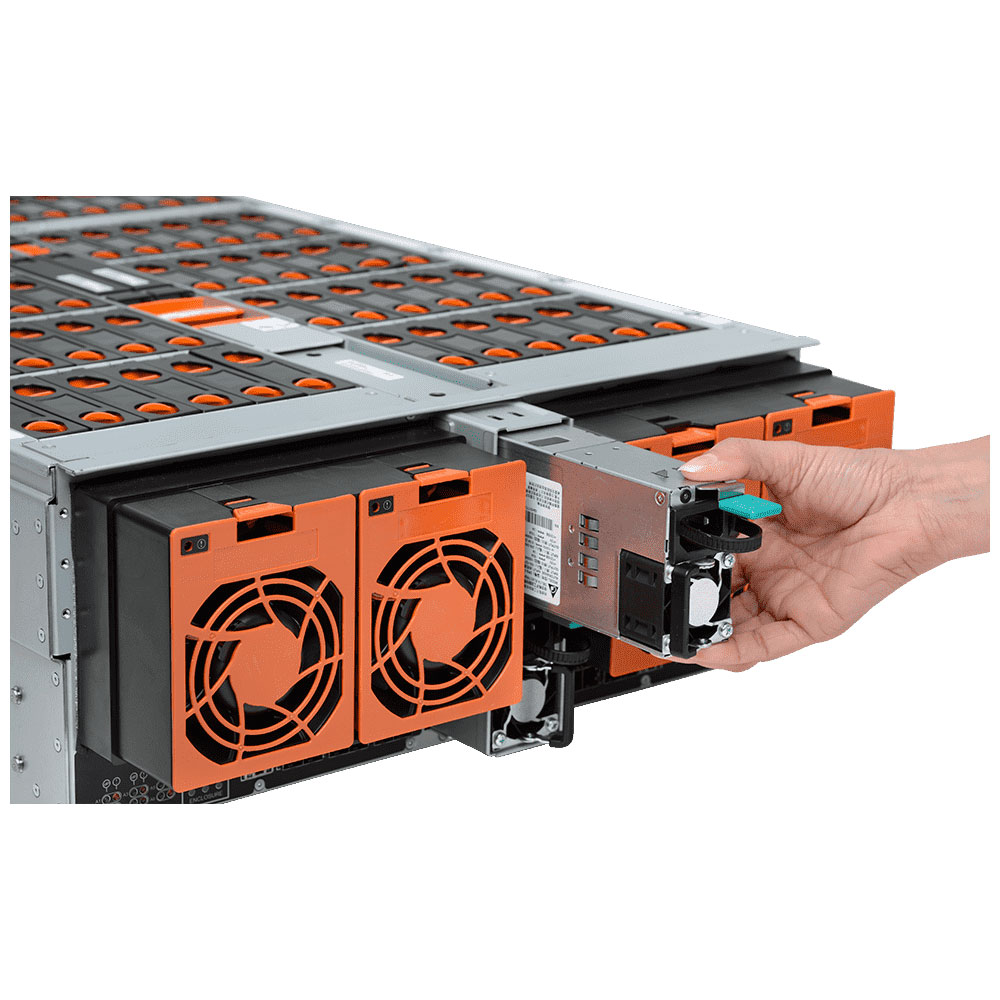

Serviceability Cable-free hot-swappable IOM, power supply, fans, and drives
Environmental
Operating Temperature: 5 to 40°C
Non-op Temperature: -40 to 60°C
Humidity: 5% to 85% relative humidity
Operating Altitude: 40°C @ 3,000ft
Sound Power: < 7.2Bels @ 23±2°C
