Highly Scalable Server/Storage Platforms
AIC is a leading provider of both standard off-the-shelf and OEM/ODM server and storage solutions. With over 25 years of experience in mechanical, electronic, system-level engineering, as well as a dedication to innovation and customer satisfaction, AIC's products are highly flexible and customizable to any form factor.
AIC Logo

Product Highlights

1U 4-Bay Storage Server

The SB101-A6 supports dual 3rd Gen Intel® Xeon® Scalable processors, 4 x 3.5" hot-swappable and 2x 2.5" internal OS HDD/SSD bays to provide high storage density.

  • Supports 3rd Gen. Intel® Xeon® Scalable processors (codename Ice Lake)
  • Onboard Baseboard Management Controller for system management and IPMI control
  • Front-to-back airflow and easy swap redundant fans to provide optimal thermal conditions
  • Dedicated BMC management port
AIC SB101-A6-1 Storage Server top view

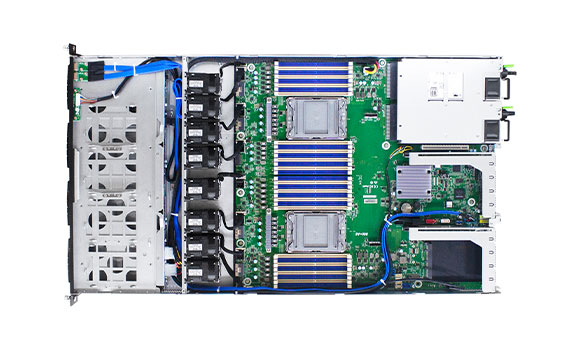

AIC SB101-A6-1 Storage Server board

Technical Specs

Processor Support
  • Intel® Ice Lake-SP Processors
  • Supports CPU TDP up to 270W
Chipset Support Intel® C621A series PCH
System Memory
  • DDR4 3200/2933/2666/2400 (1DPC/2DPC) MHz
  • Total 16+16 DIMM slots (2DPC))
  • Up to 12TB 3DS ECC RDIMM/LRDIMM
  • Intel® Optane™ Persistent Memory 200 Series support
Expansion Slots (PCIe 4.0)
  • 2 PCIe4.0 x16
  • 1 OCP NIC 3.0
Drive Bays
  • External : 3.5"/2.5" hot swap x 4 (6G SATA/12G SAS/ PCIe x4 NVMe)
  • Internal : 2 x 2.5" OS
Backplane 1 x 4-port SATA/SAS/NVMe backplane with 1 x SFF-8643 + 2x SFF-8654(Slimline 8i) connectors
Dimensions (W x D x H)

  • mm: 438 x 800 x 43.5
  • inches: 17.2 x 31.5 x 1.7

4U 102-Bay Ultra-Density Storage Server

The SB405-VL top-loading storage server includes built-in system MB, dual 2nd Gen Intel® Xeon® Scalable processors. Its flexible PCIe 3.0 extension design for SAS HBA / SAS RAID / Ethernet / FC cards with 2x PCIe X16 slots and 1xOCP Mezzanine provide significant I/O performance. Plus front-to-back airflow and hot swap redundant fans provide optimal thermal conditions.

  • Supports 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake Refresh/Cascade Lake/Skylake)
  • Flexible I/O usage with MAX I/O to support up to 1 OCP x16 Mezzanine card V2.0
  • Onboard Baseboard Management Controller for system management and IPMI control
  • Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions

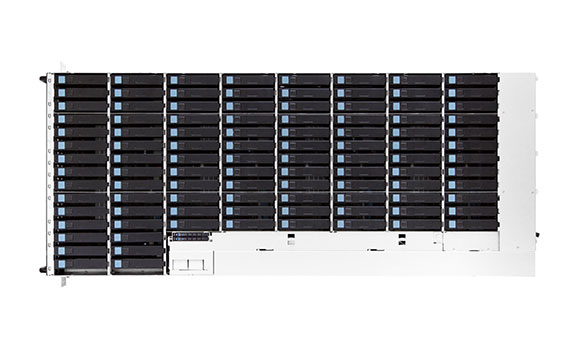

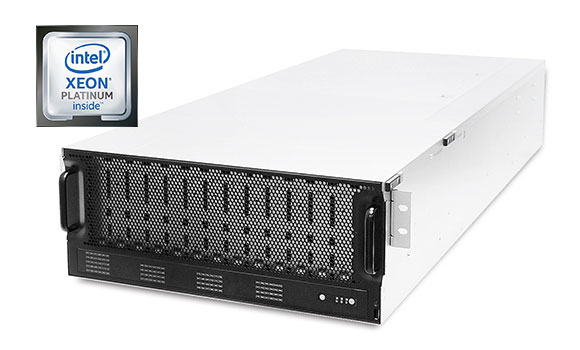

AIC SB405-VL Storage Server top view
AIC SB405-VL Storage Server board

Technical Specs

Processor Support
  • Intel® Xeon® Scalable Processors (Cascade Lake Refresh/Cascade Lake/Skylake)
  • Support CPU TDP up to 150W
Chipset Support Intel® Lewisburg C620 series PCH
System Memory
  • 6 x memory channels per CPU, 2 channels with 2DPC + 4 channels with 1DPC
  • 16 x DIMM slots support: DDR4 2933/2666/2400MHz RDIMM/LRDIMM
  • Intel® Optane™ DC Persistent Memory (Apache Pass) support
Expansion Slots (PCIe 3.0)
  • 2 x PCIe Gen3 slots
  • 1 x OCP Mezz. V2.0 supports PCIe Gen3 x16
  • 1 x high-density connector supports 16 + 8 lanes of PCIe Gen3
Drive Bays Internal:
  • 102 x 3.5" hot swap (Top-Loading)
  • 2 x 2.5" hot swap (7mm, Top-Loading)
  • 2 x M.2(NGFF) / M-Key / 2280 / Supports SATA or PCIe x2
Backplane
  • 3 x 24-port 12Gb SAS backplanes with 36-PHY expander and 2 x 8i SAS slimline connectors
  • 1 x 30-port 12Gb SAS backplane with 40-PHY expander and 2 x 8i SAS Slimline connectors
Dimensions (W x D x H)

  • mm: 434 x 1050 x 176
  • inches: 17.1 x 41.3 x 7

2U 4-Node Hybrid Storage Server

The HP201-AG multi-node HCI server that provides high compute density and high storage capacity and is optimized for hyper-converged applications. It comes with 24x 2.5" NVMe/SAS/SATA, 8x 2.5" SATA bays with support for 1x AMD® EPYC®

  • Supports AMD EPYC™ 7003/7002/7001 processor
  • Maximizing the use of the numbers of memory, add-on cards and drives in one single system
  • Onboard Baseboard Management Controller for system management and IPMI control
  • 3 x PCIe x16 extensions on each node
  • Front-to-back airflow and easy swap redundant fans to provide optimal thermal conditions

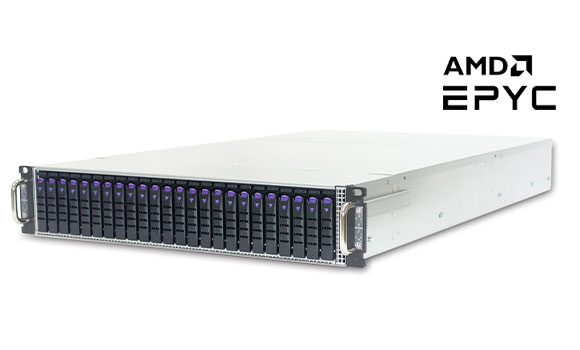

AIC HP201-AG Storage Server top view
AIC HP201-AG Storage Server rear view

Technical Specs

Processor Support
  • Single AMD EPYC™ 7003/7002/7001 processor
  • Supports CPU TDP up to 280W (Support by EPYC™ 7003 CPU)
Chipset Support AMD EPYC™ SOC
System Memory
  • DDR4 3200/2933MHz RDIMM/LRDIMM
  • Total 8 memory slots; 8 channels
  • Supports up to 2TB (support by EPYC™ 7003/7002 CPU)
  • Supports NVDIMM feature
Expansion Slots (PCIe 4.0)
  • 2 x16 slots (LP)
  • 1 x16 OCP Mezzanine V2.0
Drive Bays External:
24 x 2.5" hot-swap (6 x NVMe/SAS/SATA per node)

Internal:
  • 8 x 2.5" hot-swap(2 x SATA per node) (Option)
  • 2 x M.2(NGFF) / M-Key / 2280 / Supports SATA or PCIe x2
Backplane 1 x 24-port NVMe/SAS/SATA backplane with high-density connectors to bridge riser board
Dimensions (W x D x H)

  • mm: 438 x 780 x 87.5
  • inches: 17.2 x 30.7 x 3.5

4U 108-Bay 12Gb/s SAS JBOD

Ideal for high-availability storage and high-performance appliances, the 4U 108-bay 12Gb/s SAS JBOD supports 108 x 3.5" drives with single or dual expanders.

  • Intelligent Enclosure Management
  • Individual drive power management
  • Hot swap design for easy maintenance and management
  • Enclosure Cable Management Kit
  • Tool-less drive trays

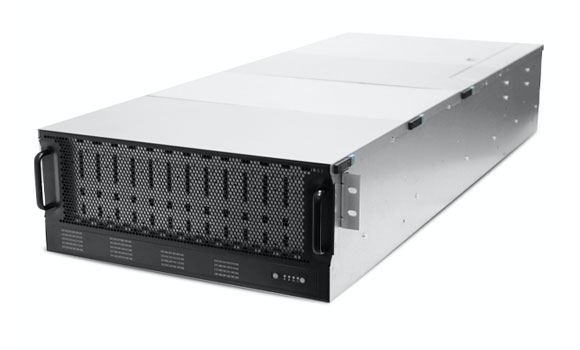

AIC J4108-01 Storage Server top view

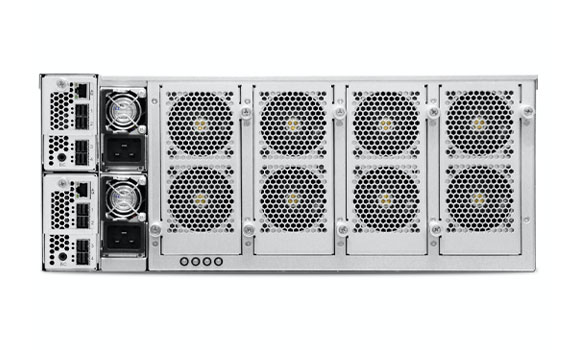

AIC J4108-01 Storage Server rear view

Technical Specs

Drive Supported Drive Interface :
  • 12Gb & 6Gb SAS if using dual expanders
  • 12Gb & 6Gb SAS/SATA if using single expander
Form Factor: 3.5"
General Number of Expander: Single/Dual
Expander Chip: Broadcom SAS35X48
Host/Expansion Interface: 4 x Mini SAS HD (SFF-8644) per expander module
Electrical & Environment AC Input: 200~240V,50/60Hz,15A
Operating Environment:
  • Temperature 0°C to 35°C
  • Relative humidity 20% to 80%
Non-operating Environment:
  • Temperature -20°C to 60°C
  • Relative humidity 10% to 90%
Hot-swap & Redundancy Disk Drive: 108 bays

Cooling:
  • 8 x 60x56mm hot swap fans
  • 1 x 40x56mm fan per expander module

Power Supply: 2000W 1+1 hot swap redundant 80+ Platinum
Socket type: C20 (Power code type: C19)

Power Entry: Dual AC Inlet

Expander Modules: Dual expanders (option)
Physical Specification Dimensions (W x D x H):
  • mm:
434 x 1050 x 176
434 x 1273 x 176 (with CMA)
  • inches:
17 x 41 x 7
17 x 50 x 7 (with CMA)
