Overview
The ability to have high-performance, large capacity storage where you need it is critical in current times of edge use cases and the proliferation of multi-cloud, multi-datacenter infrastructures. Organizations that can leverage data center or cloud-like storage services even when a network connection may not be feasible, due to cost or poor connectivity, have a real advantage in getting the job done.
Ultrastar Transporter has the added benefit of being physically transportable, so not only can data be captured and managed locally, but it can be ported from one location to another, reducing the time to transfer large data sets from weeks or months to a matter of days.
Highlights
- High performance access and throughput with NVMe SSDs and dual-port 200GbE ethernet ports
- Huge capacity with up to 368TB1 of NVMe flash storage

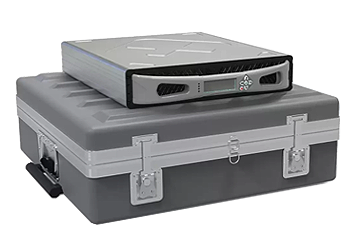

- Includes a transport case with wheels for easy transfer from one location to another
- Security features include FIPS 140-2 compliant TPM 2.0
- Quiet operation with internal fan location and active cooling management
Applications and Workloads
- Geophysical and Seismic Exploration
- Remote research
- Government, Military
- Cloud Providers - IaaS and data transport ingest
- Security-Specialized System Integrators
Specifications
| Form Factor | 2U with Carrying Case |
| Power Supply | 1300W Titanium AC/240 HVDC |
| PCIe | 6x PCIe x16 |
| Processor | Intel® Xeon® 4310 2.1G 12C/24T |
| Memory2 | 128GiB DDR4 RDIMM |
| Storage3 | 368TB Enterprise NVMe |
| Security Features | TPM: Version 2, FIPS 140-2 Physical: Tamper Evident, level 2 |
| Boot Drives | 2x 2TB SN740 NVMe RAID1 |
| Embedded NIC | 2 x 10 GbE RJ45+ LOM |
| Environmental | Operating: 0°C to 43°C Non-op: -5°C - 63°C Altitude: 3050 m / 10k ft. |
|
Chassis Dimensions (Height x Width x Depth) |
86.6 x 482.6 x 400 mm
3.41" x 19" x 21" in |
| Weight | Maximum 14.96 kg / 33 lb |
| Warranty4 | 3 Year Limited Warranty |
