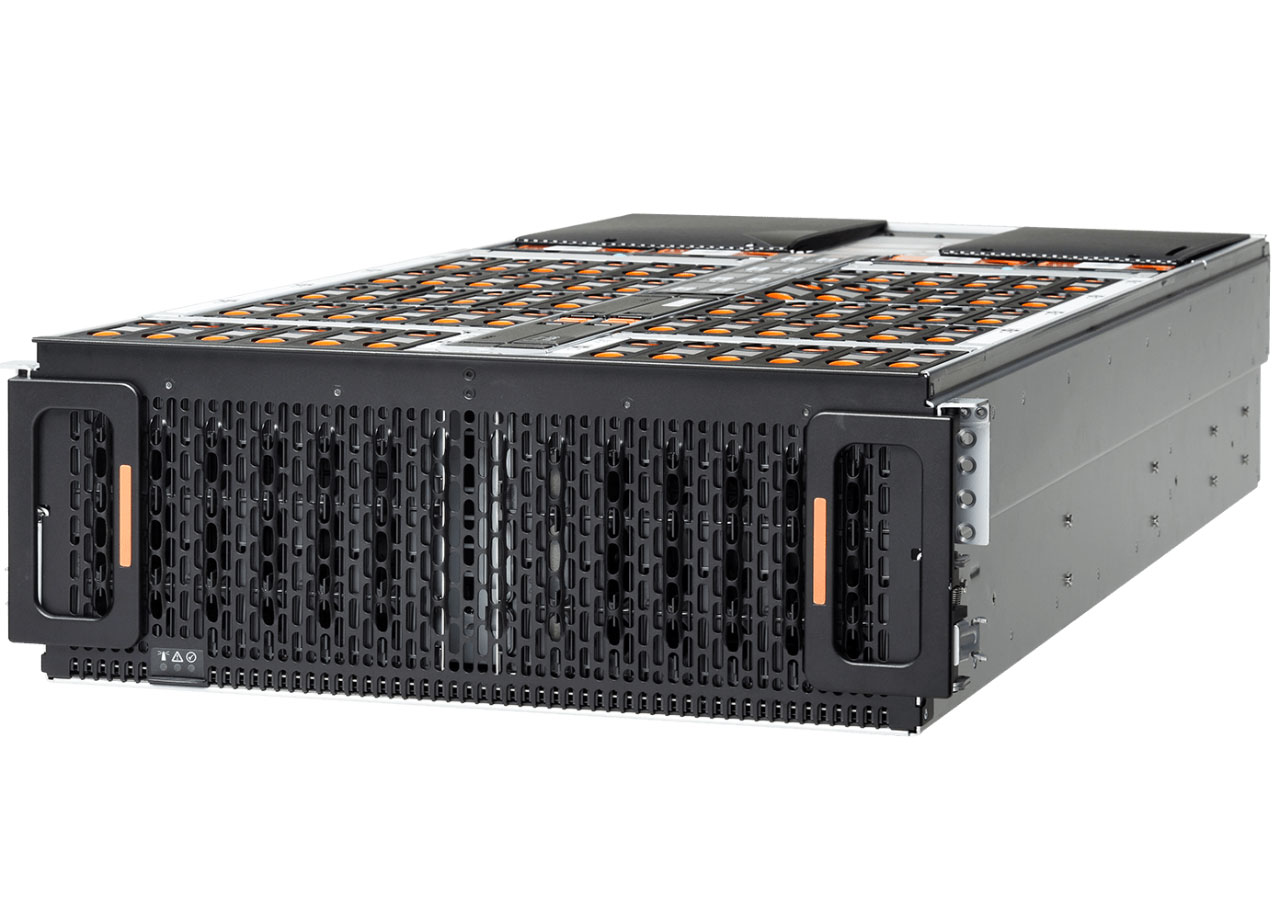

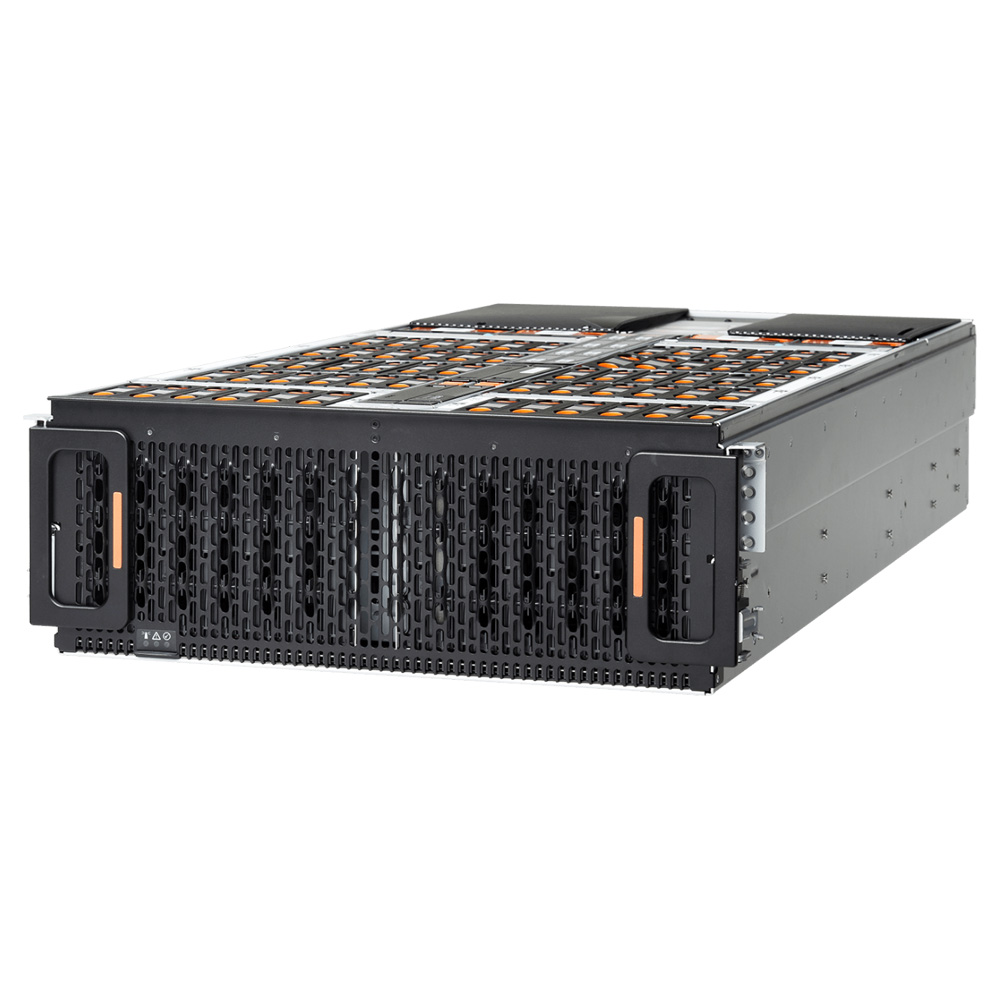

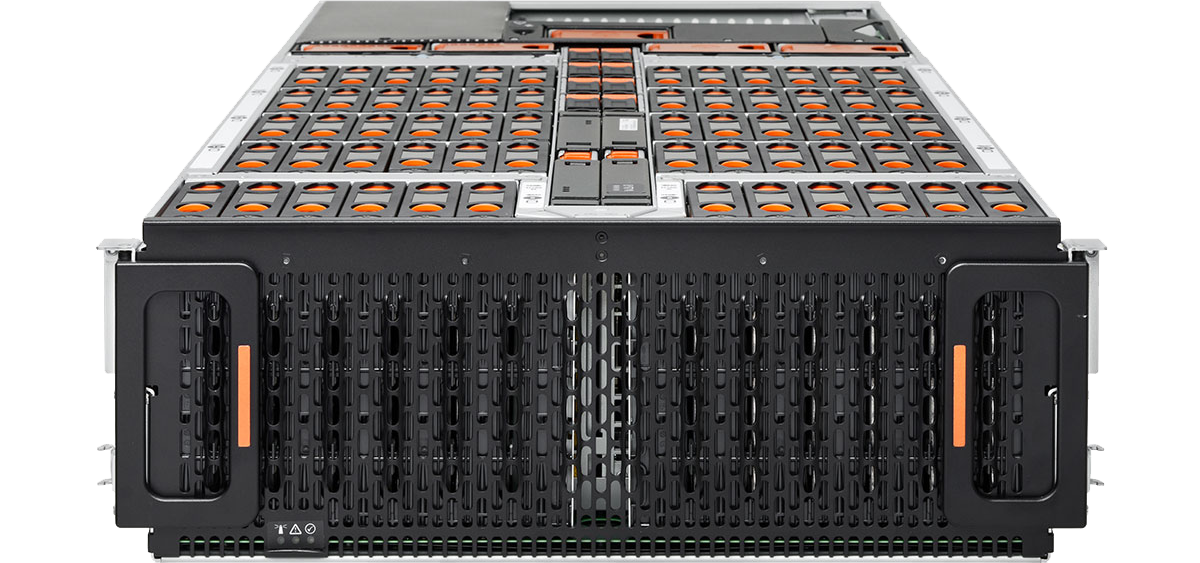

Ultrastar Serv60+8 Hybrid Storage Server

Performance-Optimized Hybrid Server for Software-Defined Storage
ULTRASTAR SERV60+8 HYBRID STORAGE SERVER

OVERVIEW

Designed for High Density and Flexibility

The Ultrastar Serv60+8 Hybrid Storage Server has dual high-performance Intel® Xeon® scalable processor-based CPUs to manage the demanding workloads in Software-Defined Storage (SDS) environments. With a choice of CPUs, memory, and drives, it balances performance with cost.

The Ultrastar Serv60+8 hybrid storage server addresses the demanding needs of large enterprise customers, OEMs, cloud service providers, as well as systems integrators that require dense, shared HDD or hybrid storage with compute included.

Compatibility Matrix

Compatibility Matrix - Ultrastar® Serv60+8

ultrastar-data60-hybrid-storage-platform-right-1-western-digital ultrastar-data60-hybrid-storage-platform-back-1-western-digital ultrastar-data60-hybrid-storage-platform-back-2-western-digital ultrastar-data60-hybrid-storage-platform-front-1-western-digital ultrastar-data60-hybrid-storage-platform-power-supply-western-digital ultrastar-data60-hybrid-storage-platform-right-2-western-digital ultrastar-data60-hybrid-storage-platform-top-2-western-digital ultrastar-serv608-hybrid-storage-server-western-digital ultrastar-data60-hybrid-storage-platform-top-1-western-digital

Highlights

  • High-performance Intel Xeon® scalable processor-based server
  • Choice of CPUs to match workloads
  • Up to 60 (SAS or SATA) HDDs plus up to 8 (SAS or SATA) SSDs
  • Hybrid support with up to 24 SSDs (SAS or SATA) in place of HDDs for a data acceleration tier
  • Up to 1.08PB raw capacity in a 4U enclosure

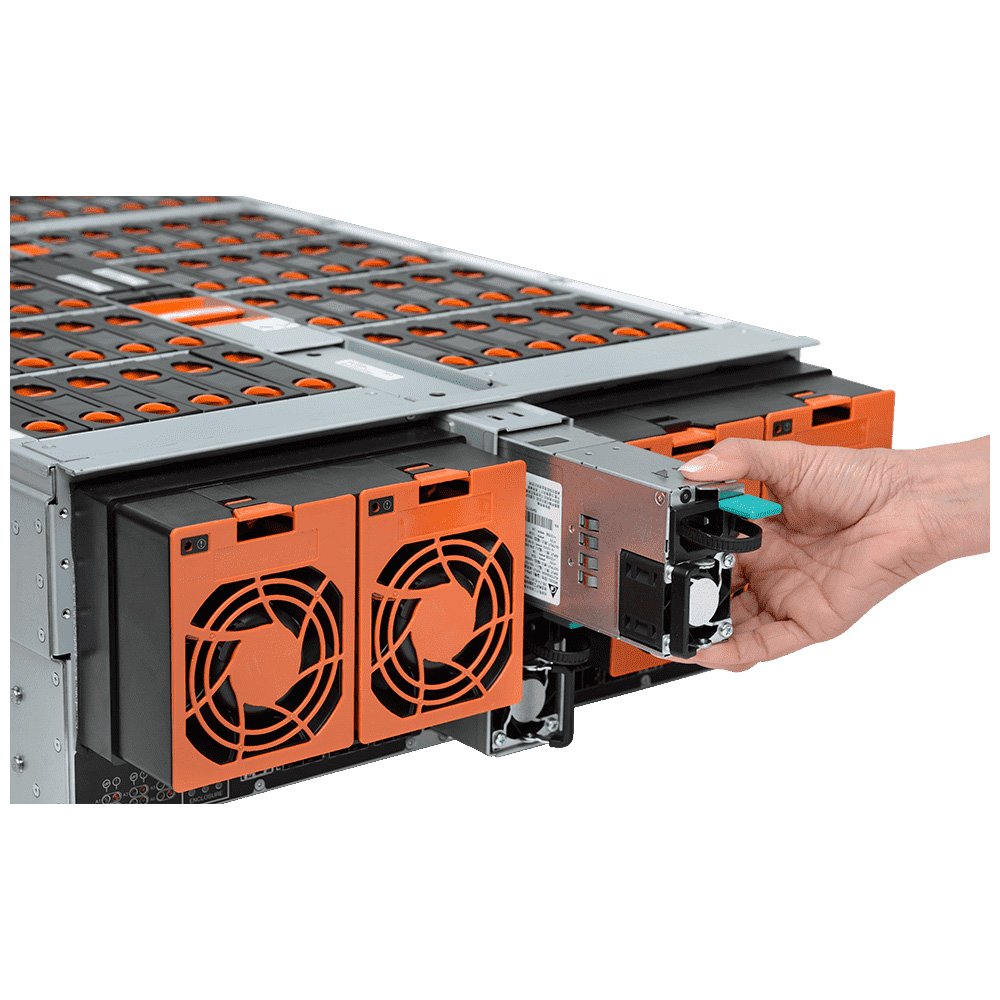

  • Enterprise-grade redundant and hot-swappable PSUs and fans
  • 5-year limited warranty

Applications and Workload

  • SDS Environments
  • High-Performance Computing
  • Private Cloud
  • Data Analytics
  • Virtualization (vSAN Node)
  • Streaming Video

Request a quick Western Digital's Quote

To receive a quick quote for your desired products please call us at +1 650-320-8000.
You can also email us at 'sales@asacomputers.com.com' or simply click on the 'Request Quote' button.
Request Quote

Specifications


Max. Drives
60 x 3.5" SAS or SATA drive slots of which up to 24 may be used for 2.5" SAS or SATA SSDs
Additionally, up to 8 x SAS, SATA or NVMe SSDs in center channel bays
Available CPU Choices
Up to two Intel Xeon Scalable processors, up to 24 cores per processor (165W TDP)
Memory
Up to 2TB 3DS LRDIMM or RDIMM (16x DDR4-2666Mhz DIMM Slots)
Expansion
6 PCIe Gen3 Slots
1 PCIe Gen3 x8 slot is occupied by the storage controller for the 60 bays
Networking
Dual 10GbaseT Ethernet (RJ45)
I/O
2 USB 2.0
2 USB 3.0
1 VGA, DB15
1 RJ45 BMC / Management
Management
Redfish (out of band via RJ45)
IPMI 2.0 system management
Physical Dimensions
Height: 175mm (6.89")
Width: 447mm (17.61")
Depth: 1099mm (43.27")
Depth in Rack: Max of 1177mm (46.34") w/CMA
Max. Weight
Product without drives: 40.82kg (90 lbs)
Product fully populated: 95.25kg (210 lbs)
Power
2000W AC, Redundant Power Supplies, (80+ Platinum)
Cooling
6 high efficient fans, front-to-rear system cooling with zero-loss backflow prevention
LED Indicator
Front and Back Panel: Power, ID, Fault
Fan and Drive: Fault
IO Module: Power, ID, Fault
Serviceability

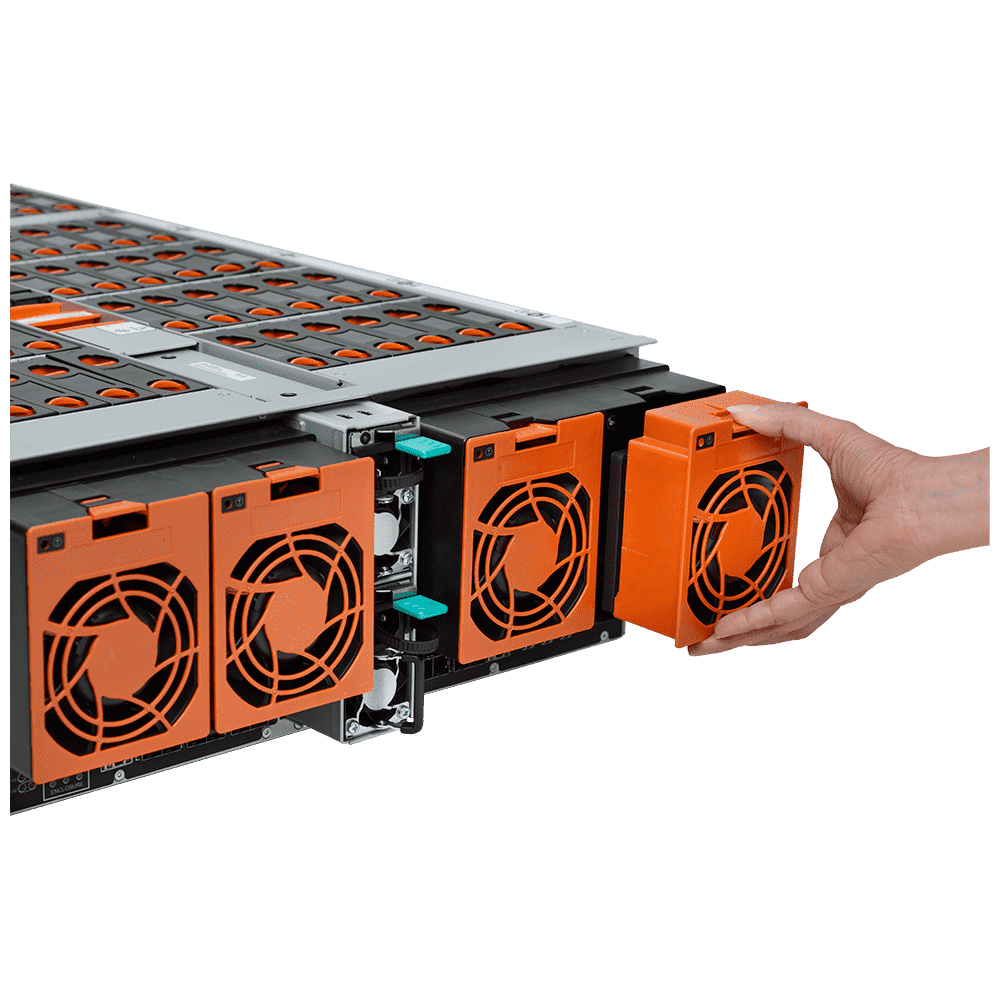

Hot-swappable power supplies, fans, IO module and drive modules
Environmental
Operating Temperature: 5 to 35°C
Non-op Temperature: -40 to 70°C
Humidity: 8% to 90% relative humidity
Non-op humidity: 8% to 90% relative humidity
Drive Support
HDD: 6TB to 18TB
SSD: 400GB to 15.36TB (SAS or SATA)
M.2 boot drive: 120GB to 2TB (SATA/PCIe)
