Ultrastar Serv24-HA NVMe Storage Server

High Performance Meets High Availability
ULTRASTAR SERV24-HA NVME STORAGE SERVER

OVERVIEW

Designed for Demanding Software-Defined Storage Environments

Fast, efficient storage is what fuels data-intensive applications. The Ultrastar Serv24-HA storage server combines NVMe™ SSD speed with dual-server architecture to deliver a performance-driven "cluster-in-a-box" system. Featuring the latest Intel® Xeon® CPUs, core count and power can be selected to optimally balance data workload and data center efficiency requirements.

Newly available dual-port NVMe SSD technology means that all-flash array deployments can benefit from high availability and NVMe performance. The Ultrastar Serv24-HA is designed to deliver that high availability and enterprise-class reliability. The entire enclosure, including server canisters, is backed with a 5-year limited warranty.

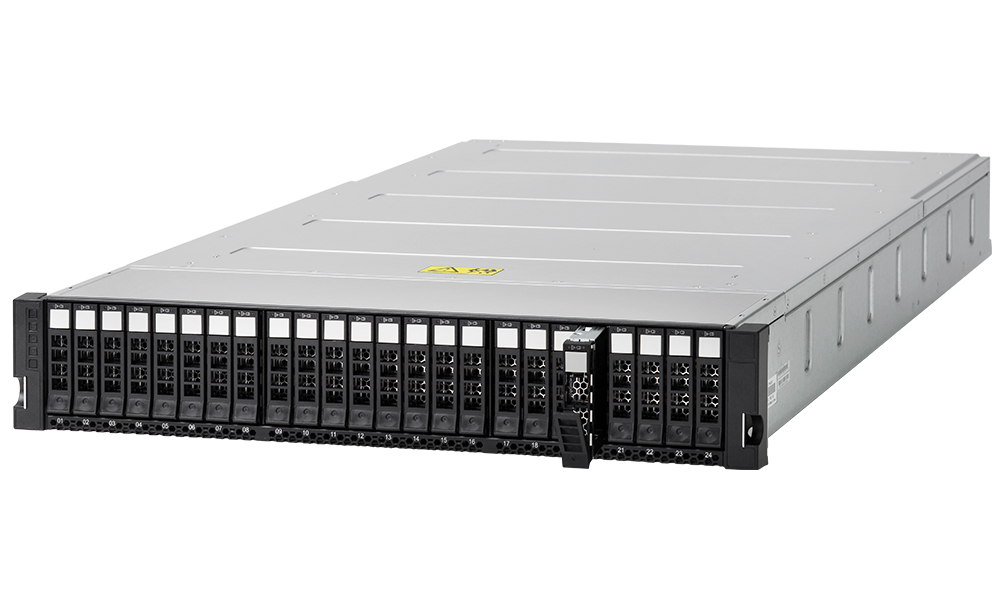

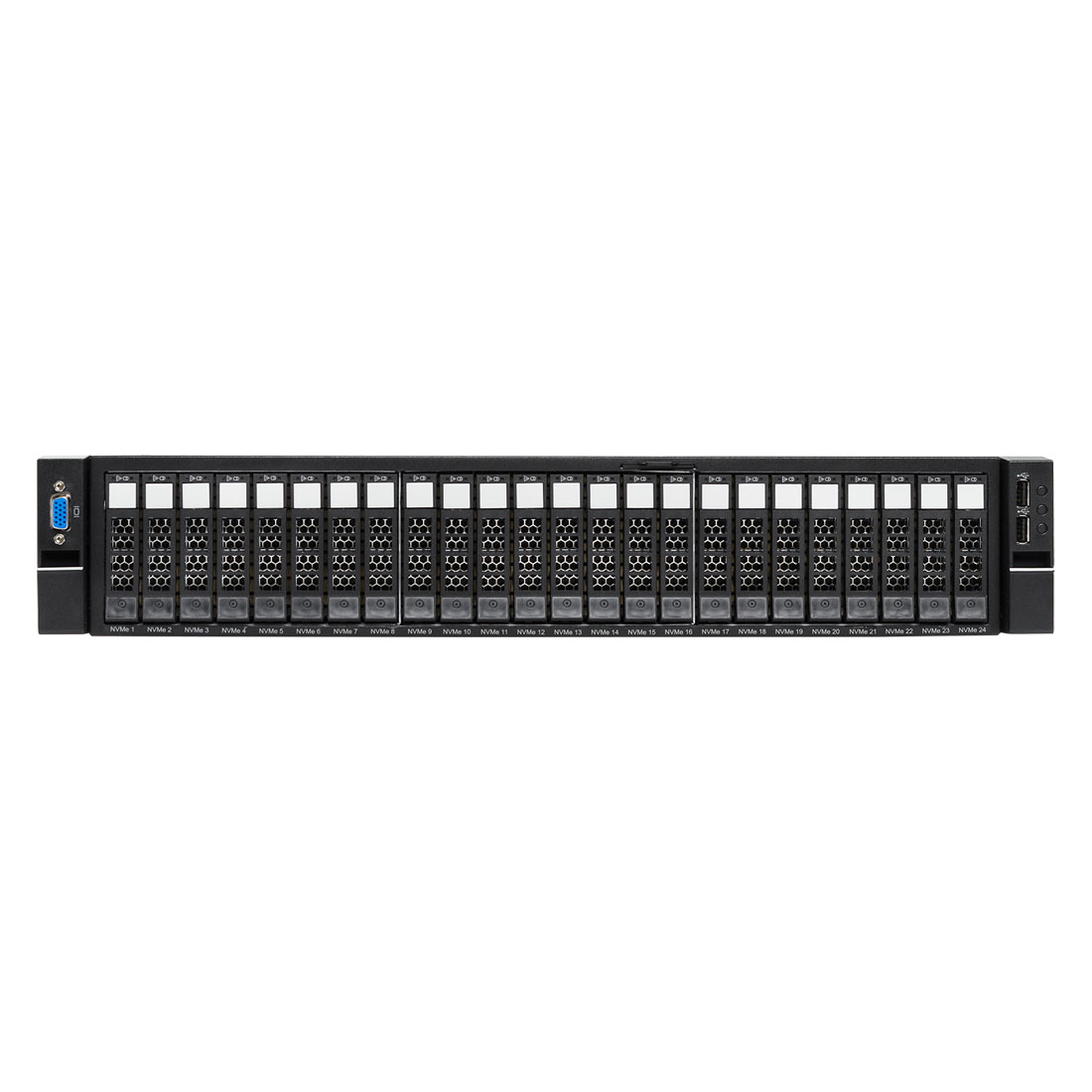

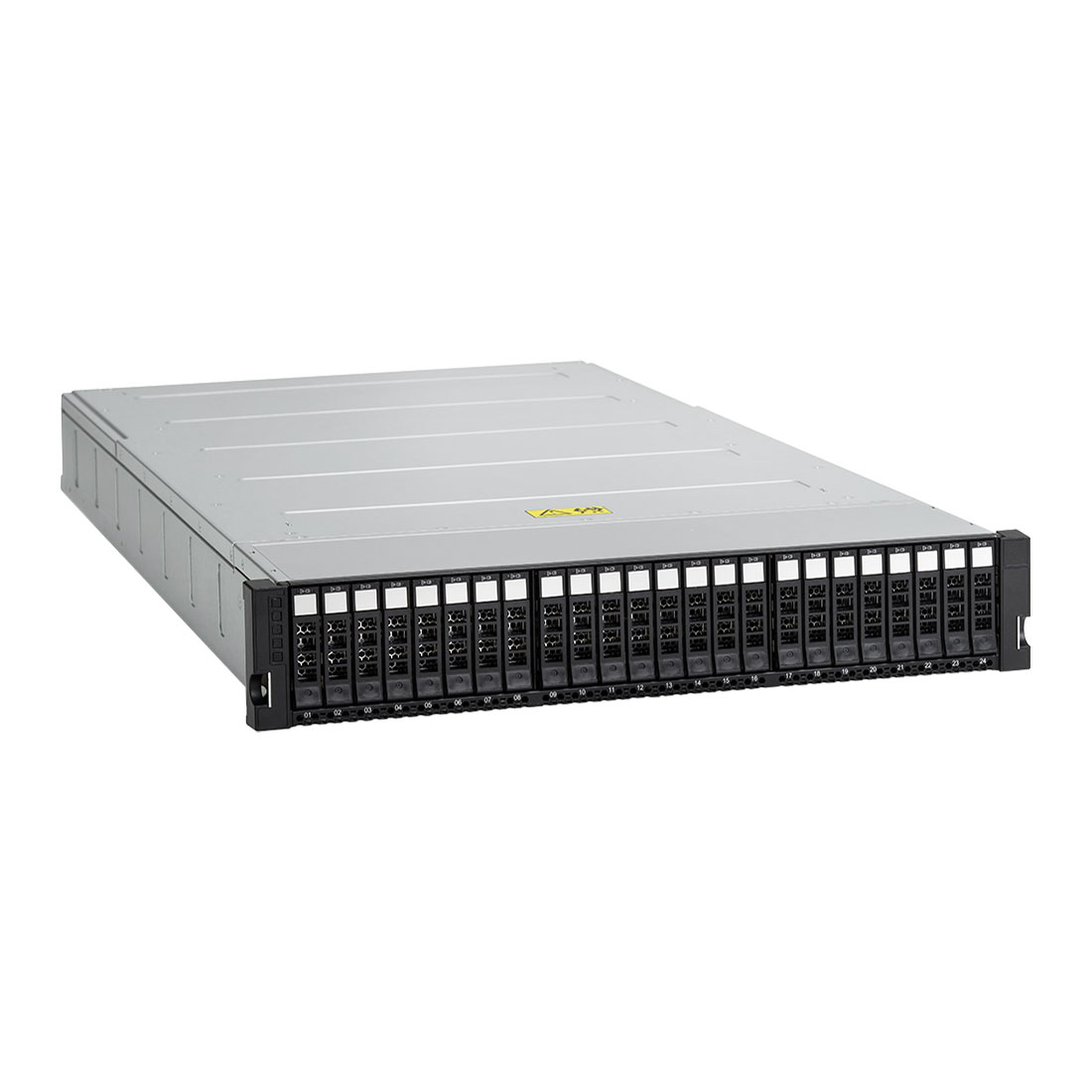

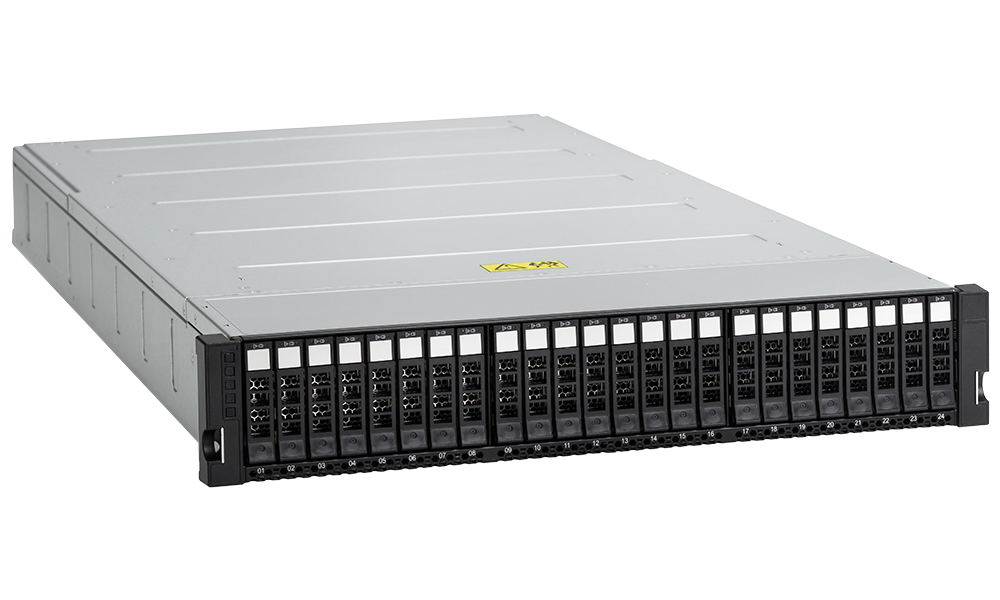

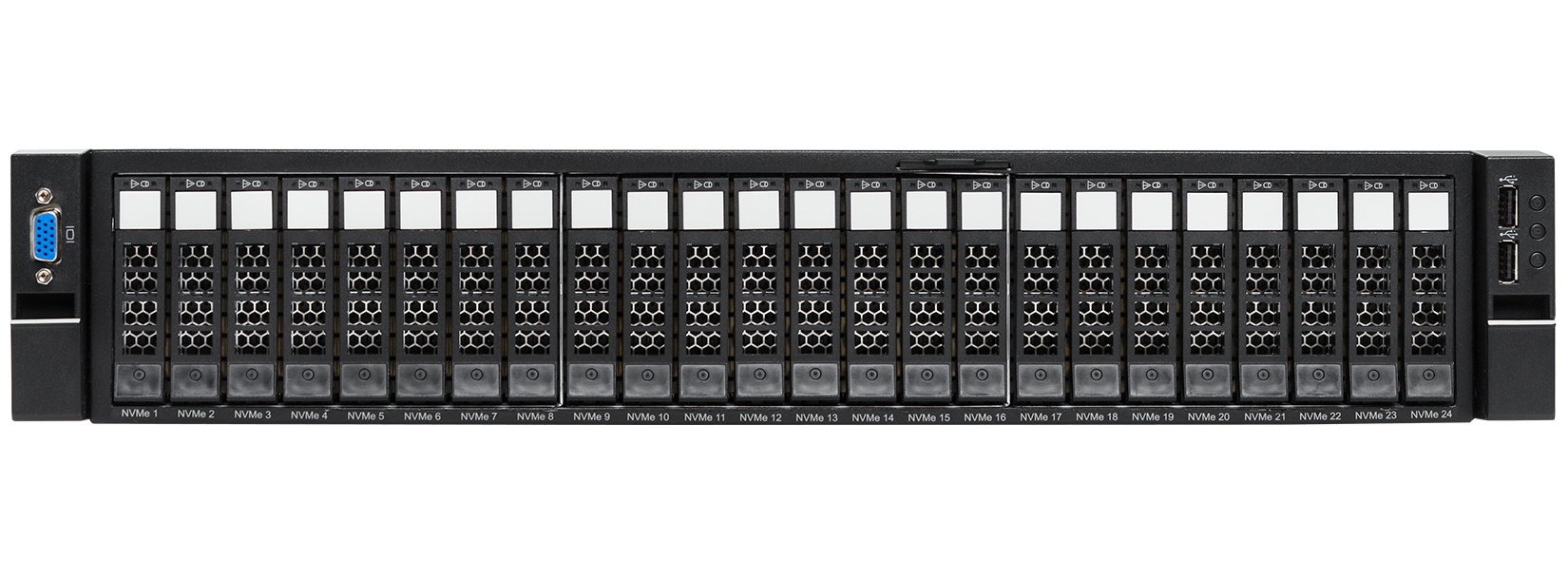

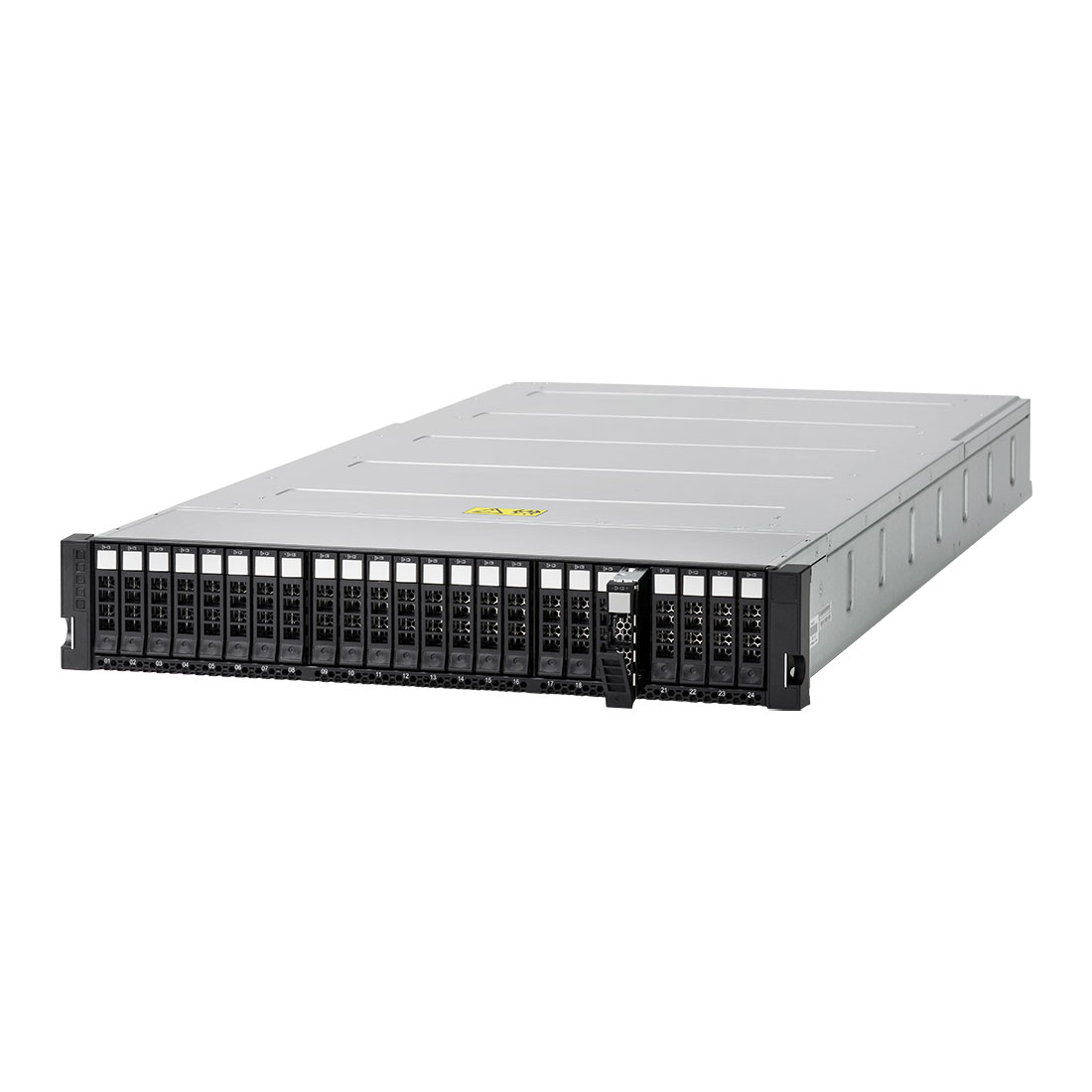

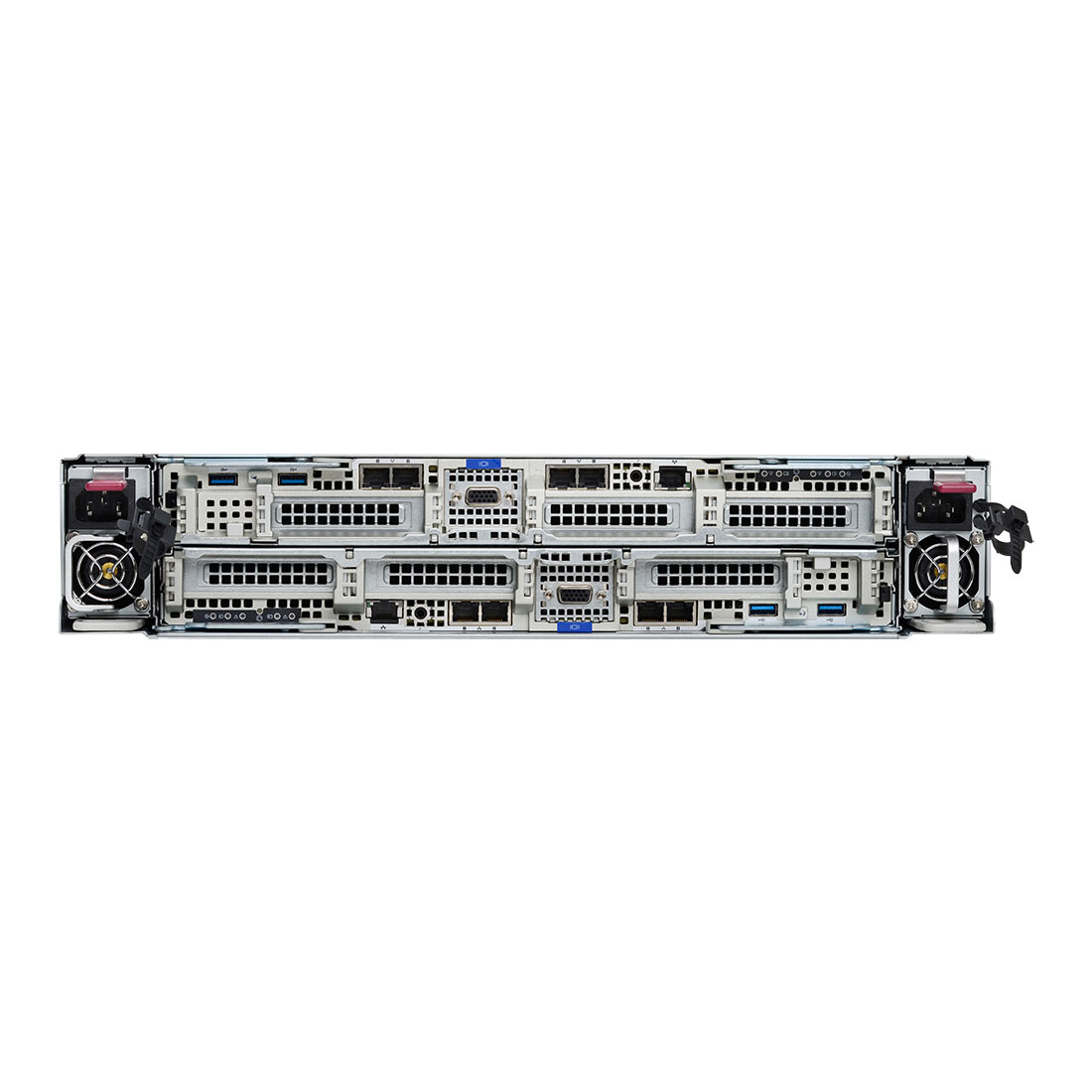

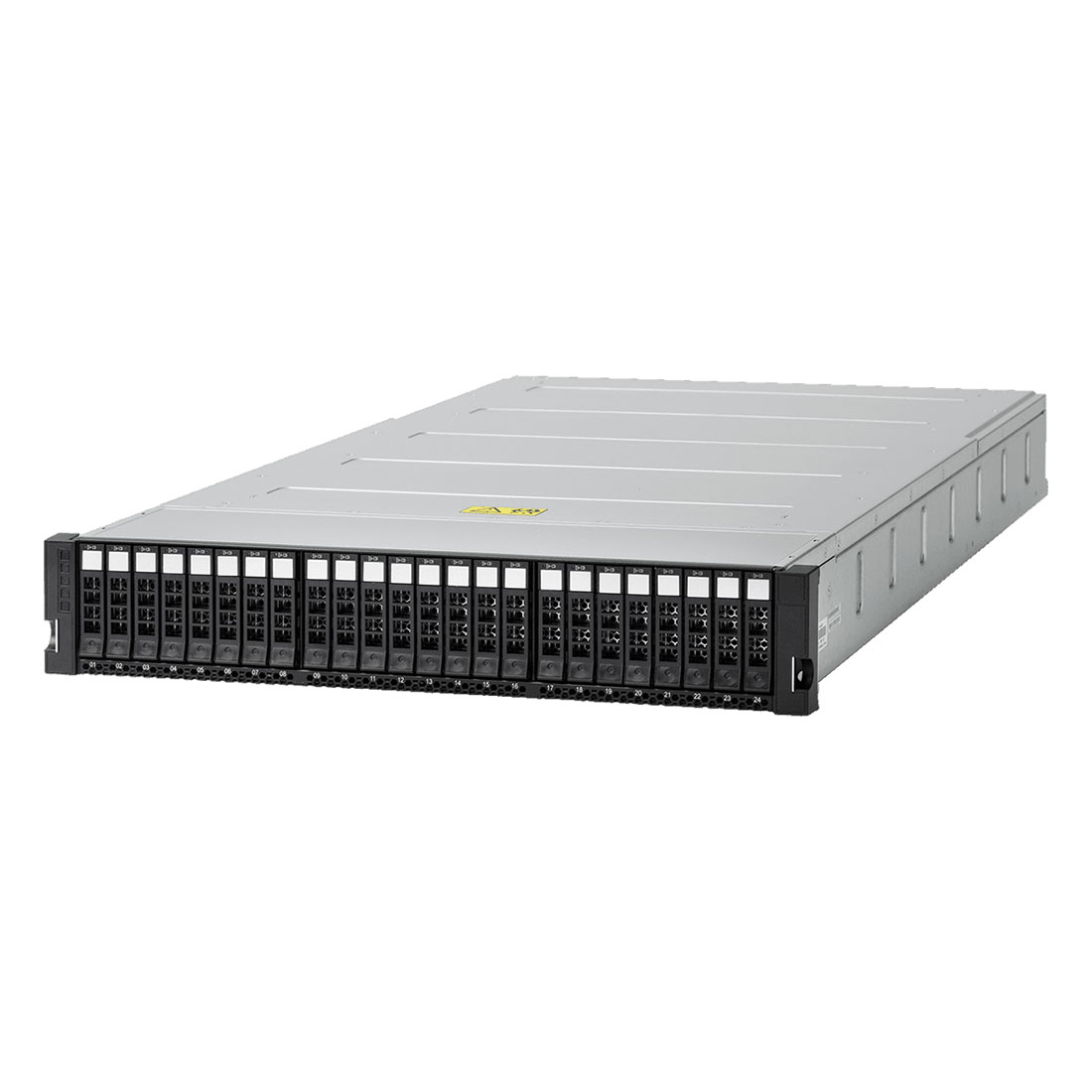

Ultrastar Serv24-HA NVMe Storage Server Ultrastar Serv24-HA NVMe Storage Server Ultrastar Serv24-HA NVMe Storage Server left Ultrastar Serv24-HA NVMe Storage Server back Ultrastar Serv24-HA NVMe Storage Server right
ULTRASTAR SERV24-HA NVME STORAGE SERVER

Highlights

  • Dual, 2 socket, high-performance Intel Xeon Scalable Processor server canisters with failover interconnect
  • Up to 24 NVMe dual-port SSDs with a range of capacity and endurance options
  • Up to 184TB1 raw capacity in 2U
  • Optional battery backup unit

Applications and Workload

  • SDS Environments
  • High-Performance Computing
  • Analytics
  • Database
  • Virtualization (VM Host)
  • Streaming Video
ULTRASTAR SERV24-HA NVME STORAGE SERVER

Request a quick Western Digital's Quote

To receive a quick quote for your desired products please call us at +1 650-320-8000.
You can also email us at 'sales@asacomputers.com.com' or simply click on the 'Request Quote' button. Request Quote

Specifications

Max. Drives 24 x 2.5" Dual-port NVMe SSDs
Available SSD Capacities
7.68TB 1 DW/D, Ultrastar DC SN200
3.84TB 1 DW/D, Ultrastar DC SN200
1.92TB 1 DW/D, Ultrastar DC SN200
Available CPU Choices
Xeon 5118, 2.3GHz, 12C, 105W
Xeon 6140, 2.3GHz, 18C, 140W
Memory per Canister
128GB DDR4-2400 (16 x 16GB DIMMs)
24 DIMM Slots on each motherboard
Expansion per Canister
2 PCIe Gen3 x16 Low Profile
1 PCIe Gen3 x16 Standard Height
Networking per Canister 2 Mellanox® ConnectX-5 (100Gb Ethernet & Infiniband™)
I/O per Canister
4 10Gb Ethernet (RJ45)
2 USB 3.0
1 VGA, DB15
1 RJ45 BMC / Management
Management IPMI 2.0 system management
Physical Dimensions
Height: 87.6mm (3.45")
Width: 446.4mm (17.58")
Depth: 836.4mm (32.93")
Max. Weight
Product w/o SSDs: ~39.1 kg (86.0 lbs)
Product w/ 24 SSDs: ~42.1 kg (92.6 lbs)
Power
1+1 1800W, CRPS, 80+ Platinum
200-240V AC input
56.2WHr Battery Backup Unit (BBU) per canister with 5-year expected life
Cooling per Canister 4+1 40mm fans, cold-swappable
LED Indicators
Front: Power, ID, Fault
Drive: Activity, Fault
Serviceability Hot-swappable power supplies, compute canister, and SSD modules
Environmental
Operating Temperature: 5 to 35°C
Non-op Temperature: -30 to 60°C
Humidity: 8 to 85% relative humidity
Disclosure

1. One MB is equal to one million bytes, one GB is equal to one billion bytes and one TB equals 1,000GB (one trillion bytes) when referring to storage capacity. Accessible capacity will vary from the stated capacity due to formatting and partitioning of the drives, the operating system and other factors.
