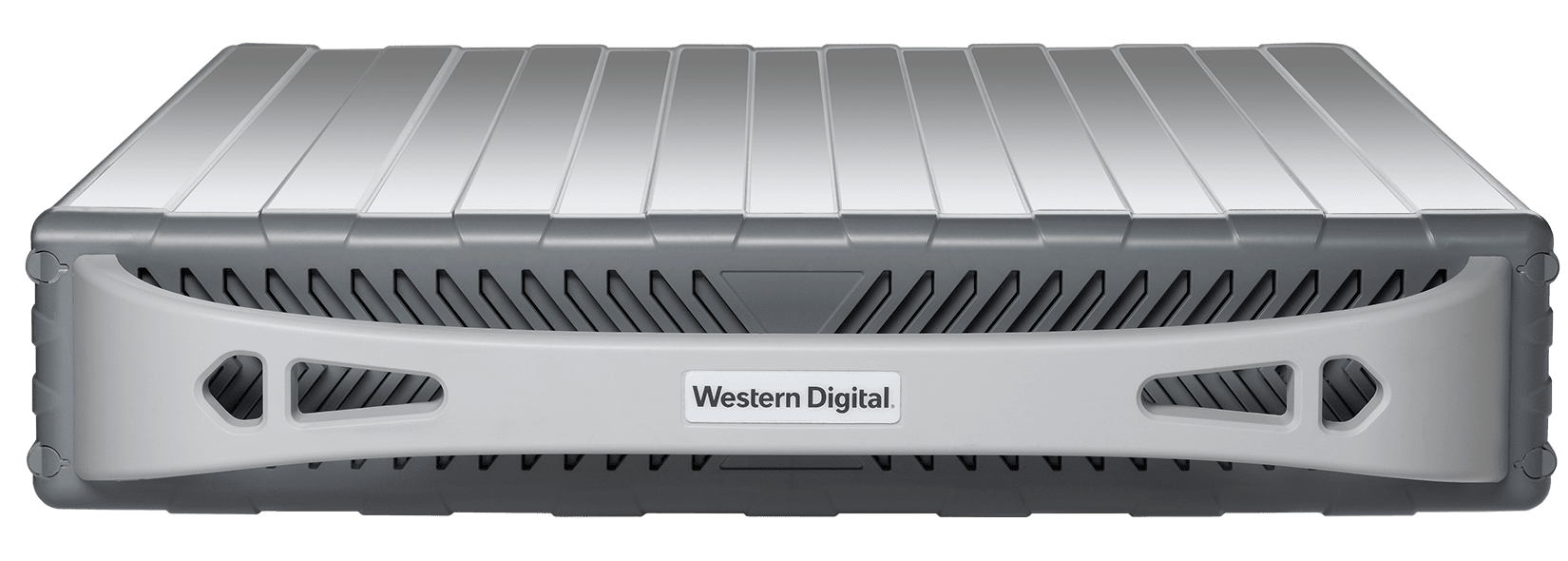

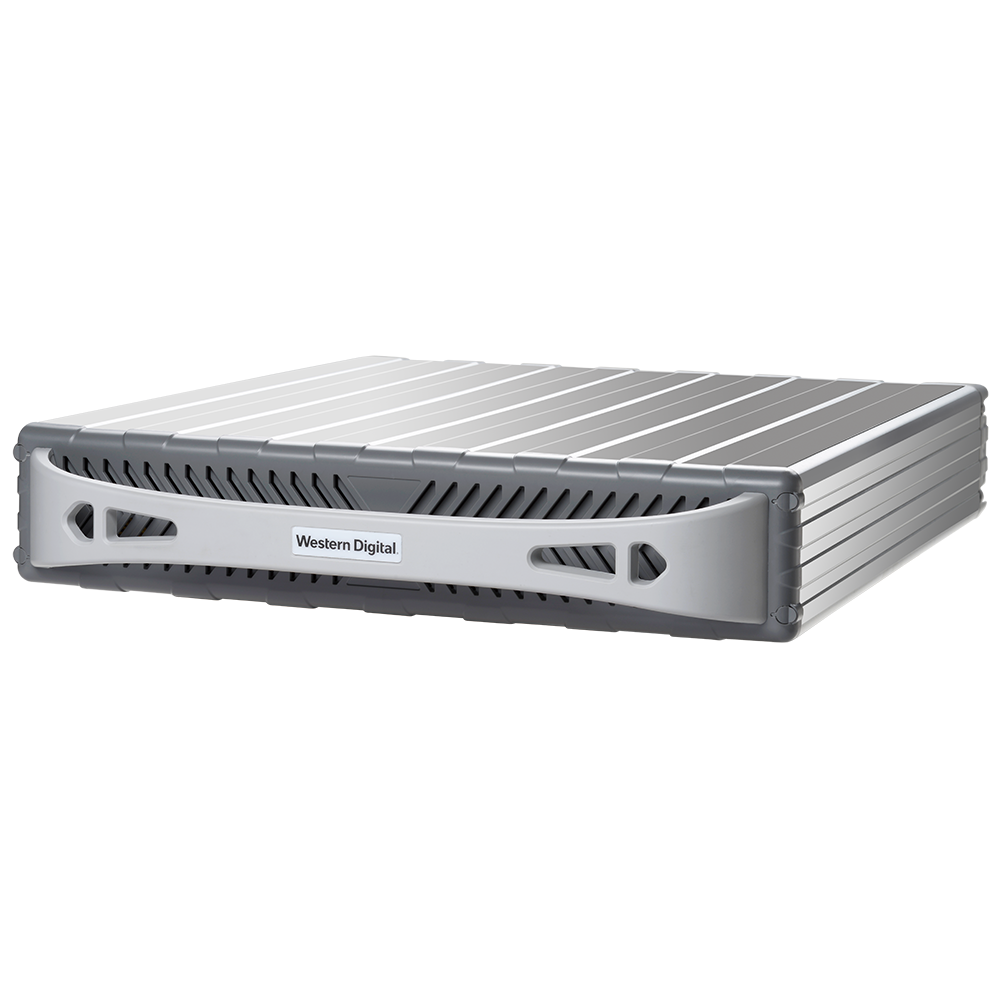

Ultrastar Serv24-A Storage Server

High Performance Meets Portability
Ultrastar Serv24-A Storage Server


Rugged, Portable Data Transport

Sometimes data needs to be physically transported safely and with multiple security measures when traditional methods of sending that data over a network isn't an option because of costs, security concerns or speed. This can include transporting dailies from a shooting location to post-production; seismic data from exploration rig-to-shore; sensitive battlefield data to base, or simply moving data center content to a cloud service provider.

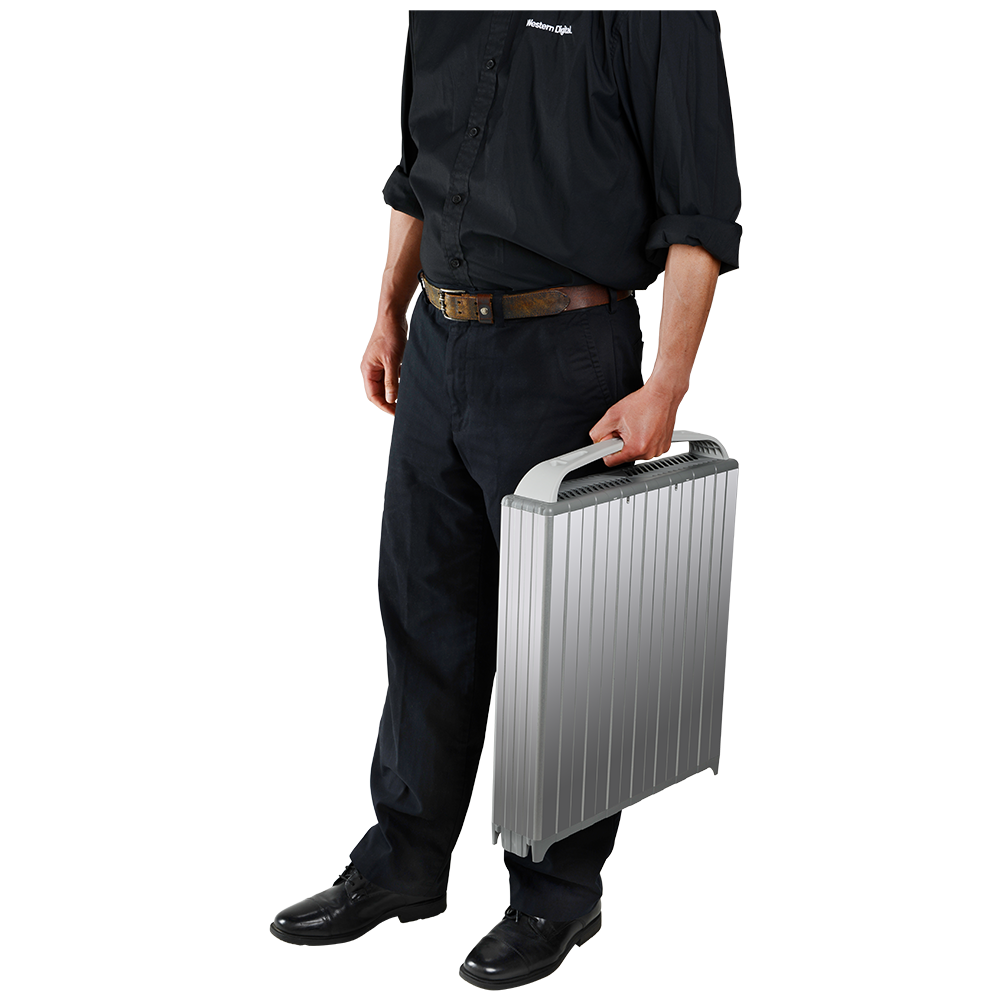

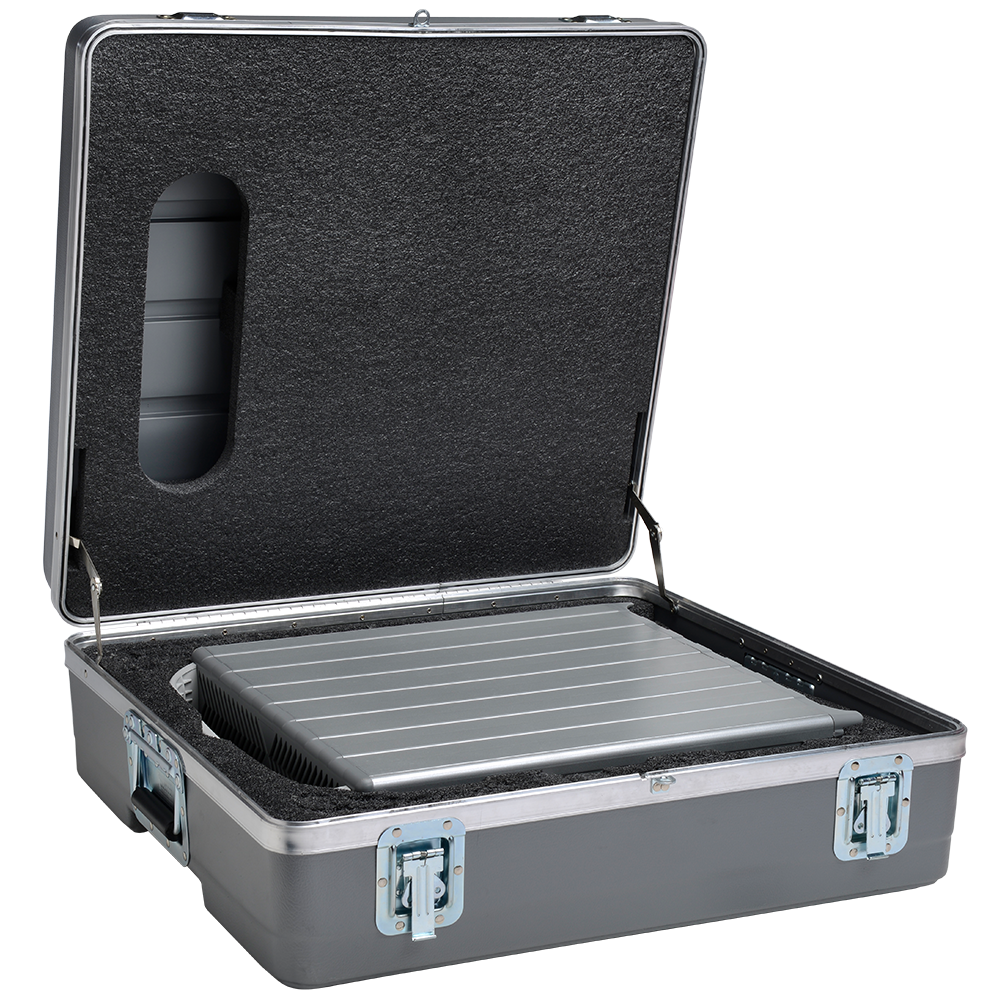

The Ultrastar Serv24-A storage server provides up to 368TB of solid-state storage in a rugged, standard or tamper-evident case. With dual Intel® Xeon® CPUs and high-performance SSDs, data ingest, and transfer is fast and effcient. The integrated handle makes it easy to carry and the available wheeled transit case provides even greater protection.


  • Optional tamper-evident 2U aluminum enclosure
  • Dual-socket Intel Xeon scalable processor-based server
  • Up to 24 Ultrastar SATA SSDs
  • Up to 368TB1 raw capacity in 2U
  • Multiple security options: Secure Erase, Trusted Platform Module; AES-256 SSD encryption
  • Serviceability restricted by design

Applications and Workload

  • Media & Entertainment
  • Seismic Data
  • Government, Military
  • Public Cloud Providers
  • Security-Specialized System Integrators

Request a quick Western Digital's Quote

To receive a quick quote for your desired products please call us at +1 650-320-8000.
You can also email us at 'sales@asacomputers.com.com' or simply click on the 'Request Quote' button.
Request Quote


Max. Drives
Up to 24 Ultrastar SSDs
Up to 15.36TB raw capacity per SAS SSD
Boot Drives 2 M.2 SATA 120GB SSDs
CPUs 2 Xeon Silver 4114, 2.2GHz, 10 C, 85W TDP
Memory 128GB DDR4 Installed (4x 32GB DIMMs)
Onboard dual 10GBase-T
Onboard Intel X520-DA2 dual 10GbE SFP+ (25GbE and 40GbE also supported)
1 PCIe 3.0 x16
1 DB9 serial port
IPMI 2.0 system management
Dedicated DB9 serial management port
Physical Dimensions
Height: 88.4mm (3.48")
Width: 431.8mm (17")
Depth: 533.4mm (21")
Max. Weight Product with 24 SSDs: 17.7kg (39lbs)
700W, Platinum
100-240V AC input, auto-ranging
Operating Temperature: 10 to 35°C
Non-op Temperature: -30 to 60°C
Humidity: 8 to 90% relative humidity, non-condensing
Operating Altitude: 3,050m (10,000ft)
