Ultrastar SATA Series SSD

Purpose-Built for Cloud, Boot and Edge

OVERVIEW

Optimized for Read-Intensive Workloads in the Cloud and at the Edge

Cloud and Software-defined Storage environments require elastic infrastructure to be able to adapt to continuously changing workload and data requirements. Delivering performance and capacity at the right time, while staying on budget, is essential to success. Western Digital's Ultrastar DC SA620 SATA SSDs enable price/performance with mixed-use endurance options to support elasticity required for cloud data centers to succeed. SATA SSDs also play a role in edge computing, where applications like content delivery networks (CDNs) are moving away from centralized data centers to locations closer to those who are consuming the content. In such environments, data access speed is essential. SATA SSDs are key to delivering cost-effective performance for these read-intensive environments. Our purpose-built Ultrastar DC SA210 drives deliver price/performance to edge servers and read-intense CDNs, and are also well-suited for use as boot drives. With capacities as low as 120GB up to 1.92TB, you can choose the right capacity point for your operating system and logging requirements.

ultrastar-dc-sa210-family-western-digital ultrastar-dc-sa210-front-western-digital ultrastar-dc-sa620-angle-western-digital ultrastar-dc-sa620-front-western-digital ultrastar-sata-series-ssd-western-digital

Delivering Edge and Cloud Economics

Purpose Built

Performance and endurance options deliver cost-efficiency to Cloud/Edge

Efficient Capacity

With models as low as 120GB, find a drive that fits your needs and budget

Enterprise Grade

All drives offer a 5-year limited warranty and 2M hr MTBF rating

Request a quick Western Digital's Quote

To receive a quick quote for your desired products please call us at +1 650-320-8000.
You can also email us at 'sales@asacomputers.com.com' or simply click on the 'Request Quote' button.
Request Quote

Highlights

  • Capacities as low as 120GB and up to 1.92TB
  • Up to 512 MiB/s read and 475 MiB/s write sequential throughput
  • Drop-in ready 6 Gb/s SATA interface works in existing infrastructure
  • Enterprise data durability features
  • Options for read-intense and mixed-use workloads
  • Enterprise-class 2M hour MTBF reliability rating

Applications and Workload

  • IaaS, PaaS, and SaaS Infrastructure
  • Social Media, Web Servers
  • Software-Defined Storage (SDS)
  • eCommerce, Micropayments
  • Enterprise Server Boot
  • Video Streaming, Video-on-Demand
  • Audio Streaming and File Servers
  • Read-intensive applications that benefit from faster data access
SA620

Mid-Range Endurance

Models with 0.6 DW/D and 1.8 DW/D endurance rating (random workload) over a 5-year limited warranty

Efficient Capacity

Up to 1.92TB capacity based on 15nm MLC NAND, optimized for cloud and hyperscale environments

Throughput for Cloud & SDS

Up to 512 MiB/s sequential read and up to 56K IOPS mixed 70/30 R/W; write latency as low as 56μs

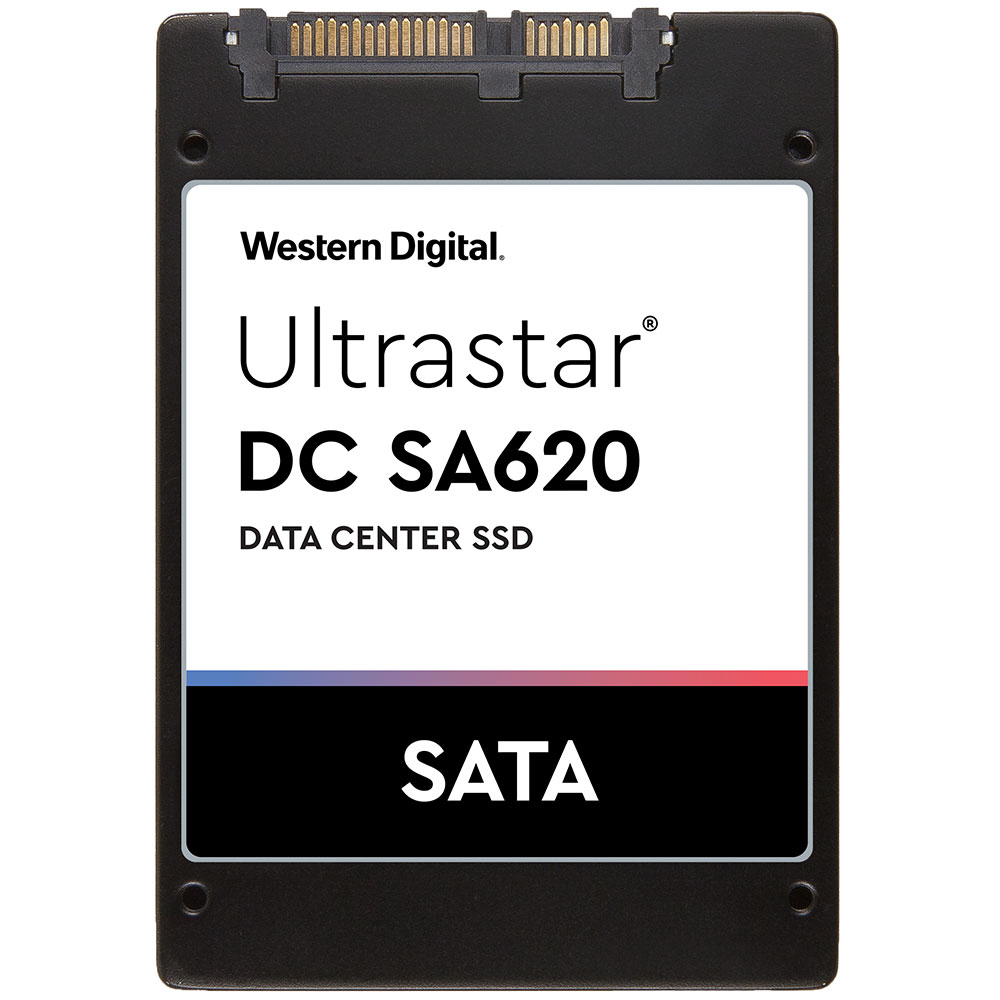

Ultrastar DC SA620
General
Interface
SATA 6Gb/s
Form Factor
2.5-inch 7mm drive
Capacity1
1.8 DW/D: 1.6TB / 800GB / 400GB
0.6 DW/D: 1.92TB / 960GB / 480GB
Endurance (Drives writes per day, DW/D)2
1.8 DW/D: 1.8 for 5 years -or- 3 for 3 years
0.6 DW/D: 0.6 for 5 years -or- 1 for 3 years
Maximum Terabytes Written (TBW)
1.8 DW/D: 5,256 / 2,628 / 1,314
0.6 DW/D: 2,102 / 1,051 / 526
Flash Memory Technology
15nm MLC NAND
Performance3
Sequential Read (max MiB/s, 128KiB)
512
Sequential Write (max MiB/s, 128KiB)
445
Random Read (max IOPS, 4KiB)
76,000
Random Write (max IOPS, 4KiB)
1.8 DW/D: 32,000
0.6 DW/D: 16,000
Mixed Random Read/Write (max IOPS 70%R/30%W, 4KiB)
1.8 DW/D: 52,000
0.6 DW/D: 28,000
Write Latency (µs, average)4
1.8 DW/D: 56
0.6 DW/D: 66
Reliability
Unrecoverable Bit Error Rate (UBER)
1 in 1017
MTBF (M hours)5
2
Annualized Failure Rate (AFR)
0.44%
Availability (hrs/day x days/week)
24x7
Limited Warranty
5 years
Power
Requirement (DC, +/- 5%)
+5V
Operating (W, typical)
3.8 (write) / 2.6 (read)
Idle (W)
1.6
Physical Size
Z-Height (mm)
7.17
Dimensions (width x depth, mm)
69.85 x 100.2
Weight (g, max)
89.9
Environmental
Operating Temperature7
0° to 70°C
Non-operating Temperature
-40° to 85°C

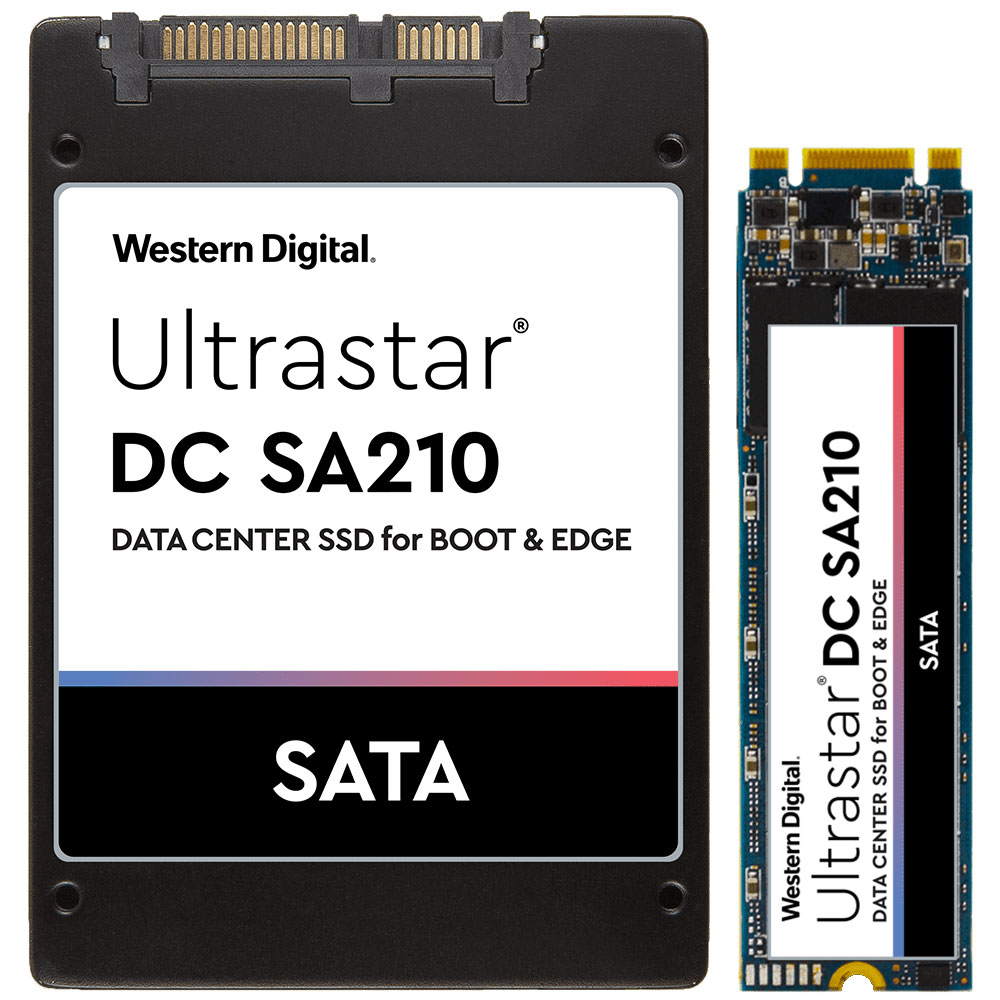

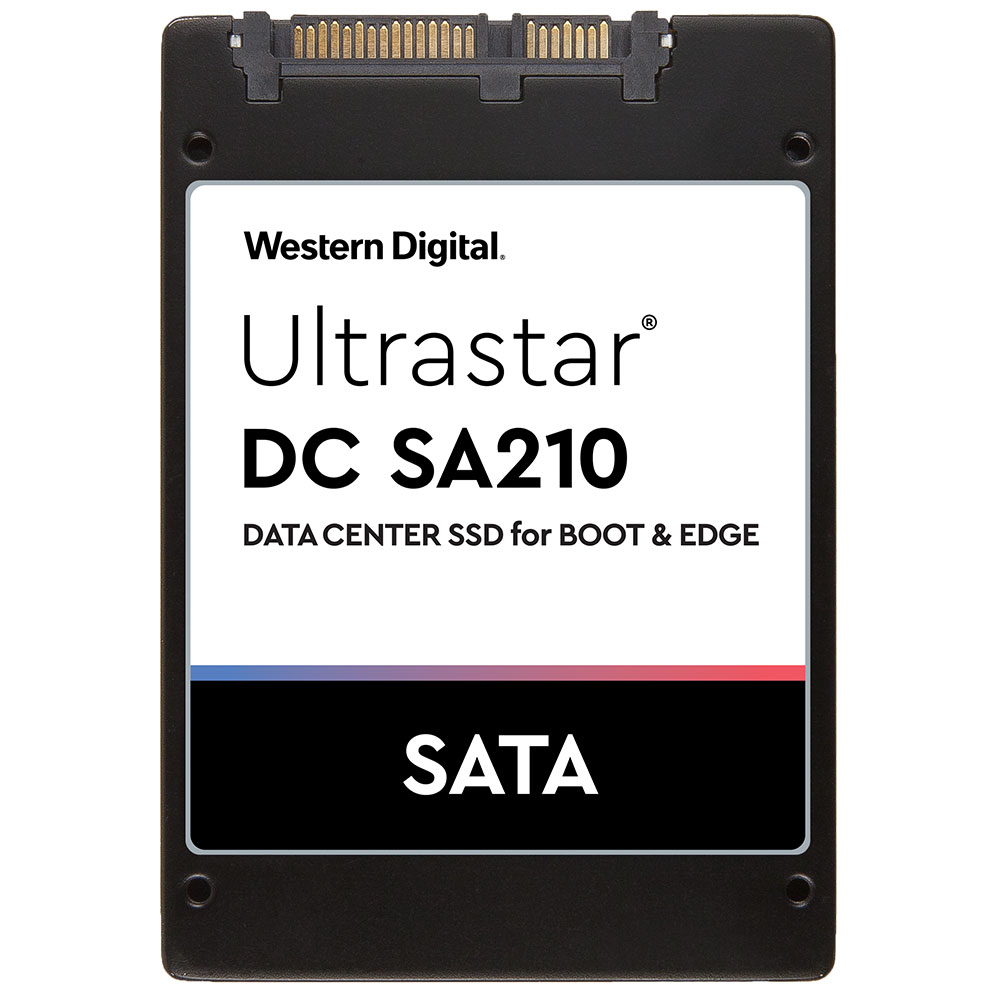

SA210

Lower Endurance

0.1 DW/D endurance rating (random workload) and 0.7 DW/D (sequential workload) with 5-year limited warranty

Targeted Capacity

Capacities as low as 120GB, and as high as 1.92TB, optimized for boot & edge environments

Throughput for Boot & Edge

Up to 510 MB/s sequential read, up to 64K read IOPS and up to 21K mixed used IOPS 90/10 R/W

2.5-inch drive
M.2 2280
General
Interface
SATA 6Gb/s
SATA 6Gb/s
Form Factor
2.5-inch drive
2280
Capacity1
1.92TB / 960GB / 480GB / 240GB / 120GB
1.92TB / 960GB / 480GB / 240GB / 120GB
Endurance (Drives writes per day, DW/D)2
0.1 (JESD219 Workloads)
0.7 (128KiB Sequential Workloads)
0.1 (JESD219 Workloads)
0.7 (128KiB Sequential Workloads)
Maximum Terabytes Written (TBW)
350 / 175 / 87 / 43 / 21
350 / 175 / 87 / 43 / 21
Flash Memory Technology
3D TLC NAND
3D TLC NAND
Performance3
Sequential Read (max MiB/s, 128KiB)
512
512
Sequential Write (max MiB/s, 128KiB)
475
475
Random Read (max IOPS, 4KiB)
64,000
64,000
Random Write (max IOPS, 4KiB)
5,000
5,000
Mixed Random Read/Write (max IOPS 70%R/30%W, 4KiB)
11,000 (max IOPS 70%R/30%W, 4KiB, QD32)
21,000 (max IOPS 90%R/10%W,4KiB, QD32)
11,000 (max IOPS 70%R/30%W, 4KiB, QD32)
21,000 (max IOPS 90%R/10%W,4KiB, QD32)
Random Read Latency (ms,typical)4
0.15
0.15
Reliability
Unrecoverable Bit Error Rate (UBER)
1 in 1017
1 in 1017
MTBF (M hours)5
2
2
Annualized Failure Rate (AFR)
0.44%
Availability (hrs/day x days/week)
24x7
24x7
Limited Warranty6
5 years
5 years
Power
Requirement (DC, +/- 5%)
2.5": +5V
+3.3V
Operating (W, typical)
2.5": 3.8 (write), 2.65 (read)
3.8 (write), 3 (read)
Idle (W)
0.43
0.43
Physical Size
Z-Height (mm)
2.5": 7.0
<1.92TB: 2.23, 1.92TB: 2.38
Dimensions (width x depth, mm)
2.5": 69.85 x 100.2
22 x 80
Weight (g, max)
2.5": <1.92TB: 37.4, 1.92TB: 59.7
7
Environmental
Operating Temperature7
0° to 70°C
0° to 70°C
Non-operating Temperature
-55° to 85°C
-55° to 85°C
