Ultrastar NVMe Series

Low Latency and Maximum Throughput for High-Transaction Workloads

OVERVIEW

Accelerate Access to Critical Data for Data-Intensive Workloads and Applications

Ultrastar NVMe series SSDs perform at the speed of today's business needs. Enabling faster intelligence and access to critical data, these SSDs meet the growing digital demands of your business applications. Our top-end Ultrastar DC SN200 drive delivers extreme performance and ultra-low latency to the top tier of enterprise storage. It takes hyper-converged infrastructure (HCI) system throughput to new levels and helps scale on-line transaction processing (OLTP). Our Essential NVMe drives, Ultrastar DC SN620 and DC SN630, offer low latency and higher bandwidth for a seamless transition away from SATA SSDs in mixed-use and read-intensive applications. This combination of high throughput and predictable low latency delivers high performance for deeper insights and faster results for today's data intensive applications.

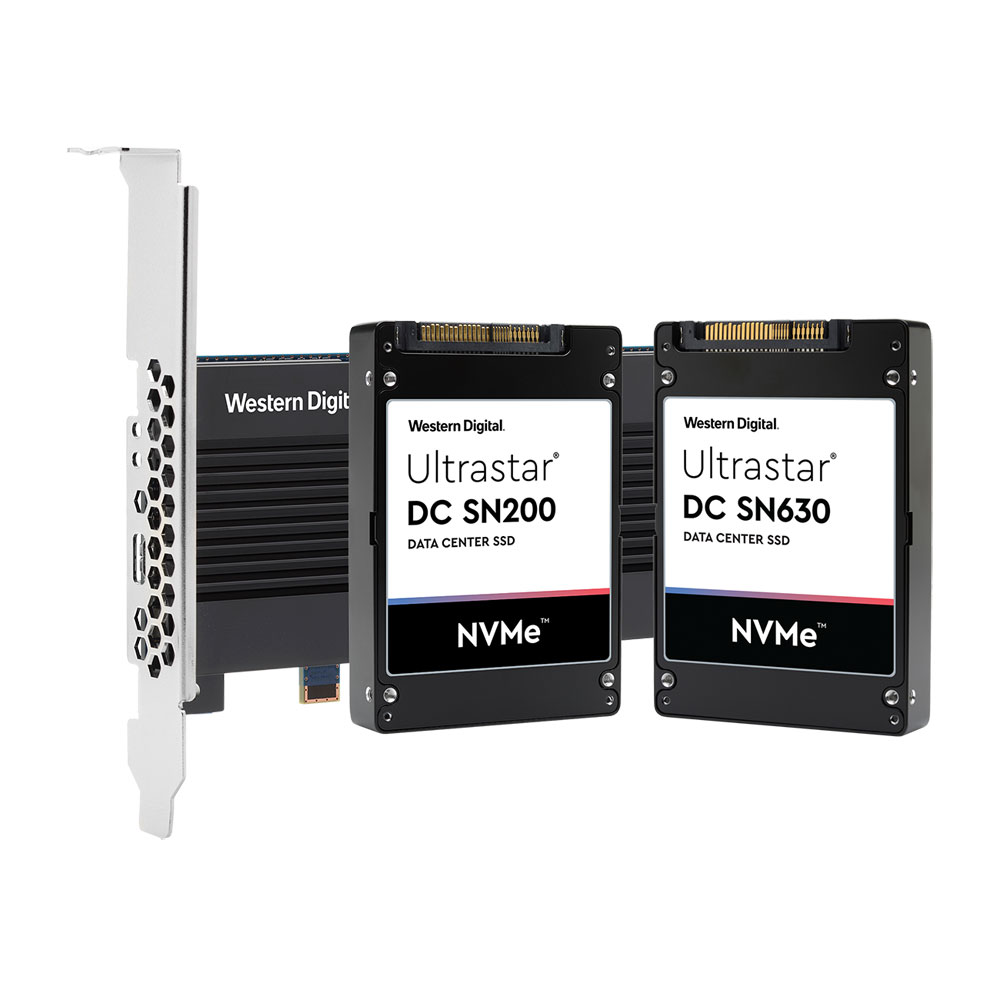

ultrastar-dc-sn200-left-western-digital Ultrastar-DC-SN630-NVMe-U.2-standingFront-connector product-hero-image-ultrastar-630-200-nvme-western-digital-new Ultrastar-DC-SN630-NVMe-U.2-standingL-connector-CLEAN-HR ultrastar-dc-sn620-left-western-digital ultrastar-dc-sn260-aic-front-western-digital

Accelerate Access to Critical Data

Maximum Throughput

Up to 1.2M read IOPS to help power through demanding workloads

Low Latency

Predictable throughput for high-transaction workloads

Design Flexibility

Choice of form factors to support range of data centers requirements

Request a quick Western Digital's Quote

To receive a quick quote for your desired products please call us at +1 650-320-8000.
You can also email us at 'sales@asacomputers.com.com' or simply click on the 'Request Quote' button.
Request Quote

Highlights

  • Up to 1.2M random read IOPS
  • Capacities from 800GB to 7.68TB
  • High-performance PCIe Gen 3 & NVMe compliant
  • Enterprise Data Durability Features
  • Options for read-intense and mixed-use workloads
  • Enterprise-class 2M hour MTBF4 reliability rating

Applications and Workload

  • Mission-Critical Database Applications
  • Highest Performance Tier Storage
  • Cloud and Hyperscale Computing
  • Analytical Processing (OLAP)
  • Boot and Edge
  • Hyper-Converged Infrastructure (HCI)
  • Virtualization

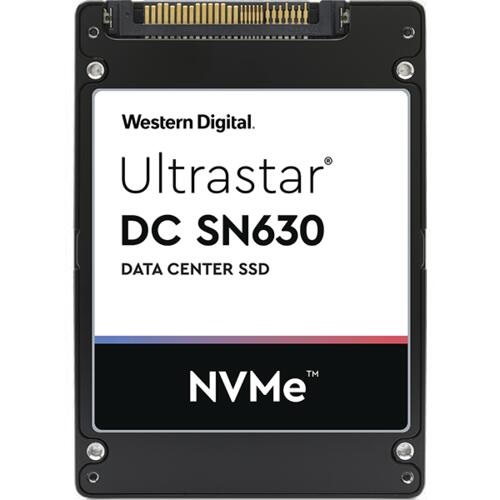

Ultrastar DC SN630

Outstanding Performance

Up to 2x the random read IOPS of the previous generation NVMe with the power of BiCS3, 3D NAND

High Capacity

Available up to 7.68TB per drive, allowing for larger storage per server than the previous generation

Quality of Service

Delivers its performance with a high quality of service, minimizing outliers and making it easier to meet demanding SLAs

960GB/800GB
1,920GB/1,600GB
3,840GB/3,200GB
7,680GB/6,400GB
General
Interface
PCIe Gen 3.1 x4 (Compliant to NVMe 1.3)
PCIe Gen 3.1 x4 (Compliant to NVMe 1.3)
PCIe Gen 3.1 x4 (Compliant to NVMe 1.3)
PCIe Gen 3.1 x4 (Compliant to NVMe 1.3)
Form Factor
U.2 2.5-inch drive
U.2 2.5-inch drive
U.2 2.5-inch drive
U.2 2.5-inch drive
Capacity1
960GB/800GB
1,920GB/1,600GB
3,840GB/3,200GB
7,680GB/6,400GB
Endurance (Drive writes per day, DW/D)2
0.8/2
0.8/2
0.8/2
0.8/2
Flash Memory Technology
WDC BiCS3 3D TLC NAND
WDC BiCS3 3D TLC NAND
WDC BiCS3 3D TLC NAND
WDC BiCS3 3D TLC NAND
Performance3 (Specified at 10.75W Average)
Sequential Read (max MiB/s, 128KiB)
2,690/2,690
2,660/2,670
2,510/2,500
2,520/2,540
Sequential Write (max MiB/s, 128KiB)
930/960
1,230/1,240
1,180/1,200
1,240/1,240
Random Read (max IOPS, 4KiB)
278,760/281,790
358,220/356,870
332,420/332,510
360,280/306,520
Random Write (max IOPS, 4KiB)
43,580/86,740
53,850/86,870
55,000/88,140
54,220/88,210
Mixed Random Read/Write (max IOPS 70%R/30%W, 4KiB)
107,350/188,480
170,390/253,390
163,350/238,500
170,250/273,960
Latency Distribution (Specified at 10.75W Average)
Random Read Latency (4KiB BS, QD1, 99.99%) (µS)
179/179
190/188
243/239
243/239
Reliability
Unrecoverable Bit Error Rate (UBER)
1 in 1017
1 in 1017
1 in 1017
1 in 1017
EOL Data Retention
3-month at 40°C
3-month at 40°C
3-month at 40°C
3-month at 40°C
MTBF (M hours)4
2
2
2
2
Annualized Failure Rate (AFR)
0.44%
0.44%
0.44%
0.44%
Limited Warranty5
5 years
5 years
5 years
5 years
Electrical
Requirement (DC +/- 10%)
12V
12V
12V
12V
Operating Power States (W, average)
10.75 & 8.75
10.75 & 8.75
10.75 & 8.75
10.75 & 8.75
Idle (W, average)
5.8
5.8
5.9
6.1
Environmental
Operating Temperature6
0° to 78°C
0° to 78°C
0° to 78°C
0° to 78°C
Non-operating Temperature
-40° to 85°C
-40° to 85°C
-40° to 85°C
-40° to 85°C
Physical Measurements
Width (mm)
69.85 +/-0.25
69.85 +/-0.25
69.85 +/-0.25
69.85 +/-0.25
Length (mm, max)
100.45
100.45
100.45
100.45
Weight (g, max)
95
95
95
95
z-height (mm)
7.00 +0.2/-0.5
7.00 +0.2/-0.5
7.00 +0.2/-0.5
7.00 +0.2/-0.5

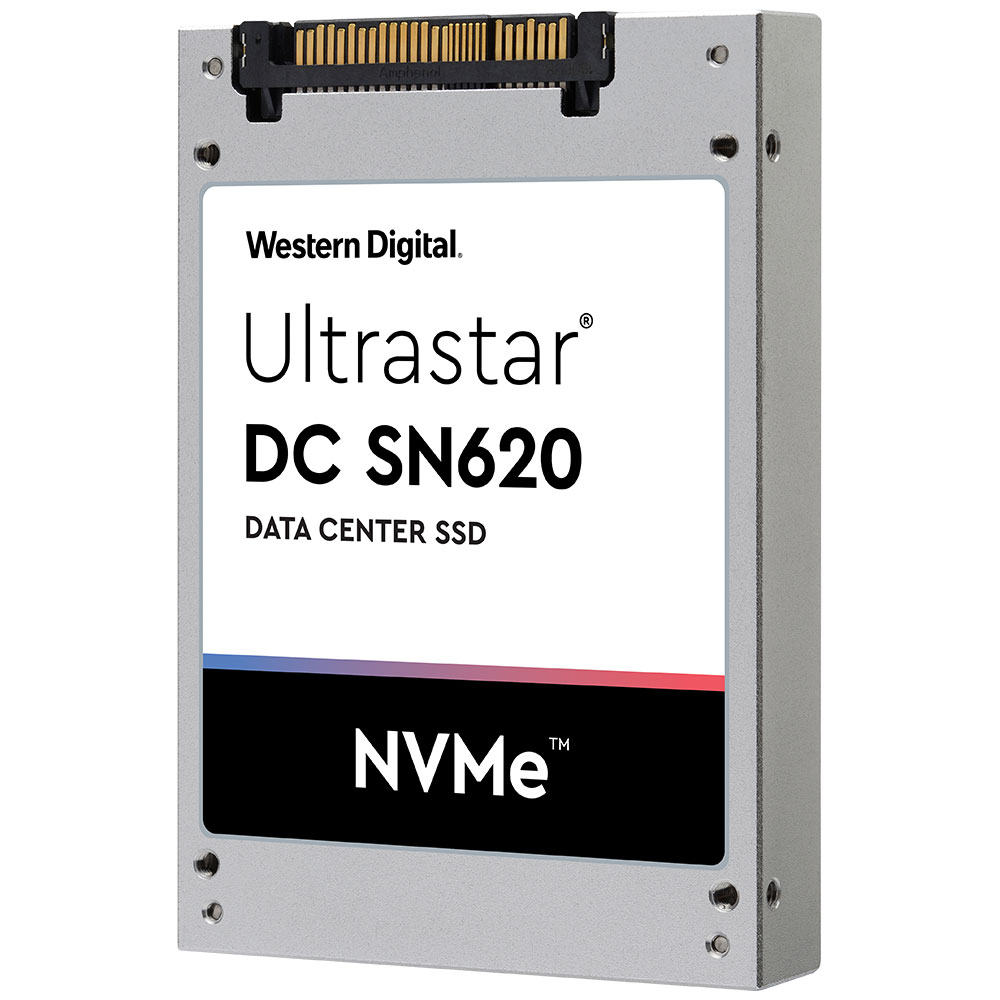

Ultrastar DC SN620

High Bandwidth

3X the bandwidth of Enterprise SATA SSDs

Optimal Power Performance

Typical power consumption under 11W for efficient workload utilization and a lower thermal profile than 25W solutions

Mitigate SATA Sprawl

With 3X the bandwidth of Enterprise SATA SSDs, server consolidation can benefit by as much as 3:1

< 1 DW/D
> 1 DW/D
General
Interface
PCIe 3.0 x4 NVMe 1.2
PCIe 3.0 x4 NVMe 1.2
Form Factor
U.2 2.5-inch drive
U.2 2.5-inch drive
Capacity1
3.84TB / 1.92TB
3.2TB / 1.6TB
Endurance (Drive writes per day, DW/D)7
0.5 / 0.6
1.2 / 1.7
Maximum Terabytes Written (TBW)
3,504 / 2,102
7,008 / 4,964
Performance
Sequential Read (max MiB/s, 128KiB)
1,700
1,700
Sequential Write (max MiB/s, 128KiB)
1,100
1,100
Random Read (max IOPS, 4KiB)
250,000
250,000
Random Write (max IOPS, 4KiB)
38,000
83,000
Mixed Random Read/Write (max IOPS 70%R/30%W, 4KiB)
89,000
132,000
Write Latency (µS)8
1,455 / 842
780 / 386
Reliability
Unrecoverable Bit Error Rate (UBER)
<1 in 1017
<1 in 1017
MTBF (M hours)5
2
2
Annualized Failure Rate (AFR)
0.44%
0.44%
Limited Warranty
5 years
5 years
Data Retention
3-month at 40°C
3-month at 40°C
Power
Requirement
12V +/- 10%
12V +/- 10%
Operating (W, typical)
10.5
10.5
Idle (W)
5.6
5.6
Physical Size
Z-Height (mm)
15
15
Dimensions (width x depth, mm)
100.45 x 69.85
100.45 x 69.85
Weight (g, max)
125
125
Environmental
Operating Temperature
0° to 70°C (Case)
0° to 70°C (Case)
Airflow (LFM)
NA
NA

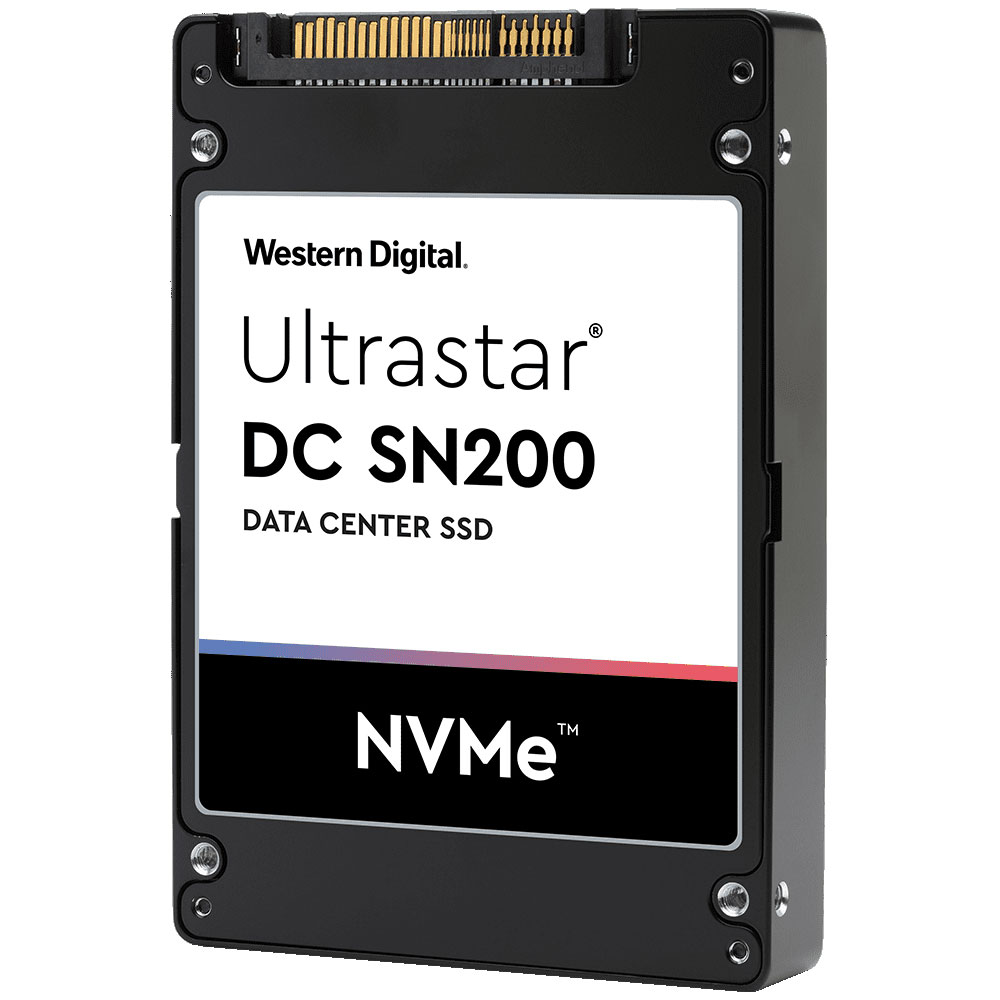

Ultrastar DC SN200

Maximum Throughput

Up to 1.2M random read IOPS, ideal for data-intensive workloads

Ultra-low Latency

20μs write latency delivers consistent, extreme performance for high QoS in Enterprise, Cloud, and Hyperscale environments

High Availability

Dual port (2x2) capable 2.5-inch SFF drives enable high availability system designs

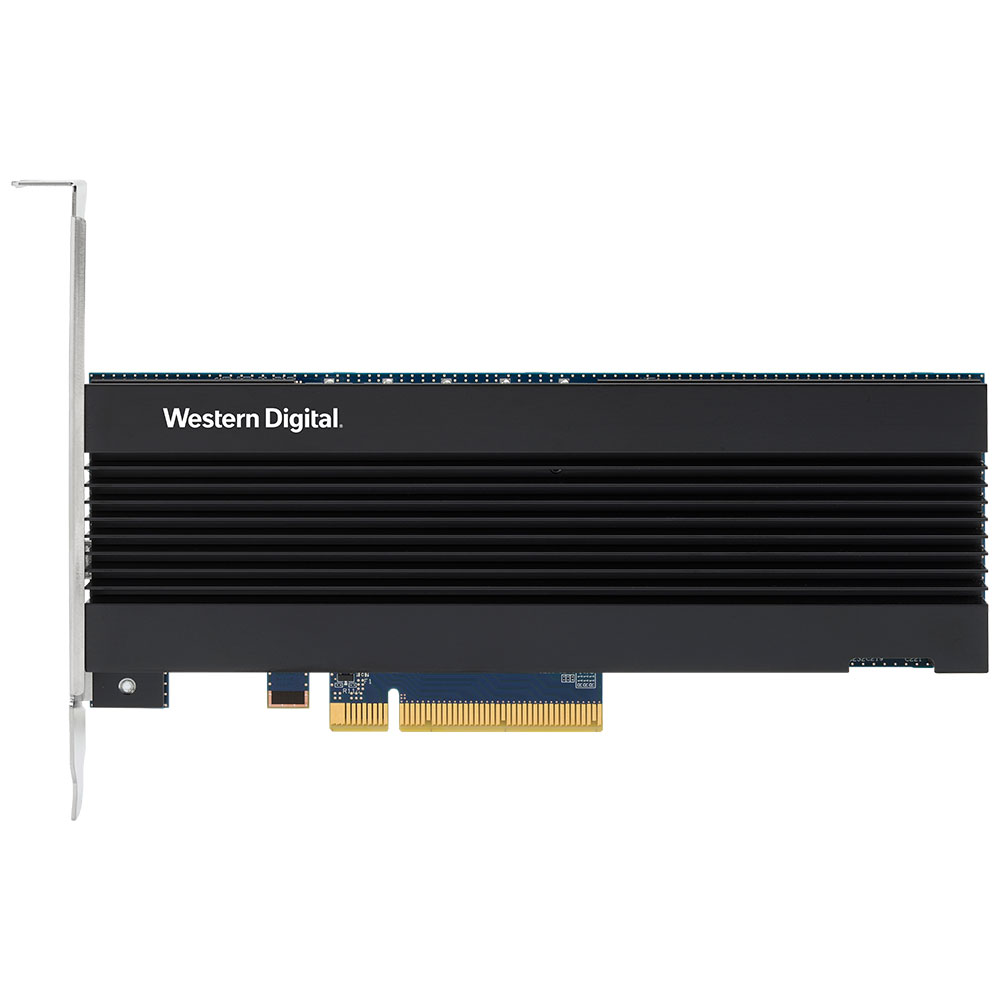

HH-HL Add-in Card
U.2 2.5-Inch Drive
General
Interface
PCIe 3.0 x8 NVMe 1.2
PCIe 3.0 x4 or 2x2 NVMe 1.2
Form Factor
HH-HL add-in card
U.2 2.5-inch drive
Capacity1
3 DW/D: 6.4TB / 3.2TB / 1.6TB
1 DW/D: 7.68TB / 3.84TB / 1.92TB
3 DW/D: 6.4TB / 3.2TB / 1.6TB / 800GB
1 DW/D: 7.68TB / 3.84TB / 1.92TB / 960GB
Maximum Terabytes Written (TBW)
3 DW/D: 35,040 / 17,520 / 8,760
1 DW/D: 14,016 / 7,008 / 3,504
3 DW/D: 35,040 / 17,520 / 8,760 / 4,380
1 DW/D: 14,016 / 7,008 / 3,504 / 1,752
Performance
Sequential Read (max MiB/s, 128KiB)
6,170
3,350
Sequential Write (max MiB/s, 128KiB)
2,200
2,100
Random Read (max IOPS, 4KiB)
1,200,000
835,000
Random Write (max IOPS, 4KiB)
3 DW/D: 200,000
1 DW/D: 75,000
3 DW/D: 200,000
1 DW/D: 75,000
Mixed Random Read/Write (max IOPS 70%R/30%W, 4KiB)
3 DW/D: 580,000
1 DW/D: 240,000
3 DW/D: 580,000
1 DW/D: 240,000
Write Latency 512B (µS)4
20
20
Reliability
Unrecoverable Bit Error Rate (UBER)
<1 in 1017
<1 in 1017
MTBF (M hours)5
2
2
Annualized Failure Rate (AFR)
0.44%
0.44%
Limited Warranty
5 years
5 years
Data Retention
3-month at 40°C
3-month at 40°C
Power
Requirement (DC, +/- 5%)
3.3V (aux) & 12V
3.3V (aux) & 12V
Operating (W,max)
25
25
Idle (W)
9
9
Physical Size
Z-Height (mm)
14.49
15
Dimensions (width x depth, mm)
167.65 x 68.9
100.45 x 69.85
Weight / without bracket (g, max)
230/229
184/NA
Environmental
Operating Temperature
0° to 55°C (Ambient)
0° to 70°C (Case)
Airflow (LFM)
300
NA
