| Max. Drives |
|
| Drive Interface |
|
| Available Drive Capacities |
| HDD up to 26TB CMR or 30TB SMR |
| SSD up to 3.84TB3 |
|
| Host Interface |

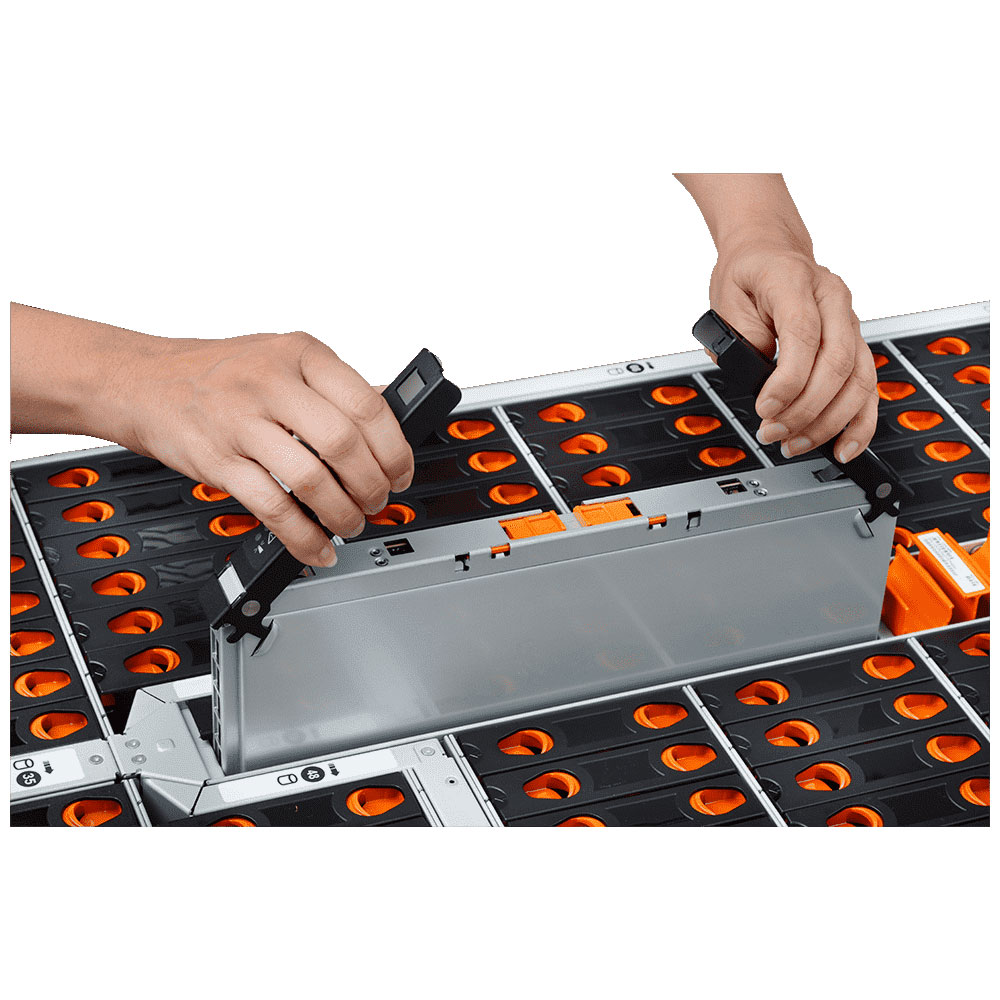

| Dual redundant I/O Modules (IOM) |
| 6 Mini-SAS HD ports per IOM |
|
| Management |
| SCSI Enclosure Services |
| Redfish (out of band, via RJ45) |
|

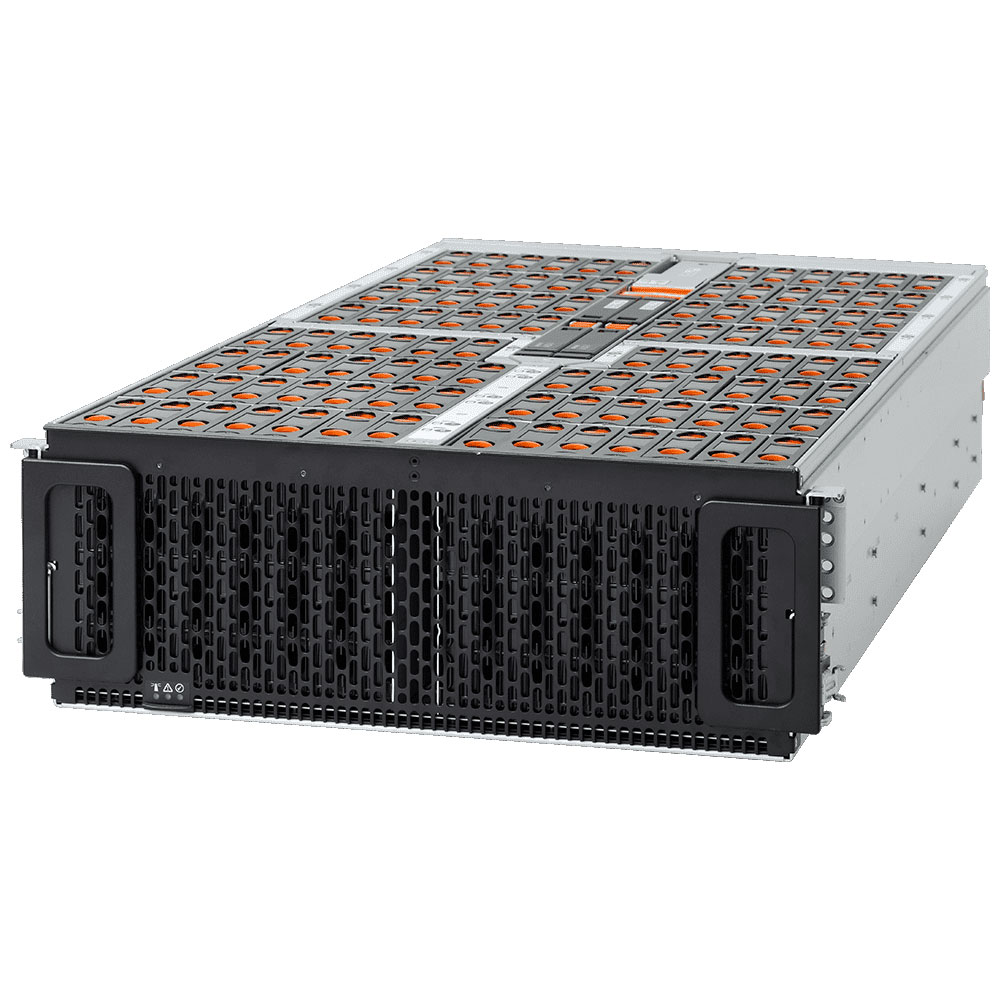

| Physical Dimensions |
| Height: 174.5mm (6.87") |
| Width: 447mm (17.60") |
| Depth: 1044.2mm (41.11") |
| Depth with CMA: Max of 1,191mm (46.89") w/ dual CMA |
|
| Weight |
| Product without drives: 47kg (103.6 lbs) |
| Product with 102 HDDs: 121.02kg (266.8 lbs) |
|
| Power |
| Platinum: Dual 200-240V AC, 1600W, 1800W |
| Titanium: Dual 200-240V AC, 1600W |
|
| Cooling |

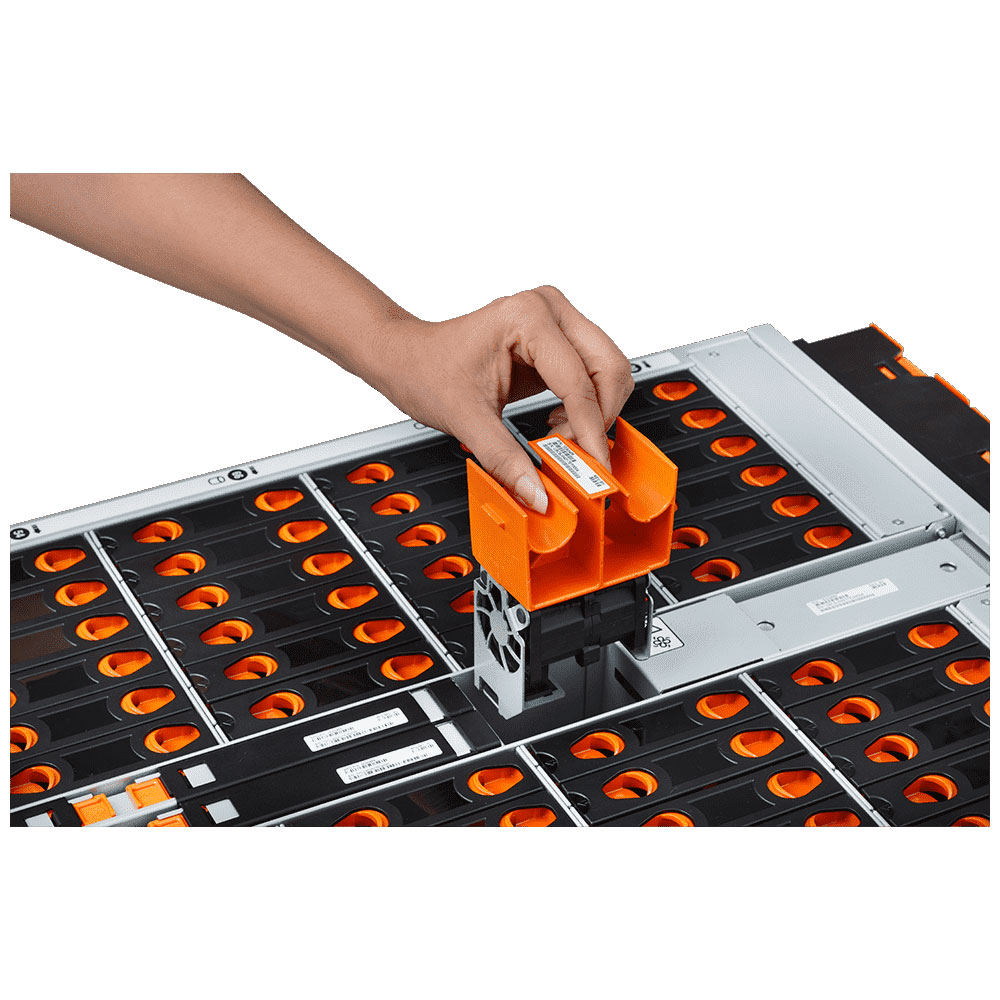

| 4 main enclosure fans, front-to-rear system cooling with zero-loss backflow prevention |
| 1 I/O module fan |

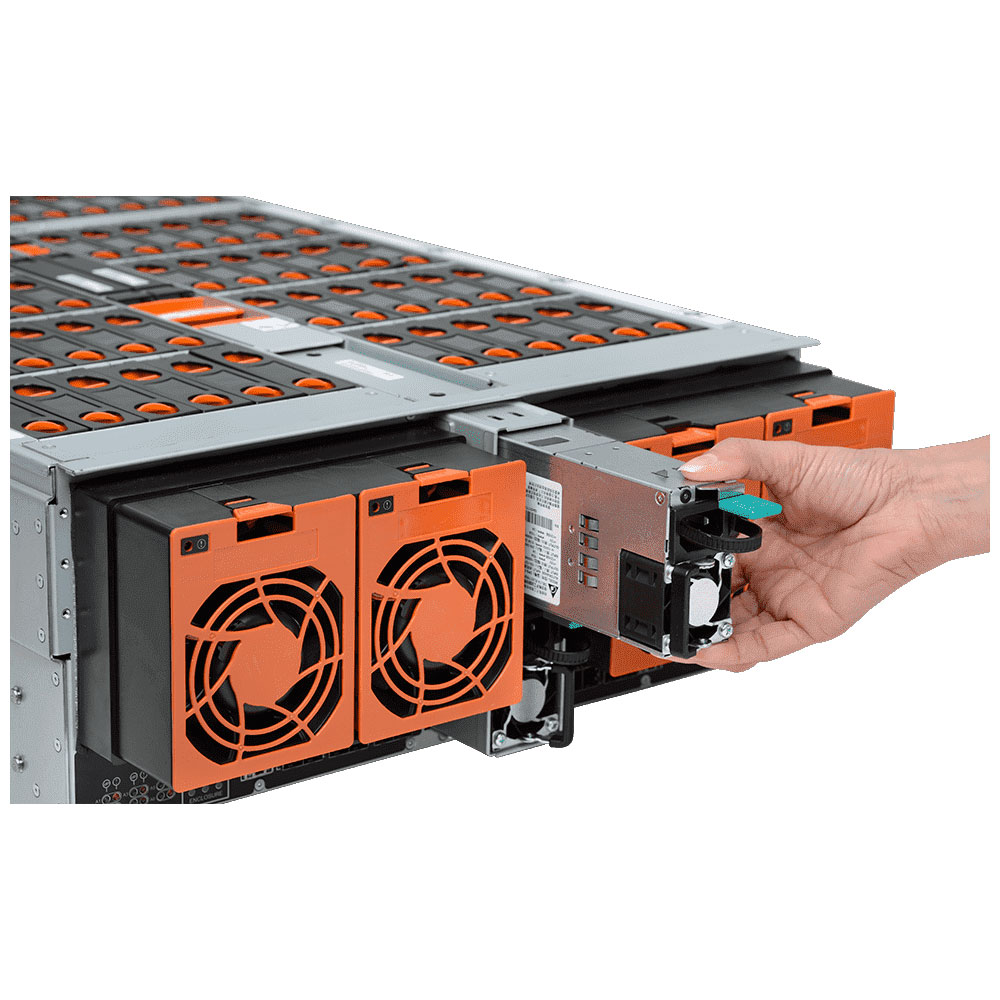

| Dual PSUs with built-in fans |
|
| LED Indicators |
| Front/Rear: Power, ID, Fault |
| Drive: Activity, Fault |
|
| Serviceability |

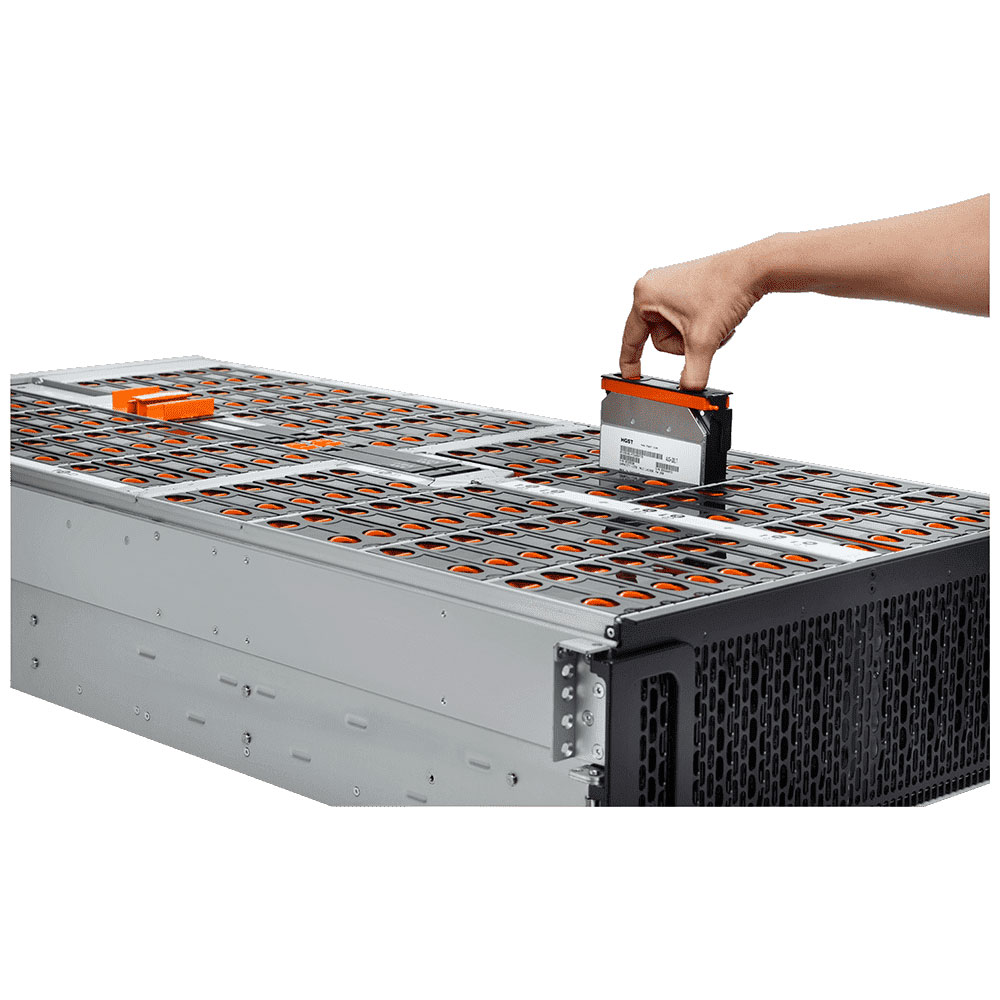

Cable-free hot-swappable IOM, power supply, fans, and drives |
| Environmental |
| Operating Temperature: 5 to 35°C |
| Non-op Temperature: -40 to 70°C |
| Humidity: 5% to 85% relative humidity |
| Operating Altitude: -300m to 3048m / -984 ft to 10,000 ft |
| Sound Power: < 7.2Bels @ 23±2°C |
|
