RAIDIX

Data Storage Software

Introduction

RAIDIX is an innovative software company developing professional storage solutions. We create products for storage environments where applications and services demand high speed access and operate with massive data volumes.
Raidix Logo

RAIDIX ERA

RAIDIX ERA is a software RAID that effectively works with SSD and NVMe drives. With I/O handling parallelization and lockless datapath, RAIDIX ERA utilizes maximum of hardware performance capabilities to help you get the highest performance rate.

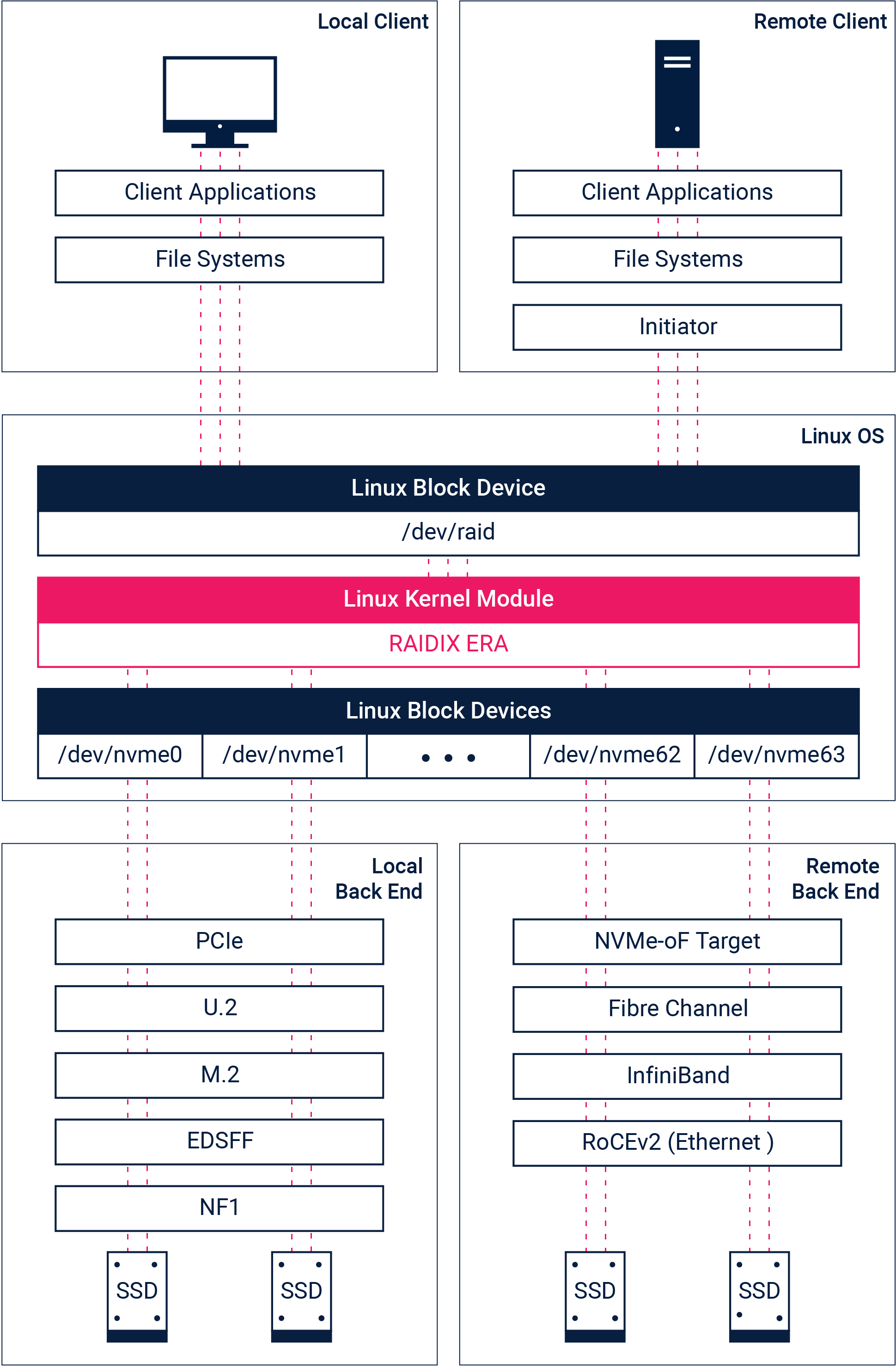

Raidix ERA Schema

Features

  • RAIDIX ERA is a software RAID presented by Linux kernel module and management utility (CLI).
  • Effectively works with SSD and NVMe drives
  • Installation by rpm / deb packages
  • Adjusted for the most popular Linux distribution (Ubuntu, CentOS, Oracle)
  • Works with local and remote drives
  • Provides RAID as a standard Linux block device
  • Helps you get the highest performance rate

RAIDIX ERA BENEFITS

High Performance

High Performance

55.8GB/s and 10 400 000 IOps

Latency less 0.5ms

No performance penalty in mixed I/O workloads

Low performance penalty in degraded mode

Usability and compatibility

Usability and compatibility

RAID 1, 0, 5, 6, 7.3, 10, 50, 60, 70

Works with local and remote drives

Clients get array as a block device

POSIX API support: no needs to adjust apps and file systems

Lightweight

Lightweight

Less 20% CPU usage under maximum array loading

Minimum RAM utilization: less 4 GB for full-featured work

Request Information

Talk to us for a Free Consultation

Call us today at +1 650-320-8000.
You can also email us at 'sales@asacomputers.com.com' or simply click on the 'Request Quote' button.
Request Quote

RDX Products

Features & Benifits

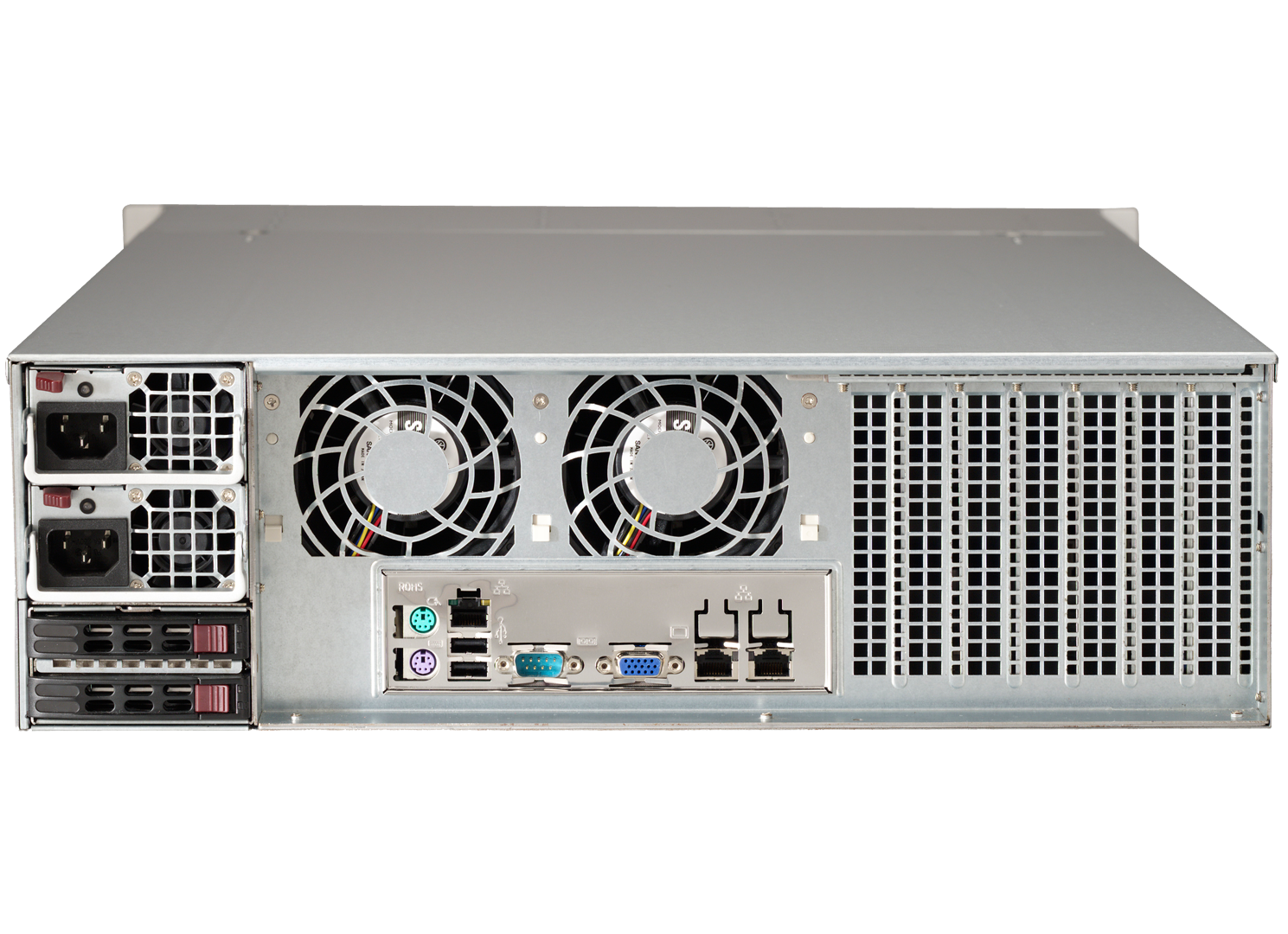

ASA's RDX-SC16 storage appliance features RAIDIX's proprietary RAID engine that can be configured for RAID 5, 6, 7.3 and N+M. The RDX-SC16 is ASA's base Software-Defined Storage system with additional bays for extended storage needs. It can support up to 100HD cameras in a CCTV environment, small studio Post-Production and SOHO storage backups.

RDX-SC16 is a high-performance storage solution suitable for multi-deployments from Video Surveillance to Post-Production Editing. This base system is equipped with 8x 12TB Hard Drives. For additional Hard Drive storage and Network Interfaces see available options below.

  • NAS (SMB/CIFS, NFS, FTP, AFP)
  • iSCSI
  • Up to 16 drives in the array
  • RAID 0/ 5/ 6/ 7.3/ 10/ N+M
  • Advanced Reconstruction
  • Silent Data Corruption Protection
  • Partial Reconstruction
  • Spare Drive Pools
  • Write-back cache protection with NVDIMM-N
  • 3 Year Basic Support
Technical Specifications
Server Type
3U Rackmount, 16 HD Bays, 2x CPU Intel Xeon 3104 6Core
CPU
Dual-Socket, INTEL XEON BRONZE 3104 6C 1.7GHz 8.25MB CPU
Operating System
RAIDIX (Linux based)
Memory
64GB RAM Memory
Storage
8 x 12TB 7200 RPM SATA DRIVE
Power Supply
1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
Options
Additional Storage - 12TB Hard Drive
Network Interface - 10Gb Ethernet, 10GBE SVR 2PT SFP+
Dimensions
Height
5.2" (132 mm)
Width
17.2" (437 mm)
Depth
25.5" (647 mm)
Gross Weight
72 lbs (32.66 kg)
Packaging (W x H x L)
26.6" (676 mm) x 13" (330 mm) x 39.9" (1013 mm)

For additional warranty options, including international coverage, please contact our Sales department at sales@rackapps.com or 650-230-8000.

Features & Benifits

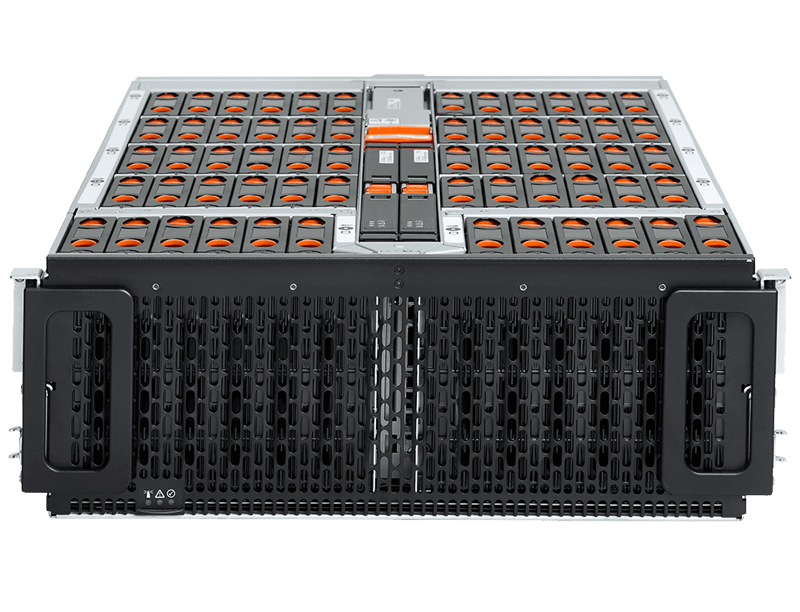

ASA's RDX-DC60 storage appliance features RAIDIX's proprietary RAID engine that can be configured for RAID 5, 6, 7.3 and N+M. RAID 7.3 has triple-parity distribution allowing data restoration even when 3 drives fail making the array extremely fault-tolerant. The RDX-DC60 is ASA's midrange Software-Defined Storage system with a total of 60 Bays for extended storage needs. It can support up to 1000HD cameras in a CCTV environment, Mid-size Post-Production studios, Mid-size Enterprise storage backups, Mid-size Clinics and Healthcare offices.

RDX-DC60 is a high-performance, fault-tolerant storage solution suitable for multi-deployments from Video Surveillance to Post-Production Editing. This midrange system is equipped with 60 x 12TB Hard Drives. For additional network interfaces, storage and extended support see available options below.

  • SMB/CIFS, NFS, FTP, AFP
  • SAN: FC 8/16/32G; IB; iSCSI; SAS
  • iSCSI
  • Up to 60 drives in the array
  • RAID 0/ 5/ 6/ 7.3/ 10/ N+M
  • Advanced Reconstruction
  • Silent Data Corruption Protection
  • Partial Reconstruction
  • Spare Drive Pools
  • Write-back cache protection with NVDIMM-N
  • 3 Year Basic Support
Technical Specifications
Server Type
1 - 1U Dual Socket Storage Server
1 - 60 Bay JBOD
CPU
Dual Socket Intel XEON 4110 8core 2.1GHz 11MB CPU
Operating System
RAIDIX (Linux based)
Memory
128GB RAM
Storage
2 x 240GB SSD for Controller SDS Software
Network
Dual LAN with Gigabit Ethernet
Power Supply
700W/750W Redundant Power Supplies with PMBus
Options
Network Interface - 10Gb Ethernet, 10GBE SVR 2PT SFP+
Technical Support (Software) - 3yr Extended Support
Dimensions
Height
6.89" (175 mm)
Width
17.61" (447 mm)
Depth
28.03" (712 mm)
Gross Weight with 60 HDDs
175 lbs (79.4 kg)

For additional warranty options, including international coverage, please contact our Sales department at sales@rackapps.com or 650-230-8000.

Features & Benifits

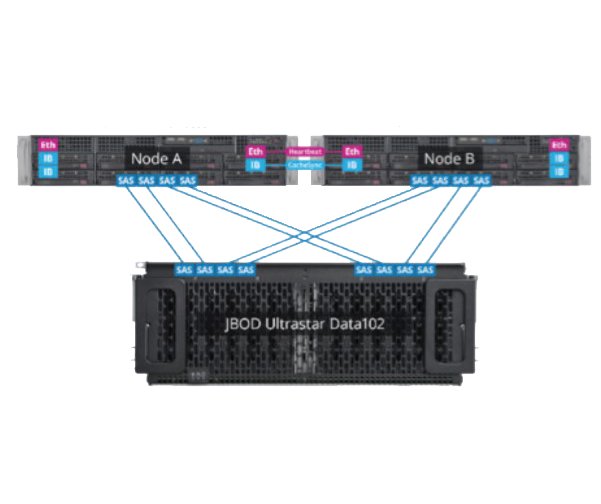

ASA's RDX-DC102 storage appliance features RAIDIX's proprietary RAID engine that can be configured for RAID 5, 6, 7.3 and N+M. RAID 7.3 has triple-parity distribution allowing data restoration even when 3 drives fail making the array extremely fault-tolerant. The RDX-DC102 is ASA's high-end Software-Defined Storage system with a total of 102 Bays for extended storage needs. It can support up to 1000HD cameras in a CCTV environment, Mid-size Post-Production studios, Mid-size Enterprise storage backups, Mid-size Clinics and Healthcare offices.

RDX-DC102is a high-performance, fault-tolerant storage solution suitable for multi-deployments from Video Surveillance to Post-Production Editing. This enterprise system is equipped with 102 x 12TB Hard Drives. For Network Interfaces and technical support see available options below.

  • Dual Controller NAS (SMB/CIFS, NFS, FTP, AFP)
  • iSCSI
  • Up to 102 drives in the array
  • RAID 0/ 5/ 6/ 7.3/ 10/ N+M
  • Advanced Reconstruction
  • Silent Data Corruption Protection
  • Partial Reconstruction
  • Spare Drive Pools
  • Write-back cache protection with NVDIMM-N
  • 3 Year Basic Support
Technical Specifications
Server Type

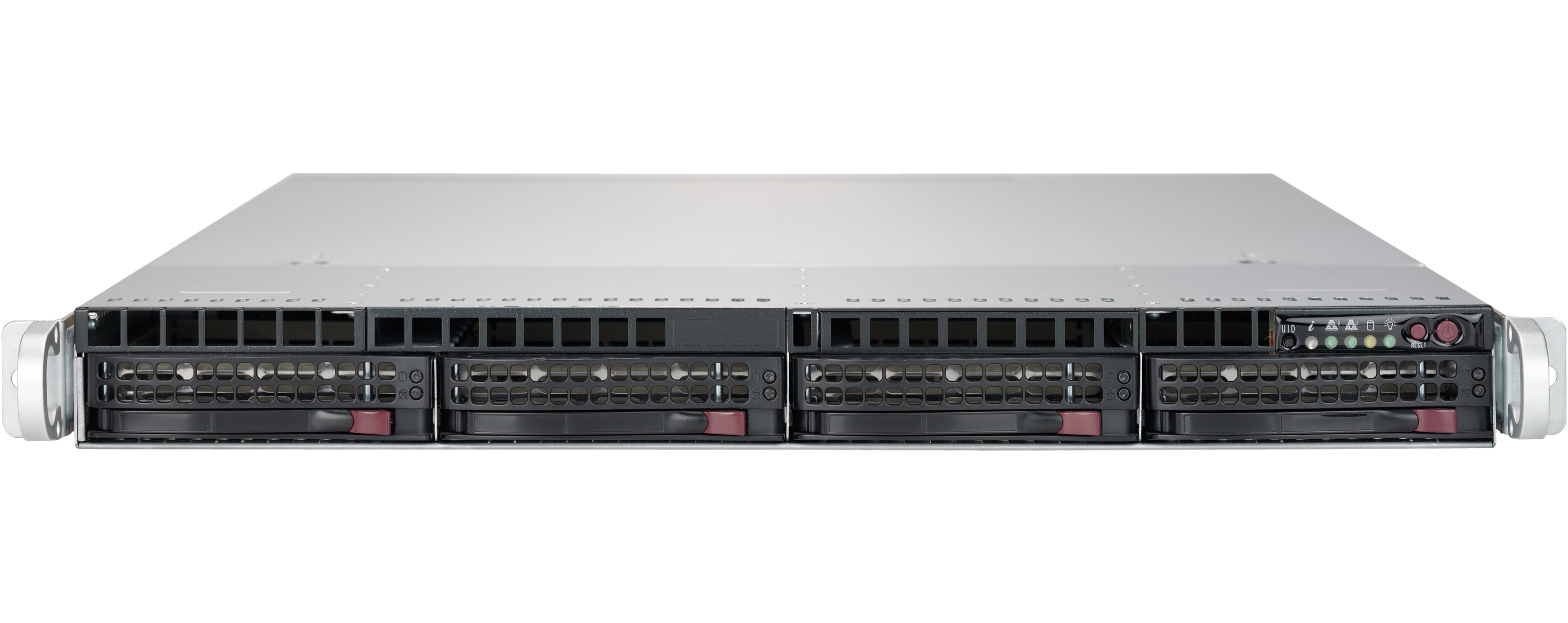

2 - 1U Dual Socket Controller Server

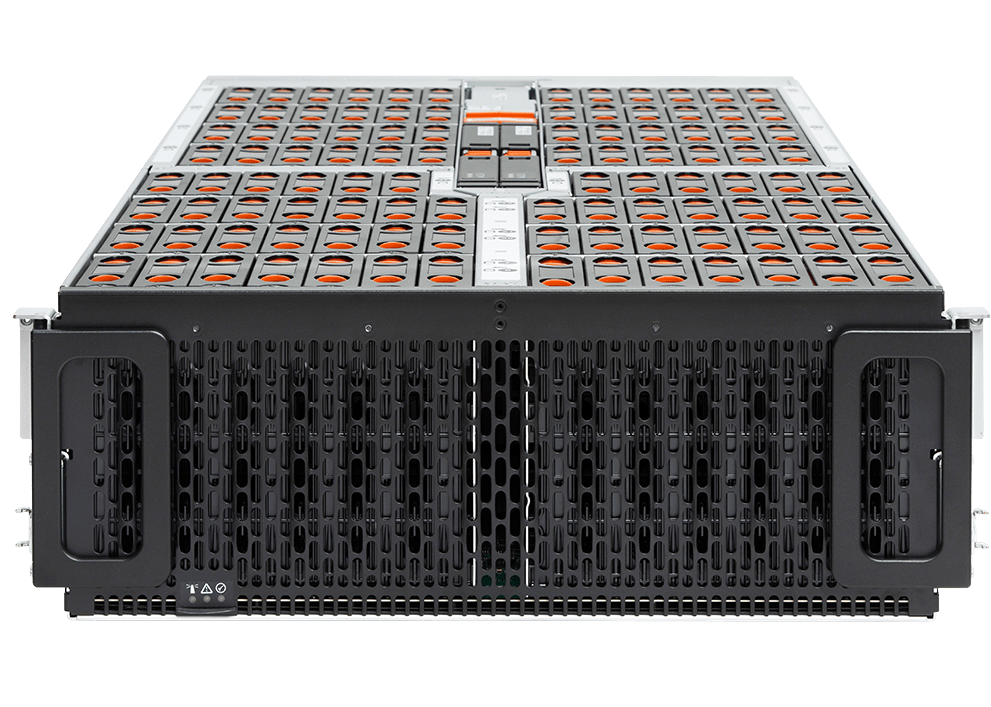

1 - 4U, 102 Bay JBOD
CPU
Dual Socket Intel XEON 4110 8core 2.1GHz 11MB CPU
Operating System
RAIDIX (Linux based)
Memory
128GB RAM
Storage
2 x 240GB SSD for Controller SDS Software
102 x 3.5" 12TB 7.2k RPM SAS 6Gb/sec
Network
Dual LAN with Gigabit Ethernet
Power Supply
700W/750W Redundant Power Supplies with PMBus
Options
Network Interface - - 10Gb Ethernet, 10GBE SVR 2PT SFP+

Technical Support (Software) - 3yr Extended Support
Dimensions - Controller Server
Height
1.7" (43 mm)
Width
17.2" (437 mm)
Depth
25.6" (650 mm)
Gross Weight
46 lbs (20.9 kg)
Dimensions - JBOD Platform
Height
6.89" (175 mm)
Width
17.61" (447 mm)
Depth
41.25" (1047 mm)
Depth in Rack
Max of 1197mm (47.13") w/ dual CMA-includes 2 SAS cables
Weight Product without drives
70 lbs (31.8 kg)
Weight Product with 102 HDDs
262 lbs (118.8 kg)

For additional warranty options, including international coverage, please contact our Sales department at sales@rackapps.com or 650-230-8000.

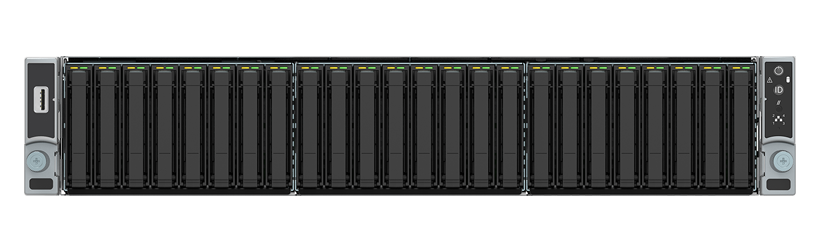

R2224WFTZS NVMe Storage Solution

Ready-to-Work NVMe Storage Solution

ASA Computers storage server powered by RAIDIX ERA is a useful and cost-effective building block for hosting providers' scaling infrastructures and enterprise data centers.
Business Value
  • Getting easy access to all the benefits of top-notch applications. Up to 10M IOps under mixed workloads is good enough for enterprise-grade tasks and applications.
  • Running all your business workflows smoothly. Performance penalty in degraded mode is less than 25% for RAID 50
  • Saving up to 50% of the costs of the drives. RAID 5 performance with 8 NVMe drives with RAIDIX ERA is about RAID 10 performance with 16 NVMe drives

NVMe Storage Solution

  • 2U, Spread Core Rack, Dual socket supports Intel® Xeon® Scalable Processors
  • 24 x Registered/Load Reduced DDR4 2666 MHz modules
  • 1x PCIe Gen3 x8
  • 24 x Hot-swap 2.5"
  • Enhanced Value Rail Mount kit not included
  • Single power supply included
  • 1300 W Redundant Power Supply Supported
  • Note: By default the system supports 8 drives. Please call us for 24 drives support. This will require the SAS Expander card and special cables
R2224WFTZS NVMe Storage Solution

RAIDIX 5.X

Software-defined storage for data intensive tasks and environments.

RAIDIX 5.X enables you to deploy all-flash and hybrid storage with high-speed block (SAN) and file (NAS) access. Empowered by innovative RAID technologies RAIDIX storage provides stable performance for data intensive tasks and keeps integrity of your business workflow.

MORE INFO →

RAIDIX 5.x

Product Features

Proprietary RAID Engine

Proprietary software RAID

RAIDIX software employs unique RAID engine having combination of record checksum calculation speed and providing the highest level of data availability

Proprietary RAID Engine

Adaptive Read-Ahead

Adaptive read-ahead is a data caching technology enabled to analyze incoming workload and predict it, and then put it into cache for overall system acceleration

Advanced Reconstruction

Advanced Reconstruction

Advanced Reconstruction automatically excludes the slowest drives from reading operations to keep a high level of total array performance

Partial Reconstruction

Partial Reconstruction

Partial Reconstruction significantly reduces total RAID recovery time after emergently drive removing or deliberate enclosure reconnection

Silent Data Corruption Protection

Silent Data Corruption Protection

System scans and fixes silent errors in background mode during reading operations from clients with no performance loss

Remote Replication

Remote Replication

The principal idea of this feature is creating synchronized copies of data in secondary data center to lower impact of threats by natural and man-driven disasters

Non-Volatile Memory NVDIMM

NVDIMM for Write-Back Cache Protection

It eliminates cache data loss in case of emergency power shutdown or critical hardware failure

SSD-Cache

SSD Cache

SSD cache is a simple and effective tool to improve data storage performance. System speed increases due to fast drives used as a buffer for frequently requested data.
