Introduction

ASA Computers is now a partner of Middle Canyon to offer a high-density GPU Server Solution to the market.

Middle Canyon designs, develops and represents embedded computing solutions. We enhance our partner's offerings with fully-integrated, flexible systems. Our engineering team works with our partners and customers to create custom solutions. Our vast knowledge of the world of embedded technologies, enables us to deliver complete application solutions using the highest quality industry standard products.

Klondike2020™ Platform

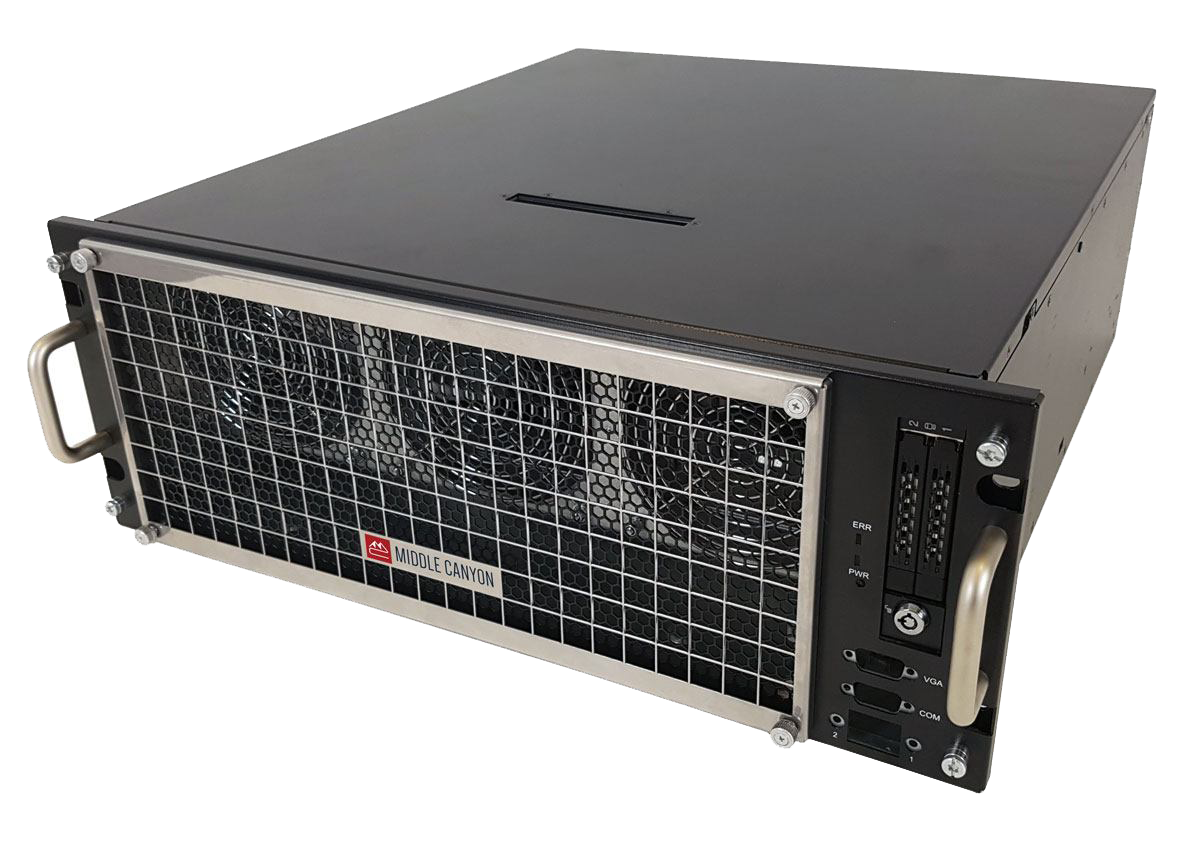

The Middle Canyon Klondike2020™ 20 Slot PCIe Chassis features the highest density, smallest footprint in the world today. The Klondike2020 is especially useful in the fields of Deep Learning, Artificial Intelligence and storage applications. It is tailored to deliver speedy results for high workloads generated by Big Data and Analytics, Control & Signal Processing, and Cyber Security. Middle Canyon harnesses our deep industry knowledge to develop products that best suit our customer's extreme needs.

This platform suits Afloat, Airborne, Expeditionary and Commercial/Data center applications. Its SWaP architecture makes for most efficient use of space. The system memory can be configured as memory, storage or both. Comes fully configured for your application, or you can build up your own platforms. With the Klondike2020, there is no need to buy expansion PCIe chassis or servers; you get it all in one small, powerful package.

MARKETS

  • Government
  • Healthcare
  • Deep Learning
  • Artificial Intelligence

Five Pillars

  • Memory Density
  • Processing Efficiency
  • Scalability
  • SWaP Reduction
  • Cost Savings

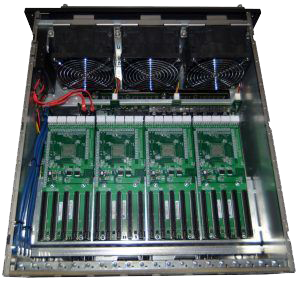

20 PCIe Slots

  • Gen 3 x 16 lanes
  • Network Adapters
  • Up to 700TB NVMe Storage in 4U
  • GPUs
  • FPGA / DSP
  • Variable configurations

Specifications

General
Model
Klondike2020™
GPUs
20 single slot GPUs, NVMe storage & I/O cards or 10 dual slot GPUs*
CPU
Dual Intel Skylake Xeon® Silver 4019T 2.0 - 3.0GHz or Gold 5120T 2.2 - 3.2GHz
Maximum Power Requirements
4x 2,000 watt N+1 hot swap power supplies, 8,000 watts total
System Memory
from 64G DDR4 to 24TBs of DDR4 type NVMe flash
Storage
2 x 2.5" SSD space
Network
Dual 10 GbE, 4 IB EDR, Infiniband / 100G with added I/O Ethernet card
Software
Windows or Linux
System Dimensions
20" D x 17.5" W x 4U H [508mm D x 444mm W x 131mm H]
Operating Temperature Range
50° - 95°F [10 - 35 °C]
* Extra power is supplied from the backplane via 8 or 6 pin short cable. Each slot has its own external power.
System Weight
Weight (lbs)
Weight w/o packaging
Weight with packaging
1 PSU
40.67
46.44
56.27
2 PSUs
43.16
48.93
58.76
4 PSUs
48.12
53.89
63.72

Applications

Deep Learning

  • Neural Networks in Finance
  • Image Recognition
  • Predicting Vulnerability Exploitation

Artificial Intelligence

  • Cybersecurity Defense
  • Health Care Benefits
  • Accounting And Fintech

Storage

  • NVMe
  • Blending NVMe with GPUs
  • Best flash utilization

Video Image Processing

  • Process data streams like video, speech, image faster
  • Leverage advanced object recognition technologies to locate threats faster, safer, and more accurately i.e. for self-driving cars and interactive robots

Cyber / Security

  • Detect anomalous behavior in network traffic to identify vulnerabilities
  • Analyze data-in-motion and at rest can help find new associations or uncover patterns and facts
  • Analyze internet, smart devices, and social media data to prevent criminal threats
  • Disrupt planned cyber and criminal activities

Cryptocurrencies

  • High power cryptocurrency mining
  • Blockchain management

Speech Recognition

  • GPU-accelerated deep learning recognizes words as well as people do
  • Reduced language model training times

Radar Signal Processing

  • Calculate over 400K glints per second

Finance

  • Correlate impact of economic trends and hedge funds related to portfolios
  • Campaign and conversion analysis
  • Analyze critical markets and evaluate credit worthiness

Oil and Gas

  • Manage, visualize and optimize exploration and production operations
  • Determine drilling and completion of wells
  • Predictive and reduce down-hole failures

Transportation

  • Real-time management of traffic patterns and congestion
  • Live monitoring of railroad conditions
  • Optimize long-haul trucking routes and load capacities

Healthcare

  • Analyze clinical trials, cross-trials, and drug compliance
  • Identify patient populations that could benefit from predictive outreach
  • Identify disease risk

Telco

  • Correlate call records with server performance data to spot problems in real-time and build ad targeting profiles
  • Analyze intra-day billing

Manufacturing

  • Leverage live streaming analytics on component functionality to ensure safety, avoid failures and validate warranty claims
  • Monitor real-time data feeds from laboratory and production-line machinery to identify catastrophic events and generate notification
  • Predict maintenance and monitor conditions

Retail

  • Analyze historical sales to determine geographic product demand for future inventory and store locations
  • Manage real-time supply chain for replenishment and inventory management
  • Manage ad-tech, geospatial tagging and customer preference recommendations

Ad Tech

  • Assess inventory availability
  • Optimize campaign management and conversion
  • Analyze campaign performance
