The compact, agile, and full featured MX5 Universal Routing Platform is ideally suited for enterprise and service provider applications, and is optimized for space and power constrained facilities. It is equipped with a Gigabit Ethernet Modular Interface Card (MIC) that permits flexible network connectivity, and a MS-MIC that provides dedicated support for comprehensive flow monitoring. The MX5 is also software upgradeable to deliver higher performance, port density, and additional services. This investment protecting approach enables customers to increase bandwidth, subscriber, and services scale while minimizing upfront costs.

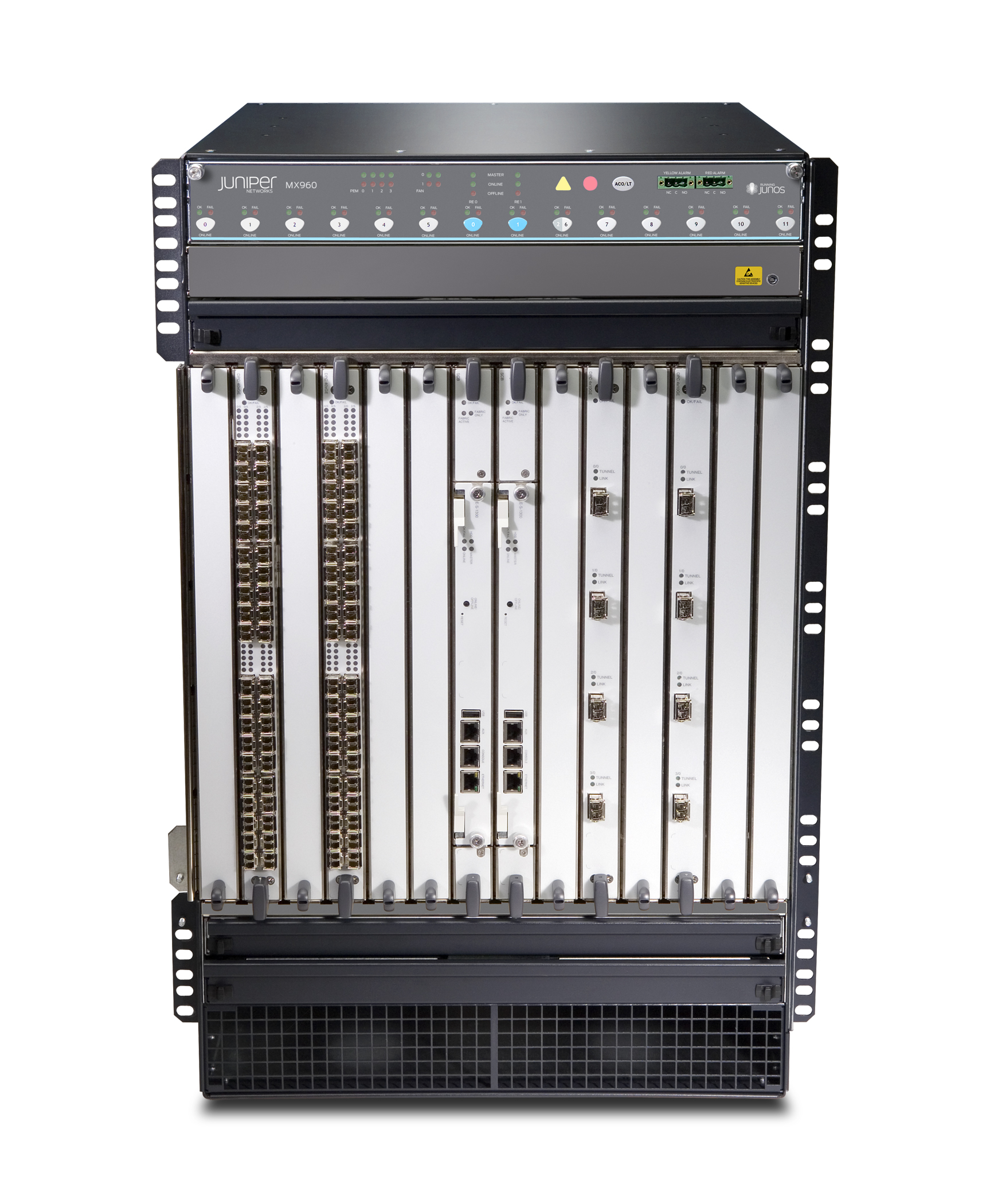

MX Series Universal Routing Platform
Product Overview
The continuous expansion of mobile, video, and cloud-based services is disrupting traditional networks and impacting the businesses that rely on them. While annual doubledigit traffic growth requires massive resource investments to prevent congestion and accommodate unpredictable traffic spikes, capturing return on that investment can be elusive. Emerging trends such as 5G mobility, Internet of Thing(IoT) communications, and the continued growth of cloud networking promise even greater network challenges in the near future. The Juniper Networks® MX Series Universal Routing Platform delivers the industry's first end-to-end infrastructure security solution for enterprises as they look to move business-critical applications to public clouds. Delivering features, functionality, and secure services at scale in the 5G era with no compromises, the MX Series is a critical part of the network evolution happening now.
Models
MX5
Overview
Specifications
| System Capacity | N/A | ||||
| Switch fabric capacity per slot | 20 Gbps | ||||
| DPCs and/or MPCs per chassis | One MIC slot with 20 port Gigabit Ethernet MIC enabled; separately purchased upgrade licenses permit use of second MIC slot and four 10-Gigabit Ethernet (10GbE) interfaces. | ||||
| Chassis per rack | 24 | ||||
| Dimensions (W x H x D) | Chassis: 17.5 x 3.5 x 23.5 in (44.5 x 8.9 x 59.6 cm) | ||||
| Maximum weight | 30 lb/13.7 kg | ||||
| Mounting | Front or center | ||||
| Power options | AC/DC: -40 to -72 VDC 100-240 VAC |
||||
| Operating temperature | 32° to 115° F (0° to 46° C) at sea level | ||||
| Humidity | 5 to 90 percent non-condensing | ||||
| Altitude | No performance degradation to 13,000 ft / 4,000 m | ||||

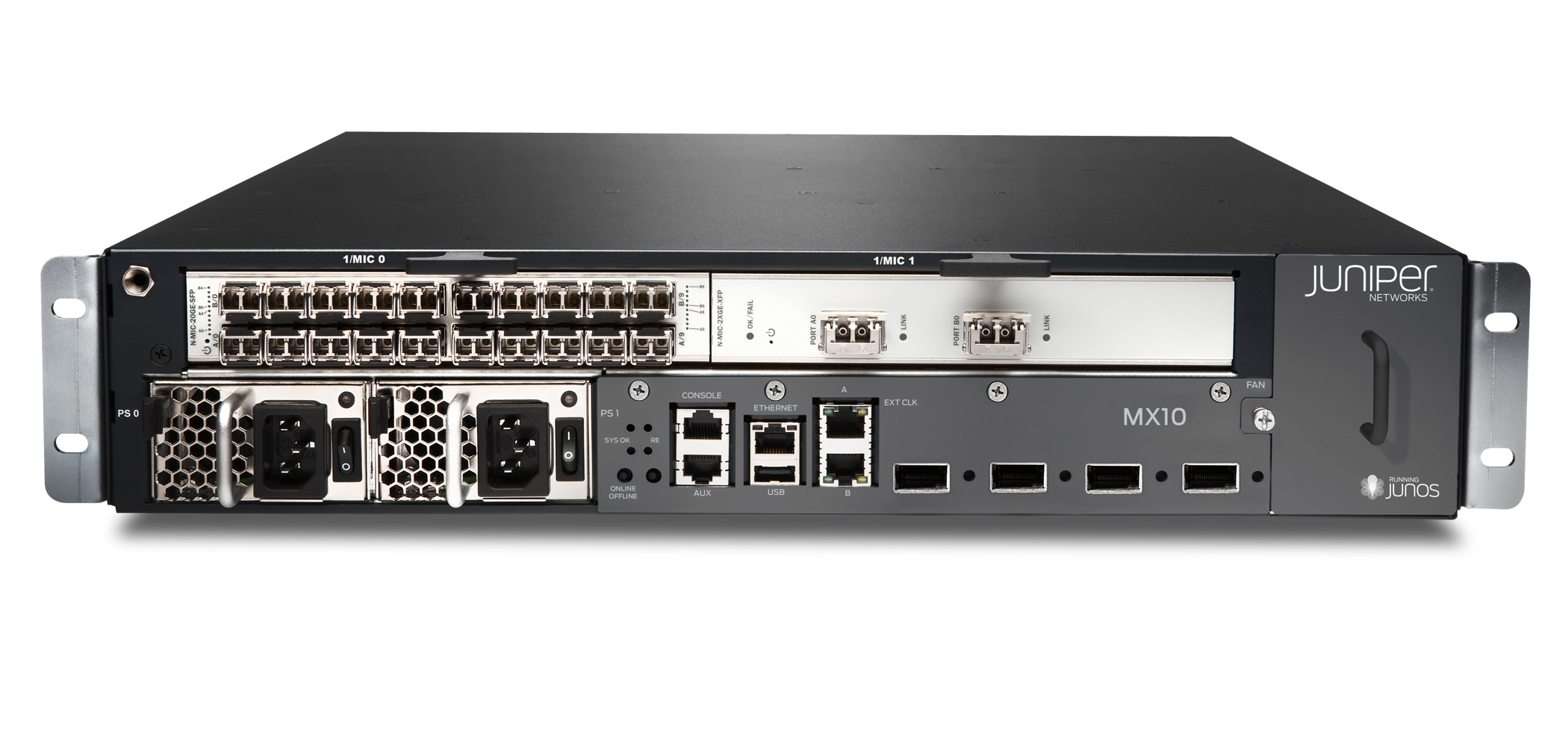

MX10
Overview
The compact, agile, and full-featured MX10 Universal Routing Platform is ideally suited for enterprise and service provider applications, and is optimized for space- and power-constrained facilities. It is equipped with Modular Interface Card (MIC) slots that permit flexible network connectivity, and a MS-MIC slot that optionally provides dedicated service support.
The MX10 is also software upgradeable to deliver higher performance, port density, and additional services. This investment protecting approach enables customers to increase bandwidth, subscriber, and services scale while minimizing upfront costs.
Specifications
| System Capacity | 40 Gbps | ||||
| Switch fabric capacity per slot | N/A | ||||
| DPCs and/or MPCs per chassis | Two MIC slots enabled; separately purchased upgrade licenses permit use of up to four 10GbE interfaces. | ||||
| Chassis per rack | 24 | ||||
| Dimensions (W x H x D) | Chassis: 17.5 x 3.5 x 23.5 in (44.5 x 8.9 x 59.6 cm) | ||||
| Maximum weight | 30 lb/13.7 kg | ||||
| Mounting | Front or center | ||||
| Power options | AC/DC: -40 to -72 VDC 100-240 VAC |
||||
| Operating temperature | 32° to 115° F (0° to 46° C) at sea level | ||||
| Humidity | 5 to 90 percent non-condensing | ||||
| Altitude | No performance degradation to 13,000 ft / 4,000 m | ||||

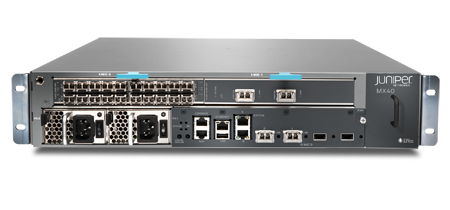

MX40
Overview
The compact, agile, and full-featured MX40 Universal Routing Platform is ideally suited for enterprise and service provider applications, and is optimized for space- and power-constrained facilities. It is equipped with built-in 10GbE ports and Modular Interface Card (MIC) slots that permit flexible network connectivity, and a MS-MIC slot for dedicated service support.
The MX40 is also software upgradeable to deliver 60 Gbps throughput, increased port density, and services. This investment protecting approach enables customers to increase bandwidth, subscriber, and services scale as needed, while minimizing upfront costs.
Specifications
| System Capacity | 60 Gbps | ||||
| Switch fabric capacity per slot | N/A | ||||
| DPCs and/or MPCs per chassis | Two MIC slots and two 10GbE interfaces enabled; separately purchased upgrade licenses permit use of up to two additional 10GbE interfaces. | ||||
| Chassis per rack | 24 | ||||
| Dimensions (W x H x D) | Chassis: 17.5 x 3.5 x 23.5 in (44.5 x 8.9 x 59.6 cm) | ||||
| Maximum weight | 30 lb/13.7 kg | ||||
| Mounting | Front or center | ||||
| Power options | AC/DC: -40 to -72 VDC 100-240 VAC |
||||
| Operating temperature | 32° to 115° F (0° to 46° C) at sea level | ||||
| Humidity | 5 to 90 percent non-condensing | ||||
| Altitude | No performance degradation to 13,000 ft / 4,000 m | ||||
