Edgecore

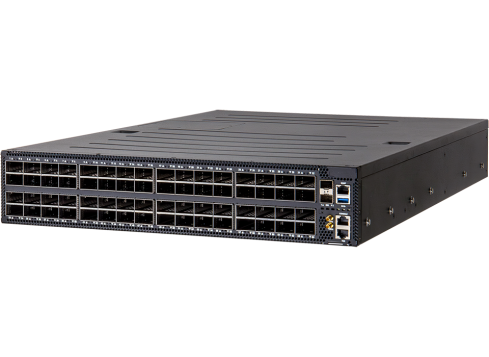

A next-generation, highest-capacity switch for data center spine use case. Breakout options include 2 x 400G, 4 x 200G, and 8 x 100G per port, with a maximum of 320 logical ports. Offers reduced cost and power per bit. Scalable and enables migration to 400G leaf connectivity in data centers.

• 64 x OSFP800 switch ports with Tomahawk 5

• 51.2 Tbps Bandwidth In a Single Device

• 64x800G or 128x400G Configuration Through Transceiver Type

• Up to 24 W power budget per OSFP800 port

• SyncE and PTP support with 1PPS, 10MHz, and ToD connectors on the front panel

• Hot-swappable, load-sharing, redundant 3000 W AC PSUs.
