Edgecore

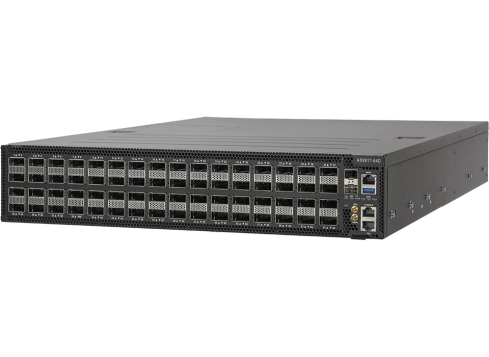

A next-generation, highest-capacity switch for data center spine use case. Breakout options include 2 x 400G, 4 x 200G, and 8 x 100G per port, with a maximum of 320 logical ports.

• 64 x QSFP-DD800 switch ports with Broadcom Tomahawk 5

• 51.2 Tbps ASIC bandwidth

• Quad-core Intel Xeon^® D1713NTE CPU

• 64x800G or 128x400G Configuration Through Transceiver Type

• Up to 24 W power budget per QSFP-DD800 port.

• SyncE and PTP support with 1PPS, 10MHz, and ToD connectors on the front panel

• Hot-swappable, load-sharing, redundant 3000 W AC PSUs.
