Introduction

ASA Computers is now a partner of Chenbro to offer rackmount server and storage chassis for hyperscale data center, enterprise, IoT, education, and surveillance applications

Chenbro is a leading company in design and manufacturing of rackmount server and storage chassis for hyperscale data center, enterprise, IoT, education, and surveillance applications. Founded in 1983, we have been the trailblazer in designing and manufacturing of own-brand rackmount system, tower server, and PC chassis for over 38 years.

Aside from our standard ‘off the shelf’ products, we also specialize in customization. Our modularized hard-tooled solutions had enabled us to win various project accolades & opportunities worldwide primarily due to the reliability of our products as well as our advanced and highly innovative solutions.
Chenbro Logo

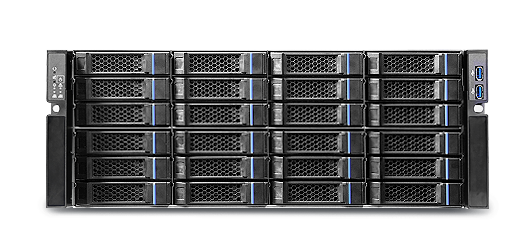

Rackmount Chassis

Chenbro's rackmount series provides high flexibility, scalability, and reliability with a tool-less and modularized design that can meet diverse demands.

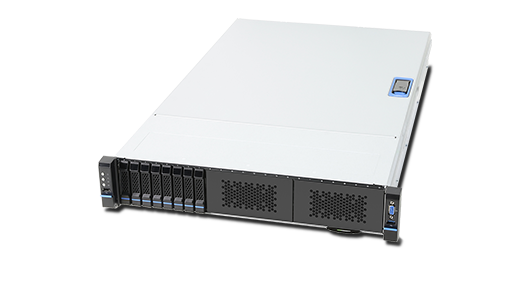

Barebone Server

Chenbro's barebone series supports hybrid flash array, powerful I/O, and thermal performance to meet all enterprise visualization and various applications.

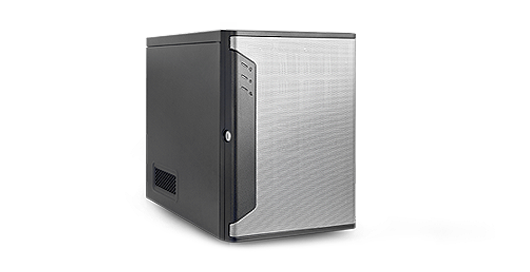

Tower Server Chassis

Chenbro's tower server provides a high function of anti-vibration mechanism to prevent data loss and thermal performance optimized for massive graphics workloads to SOHO and Small Biz Groups

Request a quick Chenbro's Quote

To receive a quick quote for your desired products please call us at +1 650-320-8000.
You can also email us at 'sales@asacomputers.com.com' or simply click on the 'Request Quote' button.
Request Quote

Chenbro Products

1U Ultimate Tuned Dual-Socket Barebone System

Accelerating Time to Market with Quality, Reliability and Performance

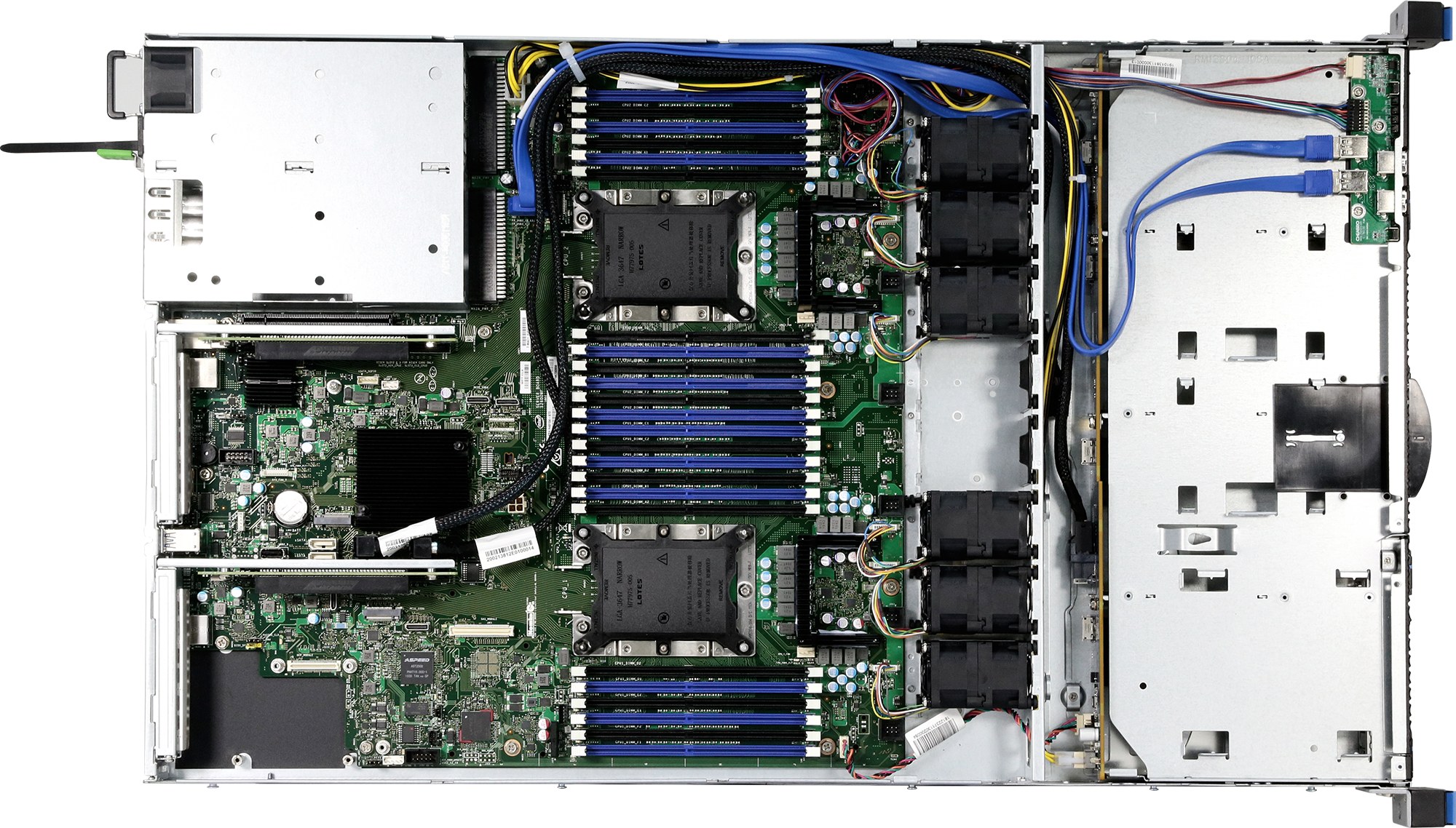

RB13804 Inside

Ready for Challenge

The RB13804 1U Barebones system utilizes the high-performance Intel 2600WFTR server board which supports the 2nd Generation Intel® Xeon® Scalable Processor family. This generation processor (LGA3647) is designed for high-performance scalability and supports various process of configuring and validating the components of solutions to meet specific customer requirements and a wide range workloads. An extremely high memory capacity, up to 7.5TB, plus an innovative tool-less design provides exceptional performance and reliability for business IT, datacenters, cloud and high-performance computing

Powerful Compute Networking Capacity

  • High memory capacity (Up to 24 DDR4 DIMMs)
  • Two riser slots support PCIe 3.0 add-in cards for high configuration flexibility (FHHL)
  • Networking flexibility via 10G SFP+ and 10GBase-T OCP mezzanine modules (Ethernet Adapters)
  • Supports direct-attached Onboard PCIe OCuLink

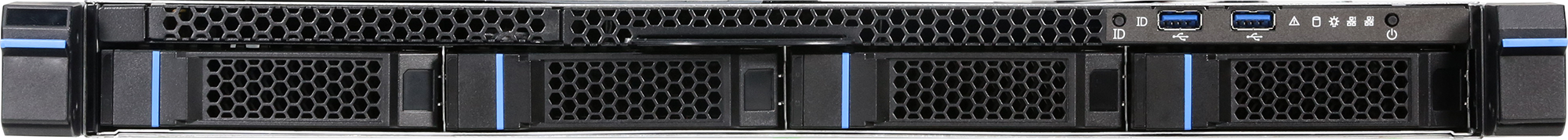

RB13804 Front

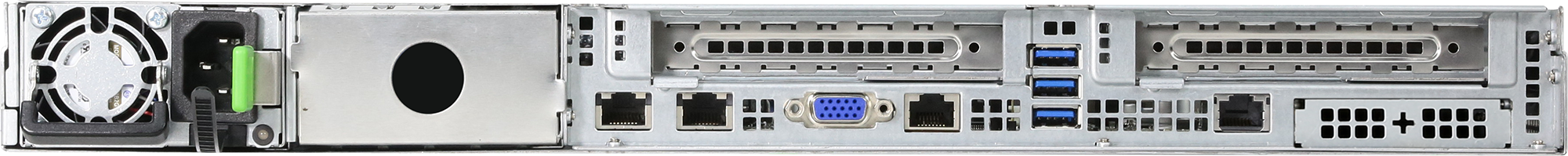

RB13804 Rear

Optimized Thermal Design to Reduce Unnecessary OPEX

  • Precise airflow distribution and customized airduct ensure performance stability under all levels of system loading with only six fans
  • Minimized power consumption and equipped with high-efficiency performance 80+ Platinum CRPS.
  • Advanced features of tool-less design allow swapping components straightforward and quickly with no downtime.

Technical Specification

CPU
Dual 2nd Generation Intel® Xeon® Scalable processors, up to 165W
MB
Intel S2600WFTR (Wolf Pass)
Memory
24 x DDR4 DIMM slot, 6 x channel per processor
Up to 7.5TB , DDR4 UDIMM ECC, 2933 MT/s, 1.2V
Dimension (D X W X H)
735.0 x 438.5 x 43.2 (mm) , 28.94" x 17.26" x 1.70"
Drive Bay
RB13804: 4 x 3.5" HDD (tri-mode), hot-swap
2 x 2.5" internal HDD/SSD, 1 x slim ODD
Cooling
40 x 56 mm (6), easy-swap fan, 22.5K RPM
Power
800W CRPS, 80+ Platinum (single unit default)
Indicators
1 x Power Status, 2 x LAN Activity, 1 x UID
Front I/O
1 x Power Status, 2 x LAN Activity, 1 x UID, 1 x System Alarm
2 x USB3.0
Rear I/O
1 x UID
2 x 10GbE Base-T, RJ-45, 1 x MGNT
3 x USB3.0
Expansion Slot
2 x FHHL
1 x I/O Module
1 x Integrated RAID Module
Security
TPM 2.0 support

1U Single Socket Entry-Level Compact Server

Offers the ease-of-use and cost-effective solution for daily workloads

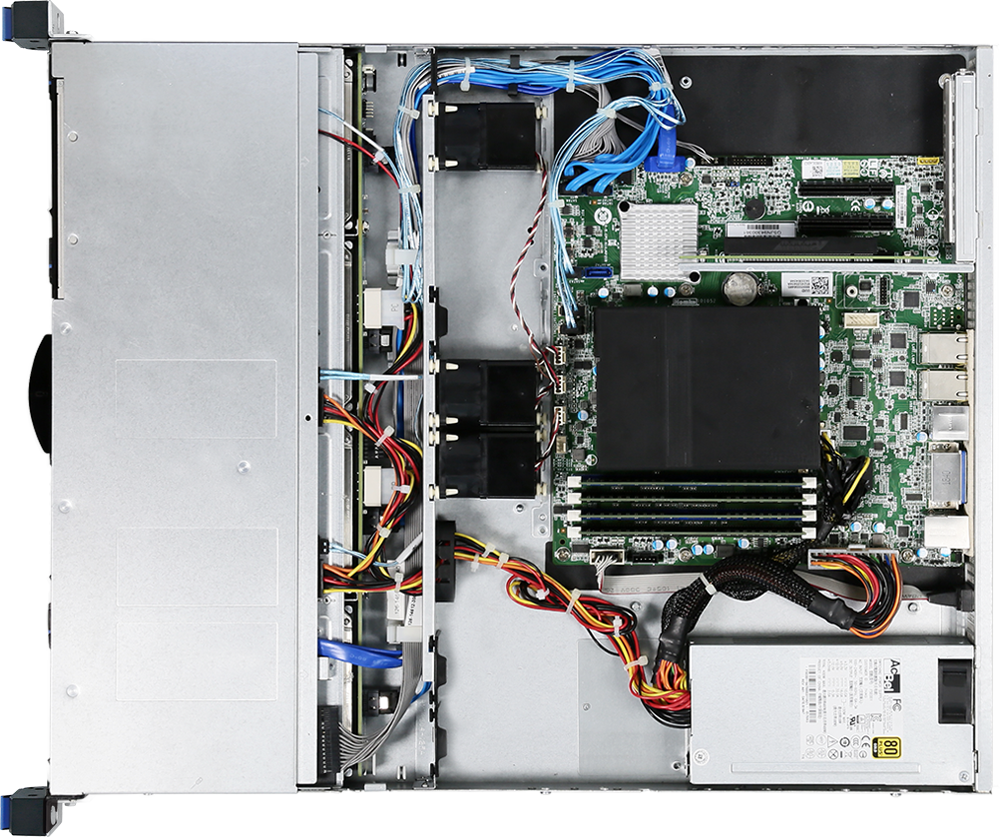

RB14604 Inside

1U All-in-One Compact Server

Compatible with the latest generation Intel Xeon processors, it fulfills the balance of performance, reliability and value. With support up to 8 cores, 16 threads, 5.0 GHz Intel Turbo Boost Technology, and 128GB DDR4 ECC 2666MHz memory, RB14604 delivers rapid processing

Simple and Flexible Scalability

This entry-level server is an ideal option for your daily workloads. By getting off to a fast start with simple and flexible deployment for diverse application, expansion could be easily accomplished with the storage options that support up to four hot-swap 2.5" or 3.5" HDDs, two internal 2.5" HDD bays, one slim ODD bay, and one PCIe Gen3 slot for the extra storage demand.

RB14604 Front

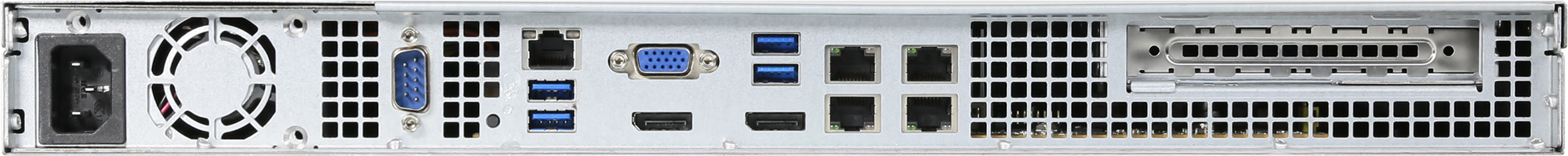

RB14604 Rear

Easy-of-Use for IT Maintenance

  • Toolless 2.5", 3.5" HDD trays and slim ODD bay save the maintenance cost.
  • RB14604 guarantees reliability with the strict manufacture and leading system validation, making your productivity soar with less interference and more stability

Technical Specification

MB
Intel M10JNP2SB (Juniper Pass)
CPU
Intel® Xeon® E processor, 95W Max TDP
Chipset
Intel® C246 chipset
Memory
4 x DIMM, Up to 128GB, DDR4 UDIMM ECC, 2666 MT/s, 1.2V
BMC
ASPEED* IPMI2.0 compliant AST 2500 BMC
Network
4 x 1GbE Base-T, RJ-45
1 X MGNT
Dimension
547.6 x 438.5 x 43.5 (mm)
21.56" x 17.26” x 1.71"
Drive Bay
4 x 3.5" Hot-swap
2 x 2.5" Internal (Option)
1 Slim ODD bay (Option)
Cooling Fan
3 x 40mm fan non hot-swap (Up to 4)
Storage Backplane
3.5" 4-port 12Gbps, SAS/SATA HDD
PSU Form Factor
400W Single PSU, 80+ Gold
Indicator
1 x Power Status, 2 x LAN Activity, 1 x UID
Front I/O
1 x Power On/Off, 1 x System Reset, 1 x UID, 2 x USB3.1 Gen1
Rear I/O
1 x UID, 4 x 1GbE Base-T, RJ-45, 1 x MGNT, 4 x USB 3.1 Gen2
Expansion Slot Opening
1 x PCIe Gen3 @ x8 Full height & Half Length
System Security
TPM 2.0

2U High-Performance Server with Flexibility for Expansion

Featured with the dual 2nd Generation Intel® Xeon® Scalable processors and 24 DIMMs, RB237 Series delivers large memory capacity and high efficiency with various modularized storage and patented toolless design for HPC solutions.

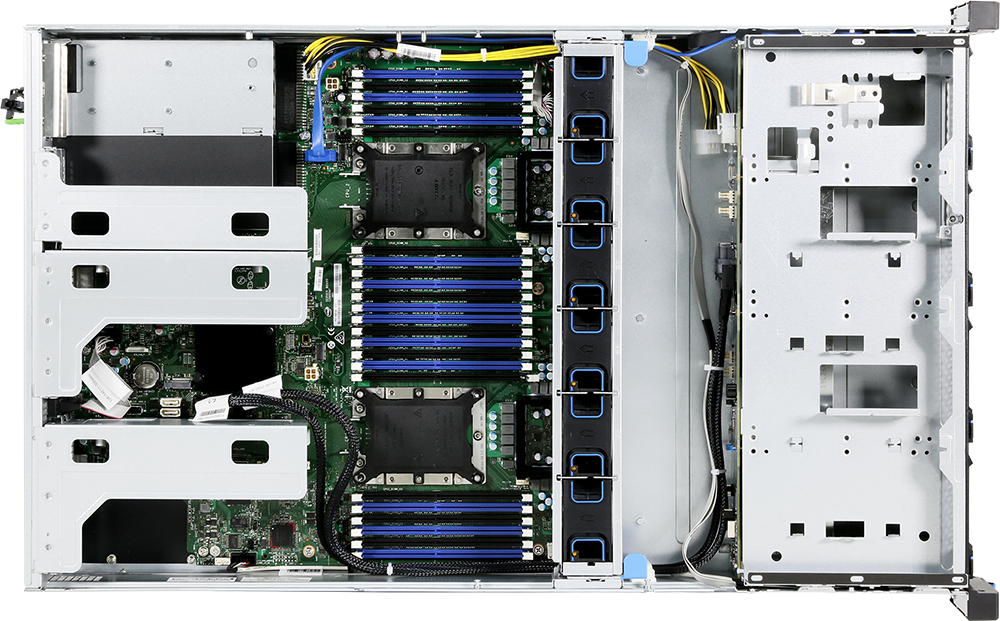

RB23708 Inside

Powerful Compute with Flexible Expansion

RB237 Series is equipped with the dual 2nd Generation Intel® Xeon®Scalable processors, flexible expansion including RAID module and one OCP, and fulfills up to 7.5TB DDR4 ECC DIMM 2933 MT/s memory capacity to meet the critical requirements of IT, appliance, data center, cloud, and HPC applications.

Modularized Storage and Toolless Design

As a pioneer of rackmount chassis architects, we aim to provide reliable and modularized rackmount server for your best cost efficiency. RB237 Series offers hot-swap 2.5" or 3.5" SAS/SATA HDD trays, toolless fan module, hot-swap fans, and slide rails to optimize your OPEX and IT maintenance.

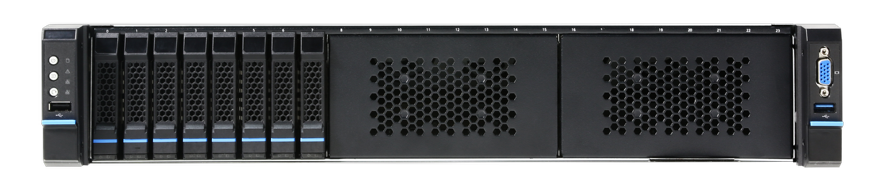

RB23708 Front

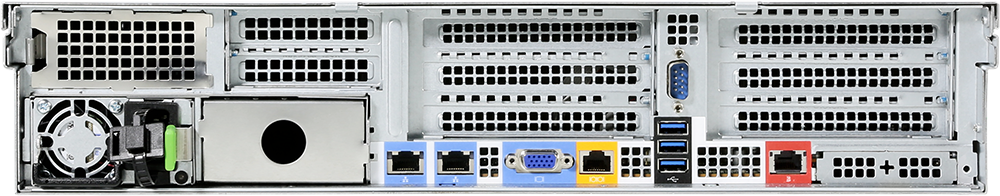

RB23708 Rear

Leverage with Intel® VROC for Your Data Security

RB237 Series leverages Intel® VROC CPU to adopt PCIe slots to connect SSDs/HDDs directly for RAID construction without HBA and performs data protection solutions.

Technical Specification

CPU
Dual 2nd Generation Intel® Xeon® Scalable processors, up to 165W
MB
Intel S2600WFTR (Wolf Pass)
Memory
24 x DDR4 DIMM slot, 6 x channel per processor
Up to 7.5TB, DDR4 UDIMM ECC, 2933 MT/s, 1.2V
Dimension (D x W x H)
735.0 x 438.0 x 87.0 (mm)
28.94" x 17.24" x 3.43"
Drive Bay
RB23708-U1: 8 x 3.5" HDD, hot-swap (2 x 2.5" internal HDD/SSD, 1 x slim ODD)
RB23708-U2: 8 x 2.5" HDD/SSD, hot-swap
RB23712: 12 x 3.5" HDD, hot-swap
Cooling Fan
60 x 38 mm (6), hot-swap, 17K RPM
Power
800W CRPS, 80+ Platinum (single unit default)
Indicators
1 x Power Status, 2 x LAN Activity, 1 x UID
Front I/O
1 x Power Status
2 x LAN Activity
1 x UID
1 x System Alarm
1 x USB2.0 + 1 x USB3.0
Rear I/O
1 x UID
2 x 10GbE Base-T
RJ-45
1 x MGNT
3 x USB3.0
Expansion Slot
4 x FHFL + 2 x FHHL + 2 x HHHL
1 x I/O Module
1 x Integrated RAID Module
Security
1 x Integrated RAID Module
