Server Products


High Availability Solutions

An AIC high-availability (HA) storage server is a continuously operational system that has dual controllers (or nodes) with each controller supporting its own motherboard, CPU, memory and add-in cards. AIC's HA servers operate in an active/active configuration where instances and requests are managed concurrently by both nodes, and in case of a failure with one of the nodes, the backup node takes over the increased load immediately and the failure is unlikely to be noticed by the user.

Features & Benefits

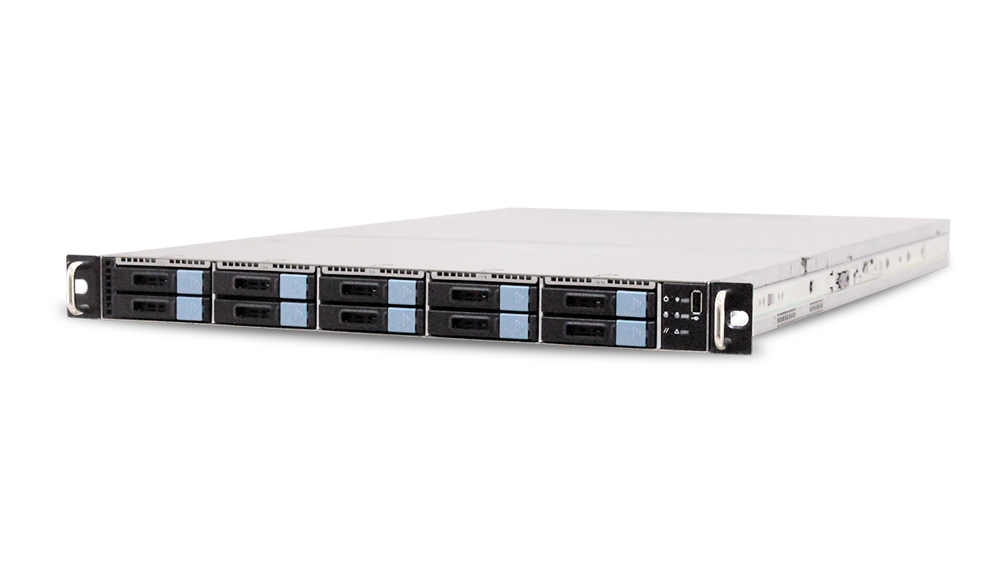

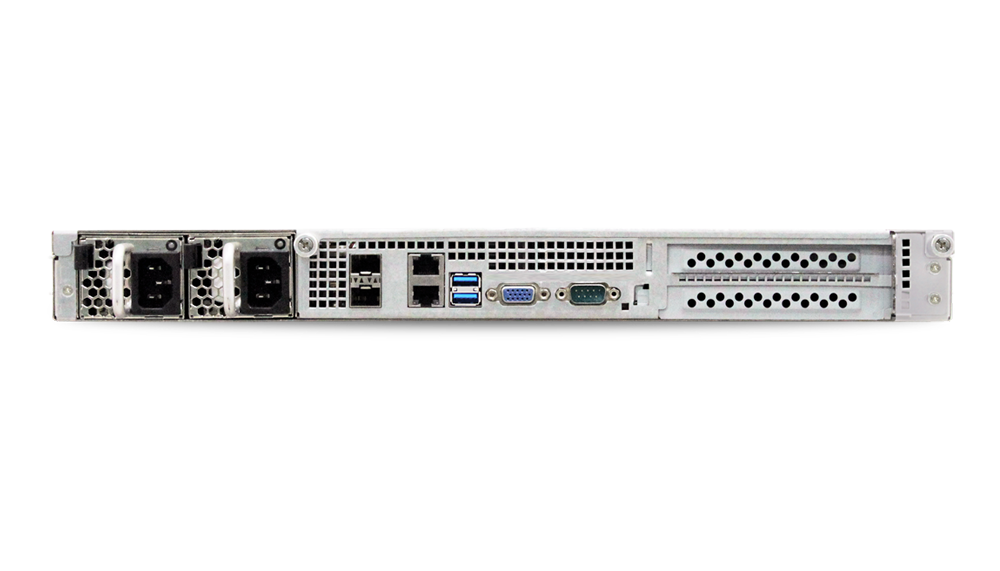

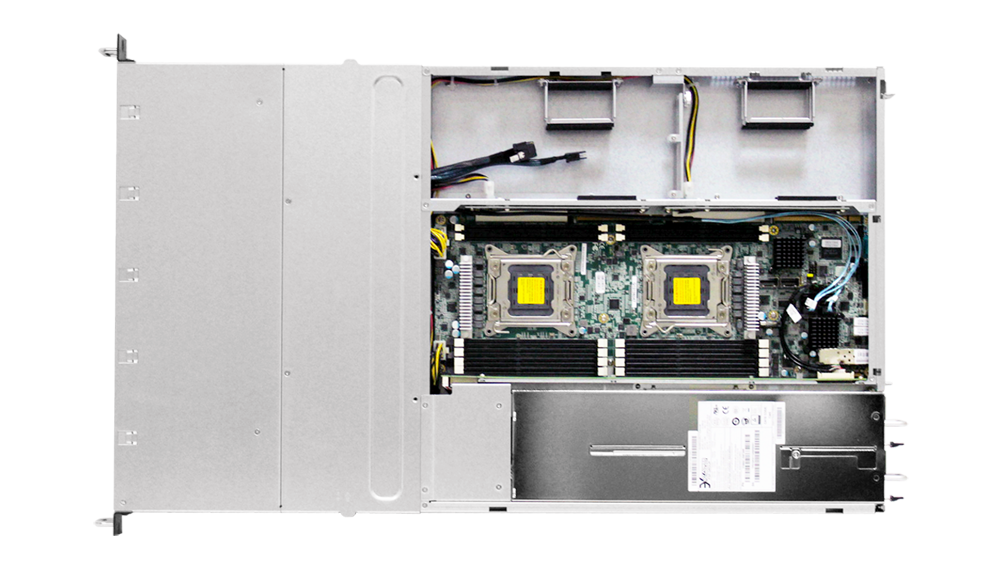

ASA1101-X2-R-AC , a 1U 10-Bay SFF Storage Server Solution, supports dual Intel® Xeon® processors E5-2600 v3/v4 Product Family. ASA1101-X2-R-AC has 10 x 2.5" (front) hard drive bays to provide high storage density. ASA1101-X2-R-AC harnesses MAX I/O™ technology, maximizing the usage of off-the-shelf expansion cards in the barebone.

Key Features

  • 1U 10-Bay storage server with the exceptionally high storage density
  • Supports two Intel® Xeon® Processors E5-2600 v3/v4 Product Family
  • With Intel® C612 Series Chipset to provide 5+ years product life cycle
  • Flexible IO usage with Max IO™ to support up to 4 COTS PCIe 3.0 cards in a 1U
  • Onboard Baseboard Management Controller for system management and IPMI control
  • Two 10 GbE SFP+ ports
  • Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
  • Customizable to meet your requirements

Dimensions (W x D x H) (with chassis ears)
  • mm : 482.6 x 787.4 x 44.4
  • inches : 19 x 31 x 1.75
Motherboard
AIC Server Board Phoenix
Processor
  • Processor Support : Two Intel® Xeon® Processors E5-2600 v3/v4 Product Family
  • QPI Speeds : 9.6 GT/s, 8.0 GT/s, 7.2 GT/s
  • Socket Type : Socket R3 (FCLGA2011-3)
Chipset Support
Intel® C612 Chipset
System Memory
  • 12 DIMM slots across 8 memory channels (4 memory channels per CPU; 2 channels with 2DPC and 2 channels with 1DPC)
  • 384GB DDR4 2133/1866 RDIMM DRx4
  • 96GB DDR4 2133/1866 RDIMM SRx4
  • 768GB DDR4 2133/1866 LRDIMM QRx4
  • 1536GB DDR4 2133/1866 LRDIMM 3DS 8Rx4
Front Panel
  • Power on/off
  • System ID
  • System reset
  • USB 2.0 Type A connector
LEDs
  • Power
  • System ID
  • Alert
Drive Bays
External : 10 x 2.5" hot swap
Backplane
1 x 10-port 6Gb SAS backplane with 3 SFF-8087 connectors
Expansion Slots (PCIe 3.0)
4 x8
Riser Card (included)
  • PSG-RC-TO1U-40-110 :
1U PCIe Gold-finger to 4 x PCIe x8
System BIOS
BIOS Type :
  • Insyde UEFI BIOS
  • SPI (Serial Peripheral Interface) FLASH Interface
BIOS Features :
  • ACPI
  • PXE
  • WOL
  • AC loss recovery
  • IPMI 2.0 KCS interface
  • SMBIOS
  • Serial console redirection
  • BIOS Boot Specification
  • BIOS Recovery Mode
  • SRIOV
  • PCIe Hotplug
  • iSCSI
  • TPM
  • PCIe NTB
On-board Devices
SATA :
  • Built-in SATA RAID controller on Intel® C612 Chipset with software RAID support
IPMI :
Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
  • Baseboard Management Controller
  • Intelligent Platform Interface 2.0 (IPMI 2.0)
  • iKVM, Media Redirection, IPMI over LAN, Serial over LAN
  • SMASH Support
Network Controllers :
  • Intel® 82599ES 10 GbE Controller, dual port, SFP+, PCIe v2.0 (5.0GT/s)
  • Intel® Ethernet Controller I210-AT, single port GbE controller, PCIe v2.1, 2.5 GT/s, x1
  • Intel® Ethernet Network Connection I217-LM, single port GbE, 1 Gbps
Graphics :
Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
  • PCIe VGA/2D Controller
  • 1920x1200@60Hz 32bpp
Rear I/O
  • 2 x 10 GbE SFP+
  • 2 x RJ45
  • 2 x USB 3.0 Type A
  • 1 x VGA
  • 1 x Serial
Power Supply
AC 650W 1+1 redundant high-efficiency power supply 80+ (90-264VAC, 47-63 Hz)
System Cooling
6 x 40x56mm 21500/18000 rpm hot swap fan modules
System Management
  • IPMI 2.0
  • KVM over IP
  • Media redirection
  • Temperature, fan, voltage, PSU sensor monitor
  • System temperature
  • System ID / System fail indicator
  • Remote power on/off/reset
  • SEL message alarm through mail
  • SNMP support
  • Intel NM
Environmental Specifications
  • Operating temperature : 0° - 35°C
  • Operating altitude condition : 0 ~ 10K feet
  • Storage temperature : -20° ~ 60°C
  • System relative humidity : 5% - 95% (38°C) non-condensing
Gross Weight (w/PSU & Rail)
  • kgs : 24
  • lbs : 53
Packaging Dimensions (W x D x H)
  • mm : 590 x 1130 x 273
  • inches : 23.2 x 44.5 x 10.7
Mounting
Standard : 28" tool-less slide rail

* All specifications are subject to change without notice.

Features & Benefits

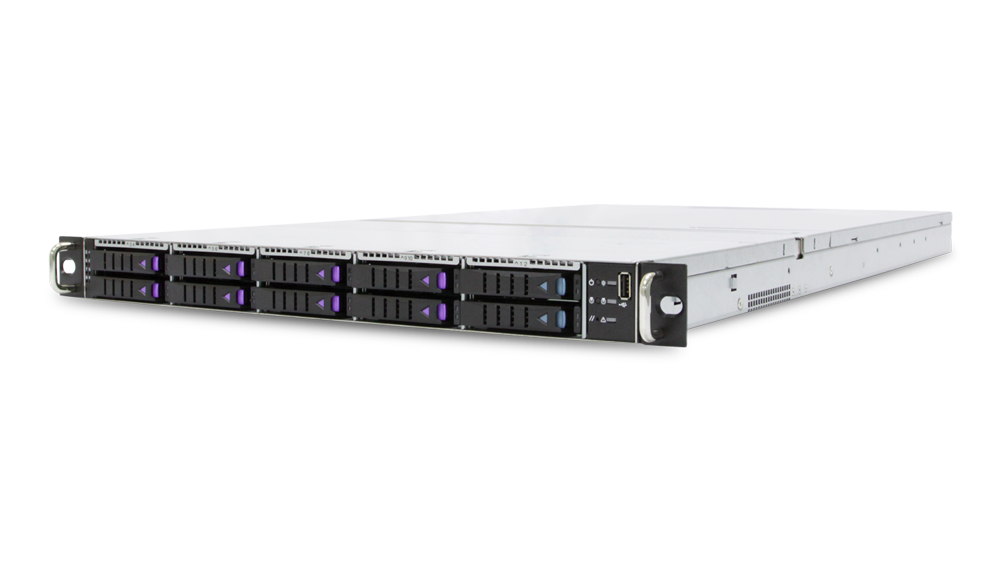

ASA1102-X2-R-AC, a 1U 10-Bay SFF Storage Server Solution, supports dual Intel® Xeon® processors E5-2600 v3/v4 Product Family. ASA1102-X2-R-AC has 8 x 2.5" PCIe SSD (front) + 2 x 2.5" (front) hard drive bays to provide a highly dense, hybrid storage solution. ASA1102-X2-R-AC harnesses MAX I/O™ technology, maximizing the usage of off-the-shelf expansion cards in the barebone.

Key Features

  • 1U 10-Bay storage server supports PCIe SSD 2.5" FF drives (NVMe) and SATA/SAS/SSD 2.5" drives to provide a highly dense, hybrid storage solution
  • Supports two Intel® Xeon® Processors E5-2600 v3/v4 Product Family
  • With Intel® C612 Series Chipset to provide 5+ years product life cycle
  • Flexible IO usage with Max IO™ to support up to 2 COTS PCIe 3.0 cards
  • Onboard Baseboard Management Controller for system management and IPMI control
  • Two 10 GbE SFP+ ports
  • Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
  • Customizable to meet your requirements

Dimensions (W x D x H) (with chassis ears)
  • mm : 482.6 x 787.4 x 44.4
  • inches : 19 x 31 x 1.75
Motherboard
AIC Server Board Phoenix
Processor
  • Processor Support : Two Intel® Xeon® Processors E5-2600 v3/v4 Product Family
  • QPI Speeds : 9.6 GT/s, 8.0 GT/s, 7.2 GT/s
  • Socket Type : Socket R3 (FCLGA2011-3)
Chipset Support
Intel® C612 Chipset
System Memory
  • 12 DIMM slots across 8 memory channels (4 memory channels per CPU; 2 channels with 2DPC and 2 channels with 1DPC)
  • 384GB DDR4 2133/1866 RDIMM DRx4
  • 96GB DDR4 2133/1866 RDIMM SRx4
  • 768GB DDR4 2133/1866 LRDIMM QRx4
  • 1536GB DDR4 2133/1866 LRDIMM 3DS 8Rx4
Front Panel
  • Power on/off
  • System ID
  • System reset
  • USB 2.0 Type A connector
LEDs
  • Power
  • System ID
  • Alert
Drive Bays
External : 10 x 2.5" hot swap (8 for PCIe SSDs)
Backplane
  • 4 x 2-port PCIe backplanes with dual SFF-8643 connectors on each
  • 1 x 2-port 6Gb SAS/SATA backplane with dual SATA connectors
Expansion Slots (PCIe 3.0)
2 x8
Riser Card (included)
  • PSG-RC-AR1U-20-XXX (PSG Code: PE1U03) :
1U PCIe Gold-finger to 1 x PCIe x16 + 2 x PCIe x8 (External)
  • PSG-RC-TO1U-28-110 (PSG Code: PEMS02) :
PCIe to SFF8643 for front PCIe SSD backplane connection
System BIOS
BIOS Type :
  • Insyde UEFI BIOS
  • SPI (Serial Peripheral Interface) FLASH Interface
BIOS Features :
  • ACPI
  • PXE
  • WOL
  • AC loss recovery
  • IPMI 2.0 KCS interface
  • SMBIOS
  • Serial console redirection
  • BIOS Boot Specification
  • BIOS Recovery Mode
  • SRIOV
  • PCIe Hotplug
  • iSCSI
  • TPM
  • PCIe NTB
On-board Devices
SATA :
  • Built-in SATA RAID controller on Intel® C612 Chipset with software RAID support
IPMI :
Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
  • Baseboard Management Controller
  • Intelligent Platform Interface 2.0 (IPMI 2.0)
  • iKVM, Media Redirection, IPMI over LAN, Serial over LAN
  • SMASH Support
Network Controllers :
  • Intel® 82599ES 10 GbE Controller, dual port, SFP+, PCIe v2.0 (5.0GT/s)
  • Intel® Ethernet Controller I210-AT, single port GbE controller, PCIe v2.1, 2.5 GT/s, x1
  • Intel® Ethernet Network Connection I217-LM, single port GbE, 1 Gbps
Graphics :
Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
  • PCIe VGA/2D Controller
  • 1920x1200@60Hz 32bpp
Rear I/O
  • 2 x 10 GbE SFP+
  • 2 x RJ45
  • 2 x USB 3.0 Type A
  • 1 x VGA
  • 1 x Serial
Power Supply
AC 650W 1+1 redundant high-efficiency power supply 80+ (90-264VAC, 47-63 Hz)
System Cooling
6 x 40x56mm 21500/18000 rpm hot swap fan modules
System Management
  • IPMI 2.0
  • KVM over IP
  • Media redirection
  • Temperature, fan, voltage, PSU sensor monitor
  • System temperature
  • System ID / System fail indicator
  • Remote power on/off/reset
  • SEL message alarm through mail
  • SNMP support
  • Intel NM
Environmental Specifications
  • Operating temperature : 0° - 35°C
  • Operating altitude condition : 0 ~ 10K feet
  • Storage temperature : -20° ~ 60°C
  • System relative humidity : 5% - 95% (38°C) non-condensing
Gross Weight (w/PSU & Rail)
  • kgs : 24
  • lbs : 53
Packaging Dimensions (W x D x H)
  • mm : 590 x 1130 x 273
  • inches : 23.2 x 44.5 x 10.7
Mounting
Standard : 28" tool-less slide rail

* All specifications are subject to change without notice.

Features & Benefits

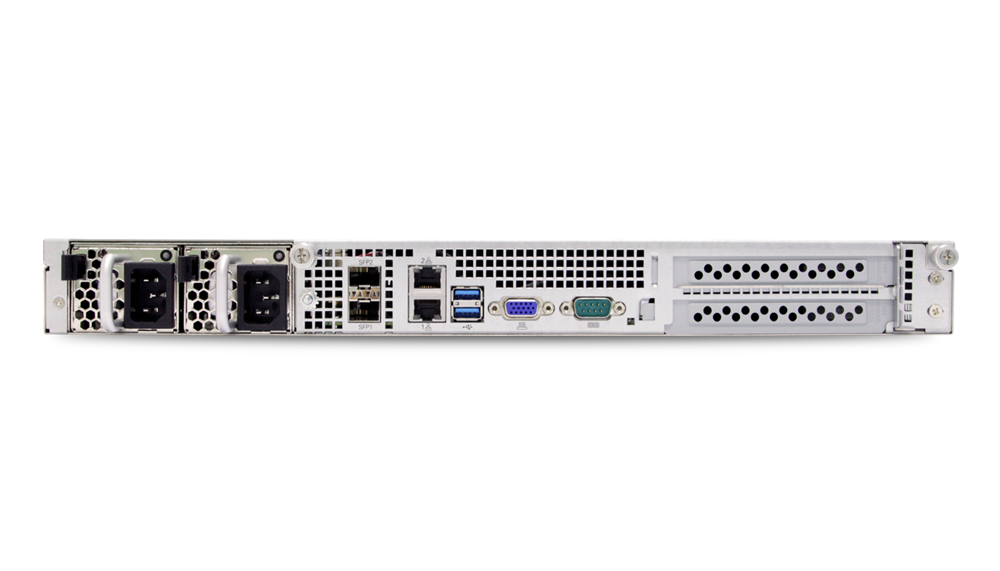

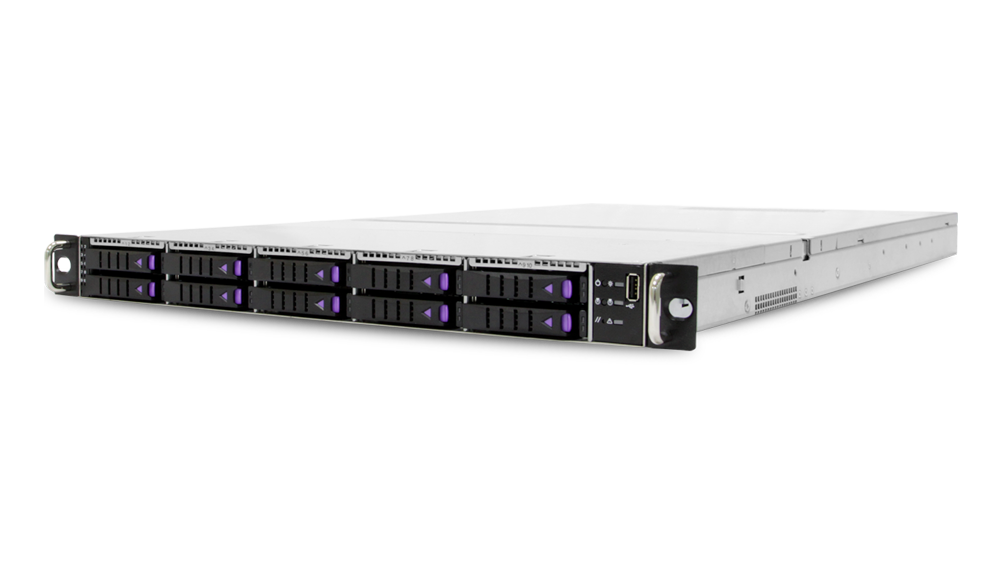

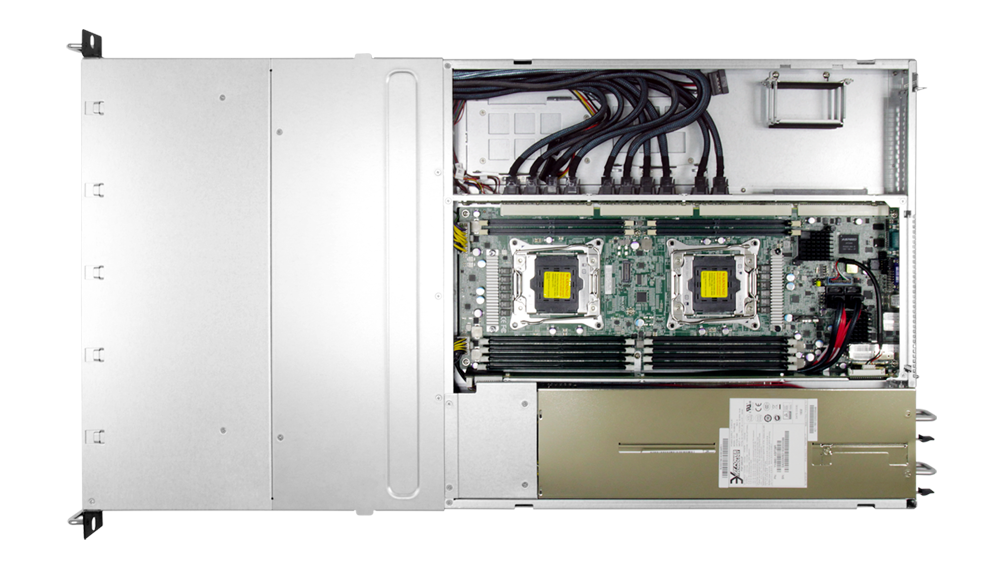

ASA1103-X2-R-AC, a 1U 10-Bay SFF Storage Server Solution, supports dual Intel® Xeon® processors E5-2600 v3/v4 Product Family. ASA1103-X2-R-AC has 10 x 2.5" PCIe SSD hard drive bays to provide a highly dense, hybrid storage solution. ASA1103-X2-R-AC harnesses MAX I/O™ technology, maximizing the usage of off-the-shelf expansion cards in the barebone.

Key Features

  • 1U 10-Bay storage server supports 10 PCIe SSD 2.5" FF drives (NVMe) to provide a highly dense, all NVMe Flash storage array
  • Supports two Intel® Xeon® Processors E5-2600 v3/v4 and next generation Product Family
  • With Intel® C612 Series Chipset to provide 5+ years product life cycle
  • Flexible IO usage with Max IO™ to support up to 2 COTS PCIe 3.0 cards
  • Onboard Baseboard Management Controller for system management and IPMI control
  • Two 10 GbE SFP+ ports
  • Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
  • Customizable to meet your requirements

Dimensions (W x D x H) (with chassis ears)
  • mm : 482.6 x 787.4 x 44.4
  • inches : 19 x 31 x 1.75
Motherboard
AIC Server Board Phoenix
Processor
  • Processor Support : Two Intel® Xeon® Processors E5-2600 v3/v4 and next generation Product Family
  • QPI Speeds : 9.6 GT/s, 8.0 GT/s, 7.2 GT/s
  • Socket Type : Socket R3 (FCLGA2011-3)
Chipset Support
Intel® C612 Chipset
System Memory
  • 12 DIMM slots across 8 memory channels (4 memory channels per CPU; 2 channels with 2DPC and 2 channels with 1DPC)
  • 384GB DDR4 2133/1866 RDIMM DRx4
  • 96GB DDR4 2133/1866 RDIMM SRx4
  • 768GB DDR4 2133/1866 LRDIMM QRx4
  • 1536GB DDR4 2133/1866 LRDIMM 3DS 8Rx4
Front Panel
  • Power on/off
  • System ID
  • System reset
  • USB 2.0 Type A connector
LEDs
  • Power
  • System ID
  • Alert
Drive Bays
External : 10 x 2.5" hot swap PCIe SSDs
Backplane
  • 5 x 2-port PCIe backplanes with dual SFF-8643 connectors on each
Expansion Slots (PCIe 3.0)
1 x16, 1 x8
Riser Card (included)
  • PSG-RC-PH1U-2N-110 :
1U PCIe Gold finger x16 to 1 PCIe x16, 1 PCIe x8 and 10 PCIe x4 (SFF-8643) for NVMe
System BIOS
BIOS Type :
  • Insyde UEFI BIOS
  • SPI (Serial Peripheral Interface) FLASH Interface
BIOS Features :
  • ACPI
  • PXE
  • WOL
  • AC loss recovery
  • IPMI 2.0 KCS interface
  • SMBIOS
  • Serial console redirection
  • BIOS Boot Specification
  • BIOS Recovery Mode
  • SRIOV
  • PCIe Hotplug
  • iSCSI
  • TPM
  • PCIe NTB
On-board Devices
SATA :
  • Built-in SATA RAID controller on Intel® C612 Chipset with software RAID support
IPMI :
Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
  • Baseboard Management Controller
  • Intelligent Platform Interface 2.0 (IPMI 2.0)
  • iKVM, Media Redirection, IPMI over LAN, Serial over LAN
  • SMASH Support
Network Controllers :
  • Intel® 82599ES 10 GbE Controller, dual port, SFP+, PCIe v2.0 (5.0GT/s)
  • Intel® Ethernet Controller I210-AT, single port GbE controller, PCIe v2.1, 2.5 GT/s, x1
  • Intel® Ethernet Network Connection I217-LM, single port GbE, 1 Gbps
Graphics :
Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
  • PCIe VGA/2D Controller
  • 1920x1200@60Hz 32bpp
Rear I/O
  • 2 x 10 GbE SFP+
  • 2 x RJ45
  • 2 x USB 3.0 Type A
  • 1 x VGA
  • 1 x Serial
Power Supply
AC 650W 1+1 redundant high-efficiency power supply 80+ (90-264VAC, 47-63 Hz)
System Cooling
6 x 40x56mm 21500/18000 rpm hot swap fan modules
System Management
  • IPMI 2.0
  • KVM over IP
  • Media redirection
  • Temperature, fan, voltage, PSU sensor monitor
  • System temperature
  • System ID / System fail indicator
  • Remote power on/off/reset
  • SEL message alarm through mail
  • SNMP support
  • Intel NM
Environmental Specifications
  • Operating temperature : 0° - 35°C
  • Operating altitude condition : 0 ~ 10K feet
  • Storage temperature : -20° ~ 60°C
  • System relative humidity : 5% - 95% (38°C) non-condensing
Gross Weight (w/PSU & Rail)
  • kgs : 24
  • lbs : 53
Packaging Dimensions (W x D x H)
  • mm : 590 x 1130 x 273
  • inches : 23.2 x 44.5 x 10.7
Mounting
Standard : 28" tool-less slide rail

* All specifications are subject to change without notice.

Features & Benefits

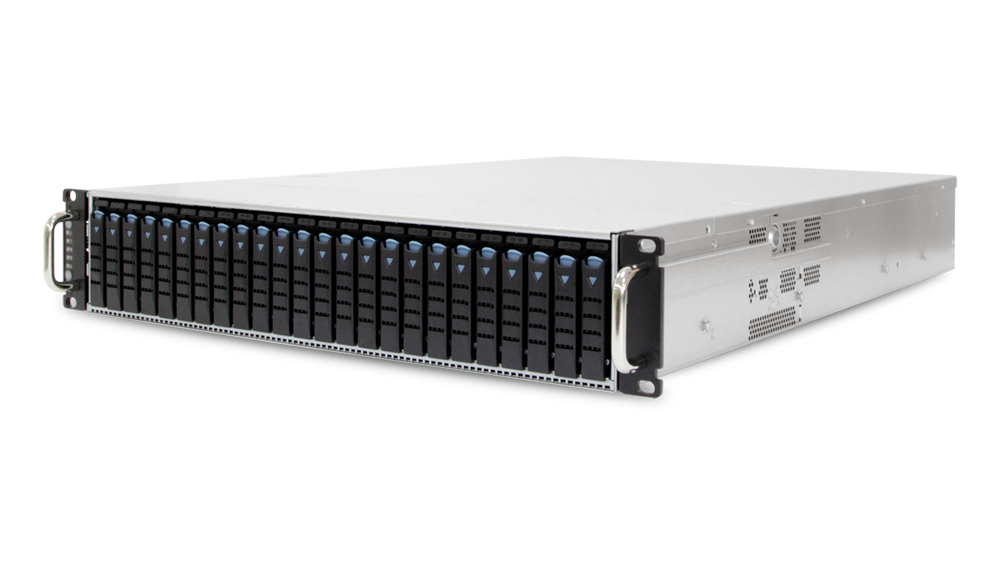

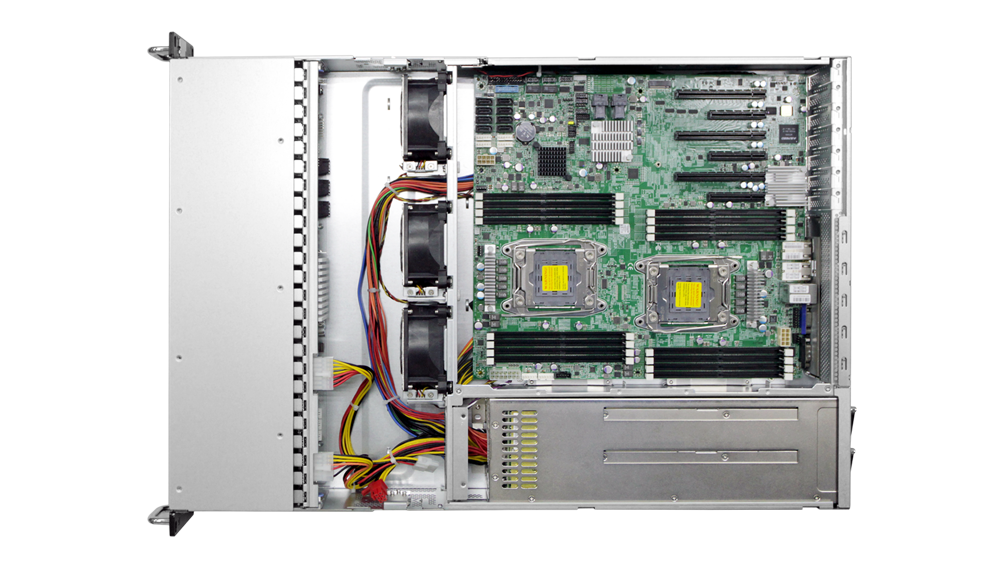

ASA2101-X2-R-AC, a 2U 24-Bay Storage Server Solution, supports dual Intel® Xeon® Processors E5-2600 v3/v4 Product Family. It has 24 x 2.5" (front) and 2 x 2.5" (rear) hot swap drive bays. ASA2101-X2-R-AC supports up to 6 PCIe 3.0 slots utilizing 64 lanes.

Key Features

  • 2U 24-Bay high density storage server barebone
  • Supports two Intel® Xeon® Processors E5-2600 v3/v4 Product Family
  • With Intel® C612 Series Chipset to provide 5+ years product life cycle
  • Onboard Baseboard Management Controller for system management and IPMI control
  • Two 10 GbE SFP+ ports
  • Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
  • Customizable to meet your requirements
  • High-efficiency power supply

Dimensions (W x D x H) (with chassis ears)
  • mm : 482.6 x 660 x 88.8
  • inches : 19 x 26 x 3.5
Motherboard
AIC Server Board Libra
Processor
  • Processor Support : Two Intel® Xeon® Processors E5-2600 v3/v4 Product Family
  • QPI Speeds : 9.6 GT/s, 8.0 GT/s, 7.2 GT/s
  • Socket Type : Socket R3 (FCLGA2011-3)
Chipset
Intel® C612 Chipset
System Memory
  • 16 DIMM slots across 8 memory channels (4 memory channels per CPU; 2DPC)
  • 512GB DDR4 2133/1866 RDIMM DRx4
  • 128GB DDR4 2133/1866 RDIMM SRx4
  • 1024GB DDR4 2133/1866 LRDIMM QRx4
  • 2048GB DDR4 2133/1866 LRDIMM 3DS 8Rx4
Front Panel
  • Power on/off
  • System reset
LEDs
  • Power
  • Drive activity
  • Network activity
Drive Bays
External : 26 x 2.5" hot swap (24 front + 2 rear)
Backplane
  • 1 x 24-port 12Gb SAS backplane with 6 SFF-8643 connectors
Expansion Slots (PCIe 3.0)
6 x8 (all LP)
System BIOS
BIOS Type :
  • Insyde UEFI BIOS
  • SPI (Serial Peripheral Interface) FLASH Interface
BIOS Features :
  • ACPI
  • PXE
  • WOL
  • AC loss recovery
  • IPMI 2.0 KCS interface
  • SMBIOS
  • Serial console redirection
  • BIOS Boot Specification
  • BIOS Recovery Mode
  • SRIOV
  • PCIe Hotplug
  • iSCSI
  • TPM
  • PCIe NTB
On-board Devices
SATA :
  • Built-in SATA RAID controller on Intel® C612 Chipset with software RAID support
IPMI :
Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
  • Baseboard Management Controller
  • Intelligent Platform Interface 2.0 (IPMI 2.0)
  • iKVM, Media Redirection, IPMI over LAN, Serial over LAN
  • SMASH Support
Network Controllers :
  • Intel® Ethernet Controller X540-BT2 dual port 10GbE, 10GBASE-T, PCIe v2.1, x8
  • Intel® Ethernet Controller I210-AT, single port GbE controller, PCIe v2.1, 2.5 GT/s, x1
  • Intel® Ethernet Network Connection I217-LM, single port GbE, 1Gbps
  • Realtek® RTL8201EL single port 10/100 Mbps Ethernet PHYceiver for dedicated BMC port
  • Optional : Intel® Ethernet Controller I350-AM2, dual port GbE, PCIe v2.0 (co-lay with Intel® X540-BT2)
Graphics :
Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
  • PCIe VGA/2D Controller
  • 1920x1200@60Hz 32bpp

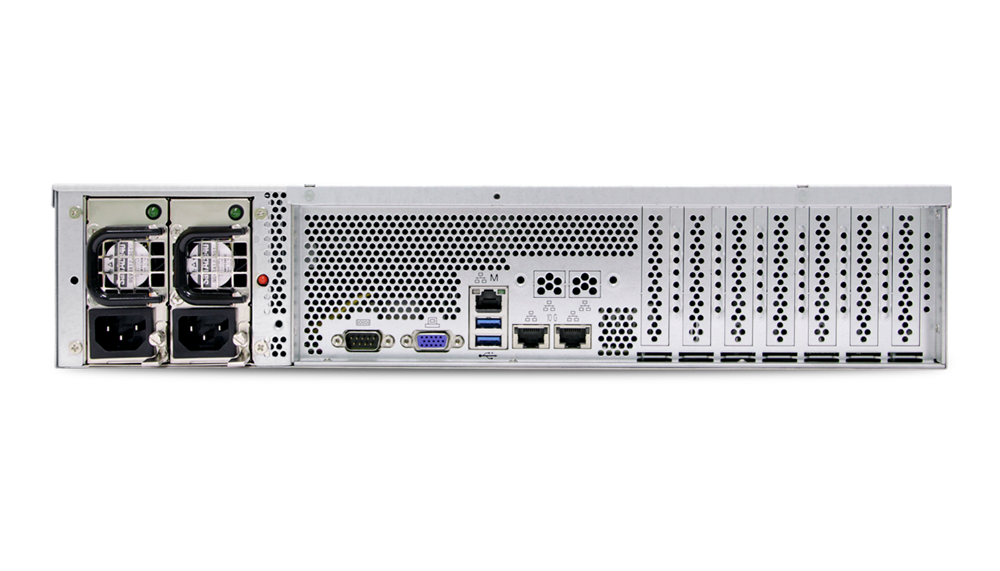

Rear I/O
  • 3 x RJ45 (1 for BMC)
  • 2 x USB 3.0
  • 1 x VGA
  • 1 x Serial
  • optional 2 x RJ45
Power Supply
AC 750W 1+1 redundant high-efficiency power supply 80+ (90-264VAC, 47-63 Hz)
System Cooling
3 x 80x38mm easy swap fans
System Management
  • IPMI 2.0
  • KVM over IP
  • Media redirection
  • Temperature, fan, voltage, PSU sensor monitor
  • System temperature
  • System ID / System fail indicator
  • Remote power on/off/reset
  • SEL message alarm through mail
  • SNMP support
  • Intel NM
Environmental Specifications
  • Operating temperature : 0° - 35°C
  • Operating altitude condition : 0 ~ 10K feet
  • Storage temperature : -20° ~ 60°C
  • System relative humidity : 5% - 95% (38°C) non-condensing
Gross Weight (w/PSU & Rail)
  • kgs : 31
  • lbs : 68.2
Packaging Dimensions (W x D x H)
  • mm : 603 x 883 x 314
  • inches : 23.7 x 34.8 x 12.4
Mounting
Standard : 28" tool-less slide rail

* All specifications are subject to change without notice.

Features & Benefits

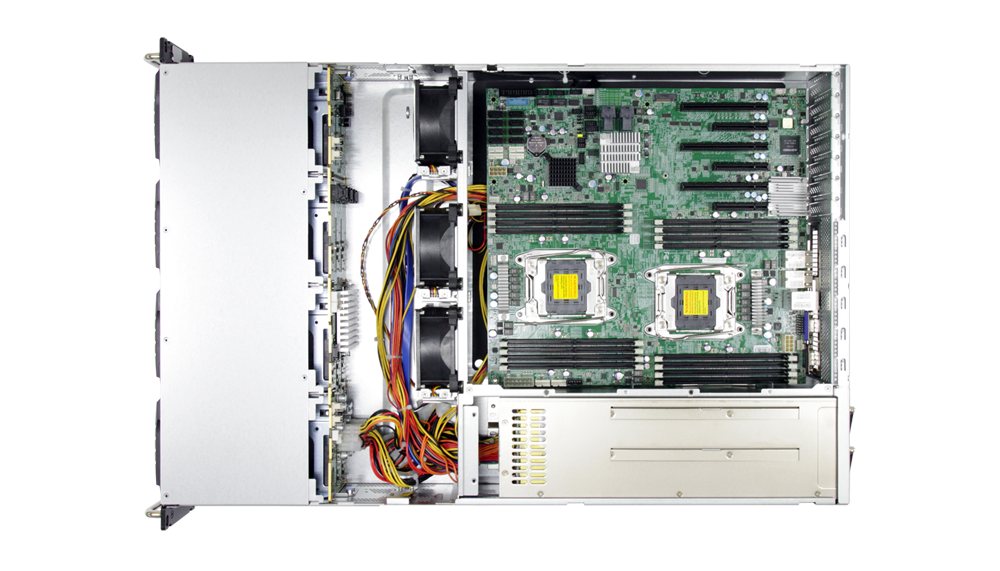

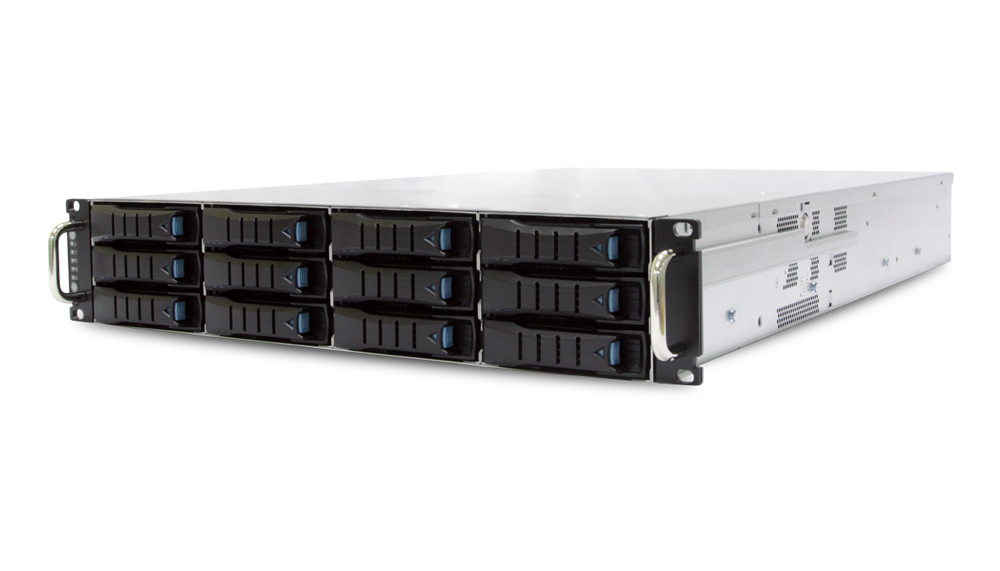

ASA2102-X2-R-AC, a 2U 12-bay storage server solution, supports dual Intel® Xeon® Processors E5-2600 v3/v4 product family. The backplane is tool-less and is of 12Gb/s SAS. You can opt for the one with expander chip on board. There are 12 drive bays for 3.5" drives in the front and 2 for 2.5" in the rear. ASA2102-X2-R-AC supports up to 6 PCIe 3.0 slots utilizing 64 lanes.

Key Features

  • 2U 12-Bay storage server
  • Supports two Intel® Xeon® Processors E5-2600 v3/v4 Product Family
  • With Intel® C612 Series Chipset to provide 5+ years product life cycle
  • Onboard Baseboard Management Controller for system management and IPMI control
  • Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
  • Two 10 GbE RJ45 ports

Dimensions (W x D x H) (with chassis ears)
  • mm : 483 x 645 x 88
  • inches : 19 x 25.4 x 3.5
Motherboard
AIC Server Board Libra
Processor
  • Processor Support : Two Intel® Xeon® Processors E5-2600 v3/v4 Product Family
  • QPI Speeds : 9.6 GT/s, 8.0 GT/s, 7.2 GT/s
  • Socket Type : Socket R3 (FCLGA2011-3)
Chipset
Intel® C612 Chipset
System Memory
  • 16 DIMM slots across 8 memory channels (4 memory channels per CPU; 2DPC)
  • 512GB DDR4 2133/1866 RDIMM DRx4
  • 128GB DDR4 2133/1866 RDIMM SRx4
  • 1024GB DDR4 2133/1866 LRDIMM QRx4
  • 2048GB DDR4 2133/1866 LRDIMM 3DS 8Rx4
Front Panel
  • Power on/off
  • System reset
  • 1 x USB 3.0 Type A connector
LEDs
  • Power
  • Alert
  • LAN
  • Drive
Drive Bays
  • External : 12 x 3.5" hot swap
Choose 1 :
  • External : 2 x 2.5" hot swap (rear)
  • Internal : 2 x 2.5"
Backplane
Options :
  • 1 x 12-port 12Gb SAS backplane with 28-PHY expander chip and 3 SFF-8643 connectors
  • 1 x 12-port 12Gb SAS backplane with 3 SFF-8643 connectors
Expansion Slots (PCIe 3.0)
2 x16 + 1 x16 (x8 mode) + 3 x8 (all LP)
System BIOS
BIOS Type :
  • Insyde UEFI BIOS
  • SPI (Serial Peripheral Interface) FLASH Interface
BIOS Features :
  • ACPI
  • PXE
  • WOL
  • AC loss recovery
  • IPMI 2.0 KCS interface
  • SMBIOS
  • Serial console redirection
  • BIOS Boot Specification
  • BIOS Recovery Mode
  • SRIOV
  • PCIe Hotplug
  • iSCSI
  • TPM
  • PCIe NTB
On-board Devices
SATA :
  • Built-in SATA controller with RAID support on Intel® C612 Chipset
  • 8x 7pin SATA connectors
  • 1x M.2 with SATA/PCIe X2 support
IPMI :
Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
  • Baseboard Management Controller
  • Intelligent Platform Interface 2.0 (IPMI 2.0)
  • iKVM, Media Redirection, IPMI over LAN, Serial over LAN
  • SMASH Support
Network Controllers :
  • Intel® Ethernet Controller X540-BT2 dual port 10 GbE, 10GBASE-T, PCIe v2.1, x8 [Or Intel® Ethernet Controller I350-AM2, dual port GbE, PCIe v2.0 (co-lay with Intel® X540-BT2). MOQ required.]
  • Intel® Ethernet Controller I210-AT, single port GbE controller, PCIe v2.1, 2.5 GT/s, x1
  • Intel® Ethernet Network Connection I217-LM, single port GbE, 1Gbps
  • Realtek® RTL8201EL single port 10/100 Mbps Ethernet PHYceiver for dedicated
Graphics :
Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
  • PCIe VGA/2D Controller
  • 1920x1200@60Hz 32bpp

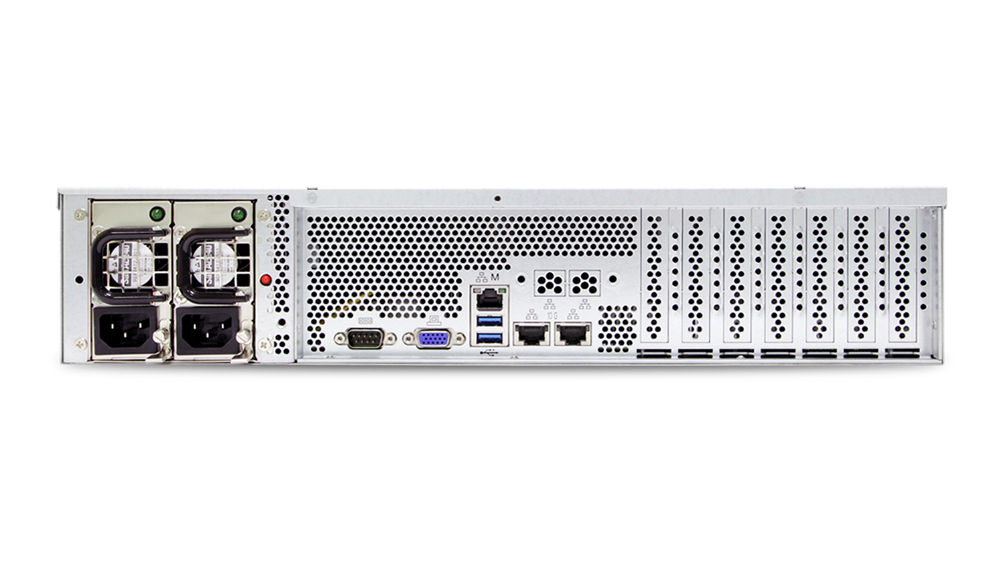

Rear I/O
  • 2 x RJ45
  • 1 x RJ45 (dedicated BMC port)
  • 2 x RJ45 cabled from two internal 2x5 box pin-header (optional accessory)
  • 2 x USB 3.0 Type A
  • 1 x VGA
  • 1 x Serial
Power Supply
800W 1+1 redundant PSU 80+ Platinum (100-240VAC, 47-63 Hz)
System Cooling
Middle : 3 x 80x38 PWM & low power hot swap fans
System Management
  • IPMI 2.0
  • KVM over IP
  • Media redirection
  • Temperature, fan, voltage, PSU sensor monitor
  • System temperature
  • System ID / System fail indicator
  • Remote power on/off/reset
  • SEL message alarm through mail
  • SNMP support
  • Intel NM
Environmental Specifications
  • Operating temperature : 0° - 35°C
  • Operating altitude condition : 0 ~ 10K feet
  • Storage temperature : -20° ~ 60°C
  • System relative humidity : 5% - 95% (38°C) non-condensing
Gross Weight (w/PSU & Rail)
  • kgs : 32
  • lbs : 70.4
Packaging Dimensions (W x D x H)
  • mm : 590 x 850 x 270
  • inches : 23.2 x 33.5 x 10.6
Mounting
Standard : 28" tool-less slide rail

* All specifications are subject to change without notice.

Features & Benefits

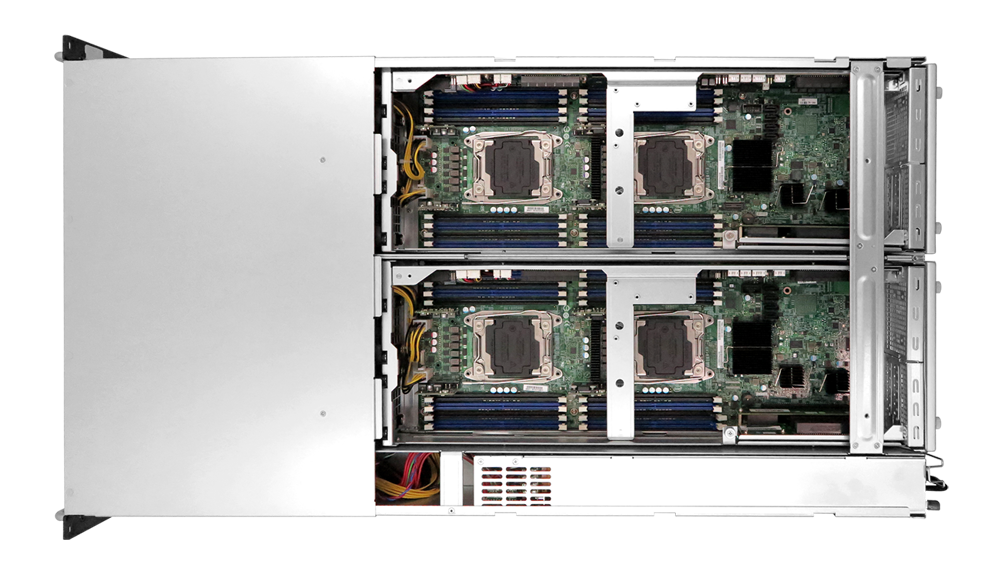

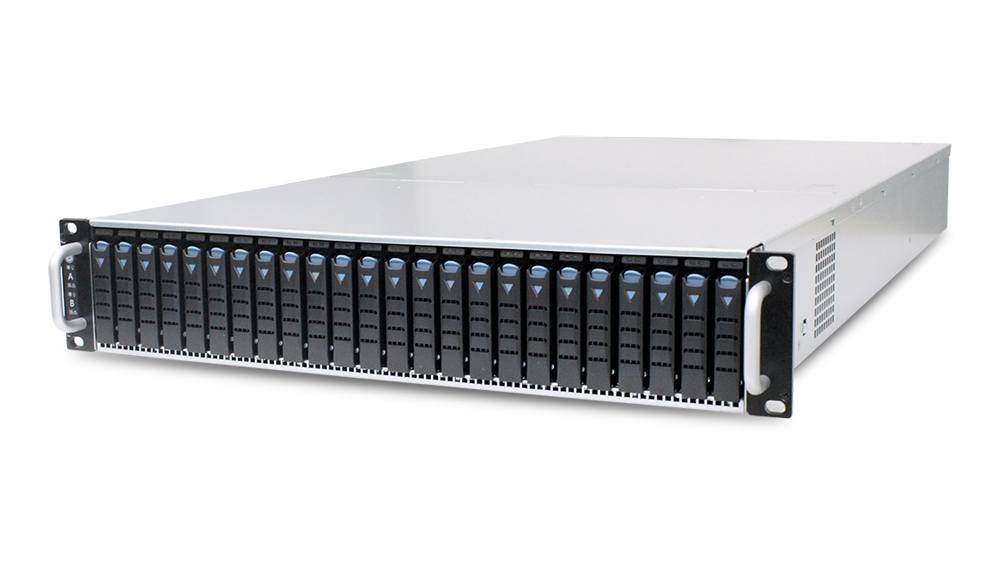

ASA2201-X2-R-AC is a 2U 24-SFF-Bay Cluster-in-a-box solution that provides high-availability in an active-active configuration. It comes with two Intel® S2600TP Server Boards (one board per node), each supporting dual Intel® Xeon® processors in the E5-2600 v3/v4 family. Both nodes process I/Os and provide simultaneous and balanced access to the logical devices, which increases overall cluster performance significantly. When failover occurs, the secondary node automatically takes over the devices, client connections, and all processes/services of the system. It provides protection from loss of revenue when access to data resources and critical business applications are disrupted. The ASA2201-X2-R-AC eliminates SPOFs (single point of failures). Its support on SSDs allows faster access to data. It is optimized for mission-critical, enterprise-level storage applications.

Key Features

  • High-availability storage server optimized for mission-critical, enterprise-level storage applications
  • Fully redundant, fault-tolerant system supporting hot swappable controller nodes and storage drives
  • Two compute nodes, Active-Active configuration, each supporting two Intel® Xeon® Processors E5-2600 v3/v4 Product Family and up to 512GB of DDR4 memory
  • 10GbE, PCIe NTB or SAS link between nodes for communication and fail-over
  • Built-in LSI SAS3x36R SAS expander per node
  • Intel® Trusted Platform Module (TPM) header to support Intel® Trusted Execution Technology (TXT)

Dimensions (W x D x H) (with chassis ears)
  • mm : 482.6 x 815 x 88
  • inches : 19 x 32 x 3.5
Processor (per node)
  • Processor Support : Two Intel® Xeon® Processors E5-2600 v3/v4 Product Family
  • QPI Speeds : 9.6 GT/s, 8 GT/s, 7.2 GT/s
  • Socket Type : Socket R3 (FCLGA2011-3)
System Memory (per node)
  • 16 DIMM slots in total across 8 memory channels
  • Registered DDR4 (RDIMM), Load Reduced DDR4 (LRDIMM)
  • Memory DDR4 data transfer rates of 1600/1866/2133 MT/s
  • DIMM sizes of 4 GB, 8 GB, 16 GB, or 32 GB depending on ranks and technology
LEDs
A:
  • Power (Secondary)
  • Warning
B:
  • Power (Primary)
  • Warning
Backplane
1 x 24-port 12Gb SAS dual-loop backplane
Expansion Slots (PCIe 3.0) (per node)
5 x8 (4 LP & 1 FHHL)

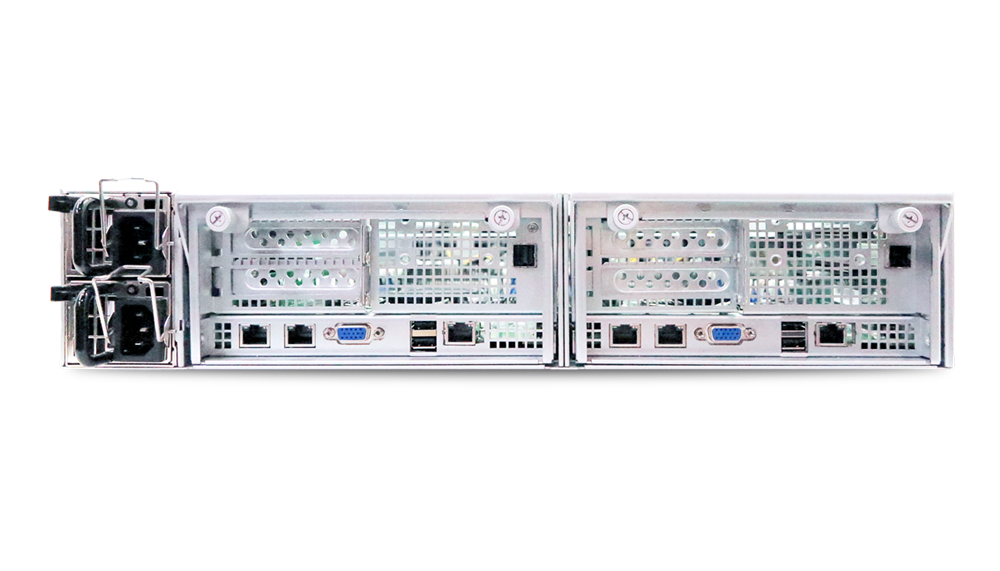

Rear I/O (per node)
  • 1 x RJ45 (dedicated port for remote server management)
  • 2 x RJ45
  • 2 x USB 2.0
  • 1 x VGA
  • 1 x Mini SAS HD
Video Support (per node)
Integrated Matrox G200 2D Graphics Controller
Power Supply
1200W 1+1 redundant power supply
Environmental Specifications
  • Temperature: 0°C - 35°C
  • Humidity: 5% - 95% non-condensing
Packaging Dimensions (W x D x H)
  • mm : 590 x 1150 x 330
  • inches : 23.2 x 45.3 x 13
Motherboard (per node)
Intel® Server Board S2600TP
Chipset Support (per node)
Intel® C612 Chipset
Front Panel
Power on/off
Drive Bays
External : 24 x 2.5" hot swap
Expander Board (per node)
1 x 36-port 12Gb SAS expander board with 3 SFF-8643 connectors
Internal I/O Connectors / Headers (per node)
  • 1 x internal USB 2.0 connector (port 6/7)
  • 1 x 2x7pin header for system fan module
  • 1 x 1x12pin control panel header
  • 1 x DH-10 serial Port A connector
  • 1 x SATA 6Gb/s port for SATA DOM
  • 4 x SATA 6Gb/s connectors (port 0/1/2/3)
  • 1 x 2x4 pin header for Intel RMM4 Lite
  • 1 x 1x4 pin header for Storage Upgrade Key
  • 1 x 1x8 pin backup power controler connector
Ethernet (per node)
Dual GbE, Intel® I350 Gigabit Ethernet Controller
Server Management (per node)
  • Onboard Server Engines* LLC Pilot III* Controller
  • Support for Intel® Remote Management Module 4 solutions
  • Intel® Light-Guided Diagnostics on field replaceable units
  • Support for Intel® System Management Software
  • Support for Intel® Intelligent Power Node Manager
  • (Need PMBus - compliant power supply)
  • BIOS Flash Winbond W25Q64BV
System Cooling (per node)
2 x 6056 fans
Gross Weight (w/PSU & Rail)
  • kgs : 41
  • lbs : 90
Mounting
Standard : 28" tool-less slide rail

* All specifications are subject to change without notice.

Server Products


Platform Solutions

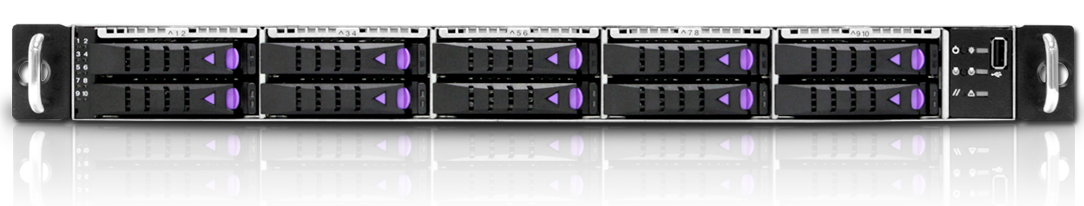

AIC's server hardware features MAX I/O™ technology which supports maximum PCI express lanes and allows for highly customizable solutions to be created in the shortest possible design period.

Features & Benefits

ASA3101-X2-R-AC, a 3U 16-Bay Storage Server Solution, supports dual Intel® Xeon® Processors E5-2600 v3/v4 Product Family. It has 16 x 3.5" and 2 x 2.5" hot swap drive bays. ASA3101-X2-R-AC supports up to 6 PCIe 3.0 slots utilizing 64 lanes.

Key Features

  • 3U 16-Bay storage server
  • Supports two Intel® Xeon® Processors E5-2600 v3/v4 Product Family
  • With Intel® C612 Series Chipset to provide 5+ years product life cycle
  • Onboard Baseboard Management Controller for system management and IPMI control
  • Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
  • Two 10 GbE RJ45 ports

Dimensions (W x D x H) (with chassis ears)
  • mm : 483 x 645 x 132
  • inches : 19 x 25.4 x 5.2
Motherboard
AIC Server Board Libra
Processor
  • Processor Support : Two Intel® Xeon® Processors E5-2600 v3/v4 Product Family
  • QPI Speeds : 9.6 GT/s, 8.0 GT/s, 7.2 GT/s
  • Socket Type : Socket R3 (FCLGA2011-3)
Chipset
Intel® C612 Chipset
System Memory
  • 16 DIMM slots across 8 memory channels (4 memory channels per CPU; 2DPC)
  • 512GB DDR4 2133/1866 RDIMM DRx4
  • 128GB DDR4 2133/1866 RDIMM SRx4
  • 1024GB DDR4 2133/1866 LRDIMM QRx4
  • 2048GB DDR4 2133/1866 LRDIMM 3DS 8Rx4
Front Panel
  • Power on/off
  • System ID
  • System reset
  • NMI button
  • 2 x USB
LEDs
  • Power
  • System ID
  • Alert
  • LAN
  • Drive
Drive Bays
  • External : 16 x 3.5" hot swap & 2 x 2.5" hot swap
Backplane
1 x 16-port 12Gb SAS backplanes with 28-PHY expander and 3 SFF-8643 connectors
Expansion Slots (PCIe 3.0)
2 x16 + 1 x16 (x8 mode) + 3 x8 (all LP)
System BIOS
BIOS Type :
  • Insyde UEFI BIOS
  • SPI (Serial Peripheral Interface) FLASH Interface
BIOS Features :
  • ACPI
  • PXE
  • WOL
  • AC loss recovery
  • IPMI 2.0 KCS interface
  • SMBIOS
  • Serial console redirection
  • BIOS Boot Specification
  • BIOS Recovery Mode
  • SRIOV
  • PCIe Hotplug
  • iSCSI
  • TPM
  • PCIe NTB
On-board Devices
SATA :
  • Built-in SATA controller with RAID support on Intel® C612 Chipset
IPMI :
Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
  • Baseboard Management Controller
  • Intelligent Platform Interface 2.0 (IPMI 2.0)
  • iKVM, Media Redirection, IPMI over LAN, Serial over LAN
  • SMASH Support
Network Controllers :
  • Intel® Ethernet Controller X540-BT2 dual port 10GbE, 10GBASE-T, PCIe v2.1, x8
  • Intel® Ethernet Controller I210-AT, single port GbE controller, PCIe v2.1, 2.5 GT/s, x1
  • Intel® Ethernet Network Connection I217-LM, single port GbE, 1Gbps
  • Realtek® RTL8201EL single port 10/100 Mbps Ethernet PHYceiver for dedicated BMC port
  • Optional : Intel® Ethernet Controller I350-AM2, dual port GbE, PCIe v2.0 (co-lay with Intel® X540-BT2)
Graphics :
Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
  • PCIe VGA/2D Controller
  • 1920x1200@60Hz 32bpp
Rear I/O
  • 3 x RJ45 (1 for BMC)
  • 2 x USB 3.0
  • 1 x VGA
  • 1 x Serial
(& optional 2 x RJ45)
Power Supply
800W 1+1 redundant PSU 80+ Gold
System Cooling
Middle : 3 x 80x38 PWM & low power hot swap fans
System Management
  • IPMI 2.0
  • KVM over IP
  • Media redirection
  • Temperature, fan, voltage, PSU sensor monitor
  • System temperature
  • System ID / System fail indicator
  • Remote power on/off/reset
  • SEL message alarm through mail
  • SNMP support
  • Intel NM
Environmental Specifications
  • Operating temperature : 0° - 35°C
  • Operating altitude condition : 0 ~ 10K feet
  • Storage temperature : -20° ~ 60°C
  • System relative humidity : 5% - 95% (38°C) non-condensing
Gross Weight (w/PSU & Rail)
  • kgs : 32
  • lbs : 70.4
Packaging Dimensions (W x D x H)
  • mm : 590 x 850 x 335
  • inches : 23.2 x 33.5 x 13.2
Mounting
Standard : 28" tool-less slide rail

* All specifications are subject to change without notice.

Features & Benefits

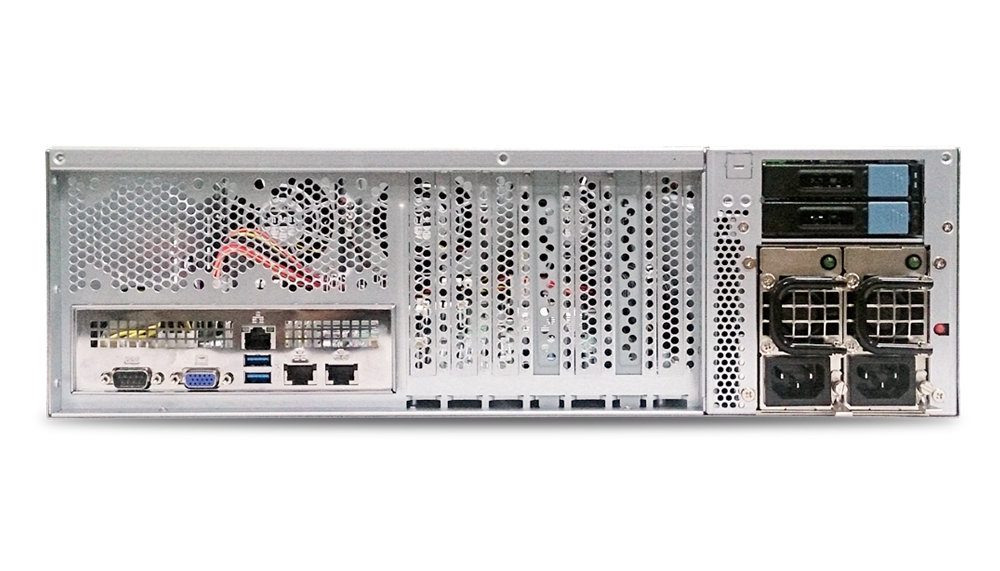

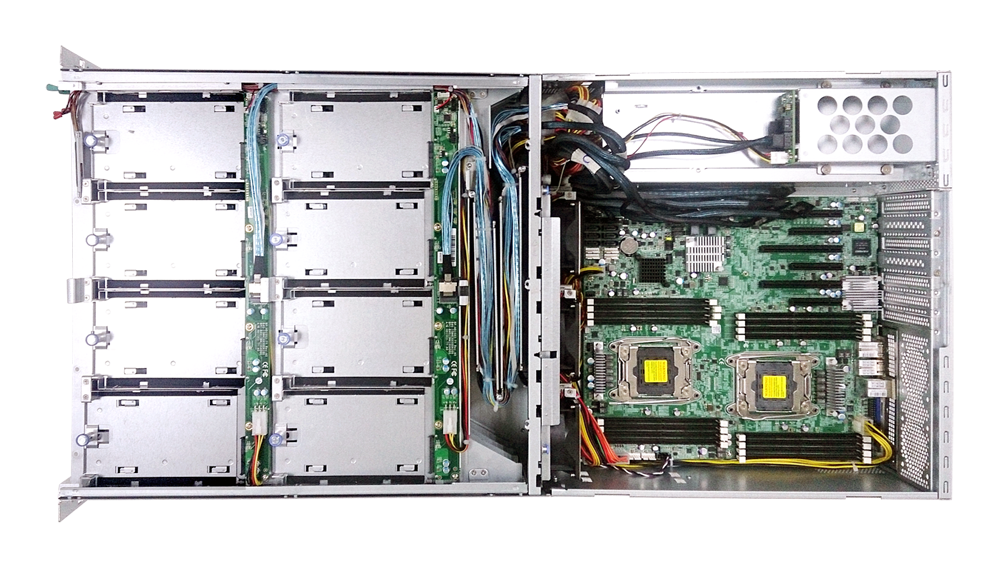

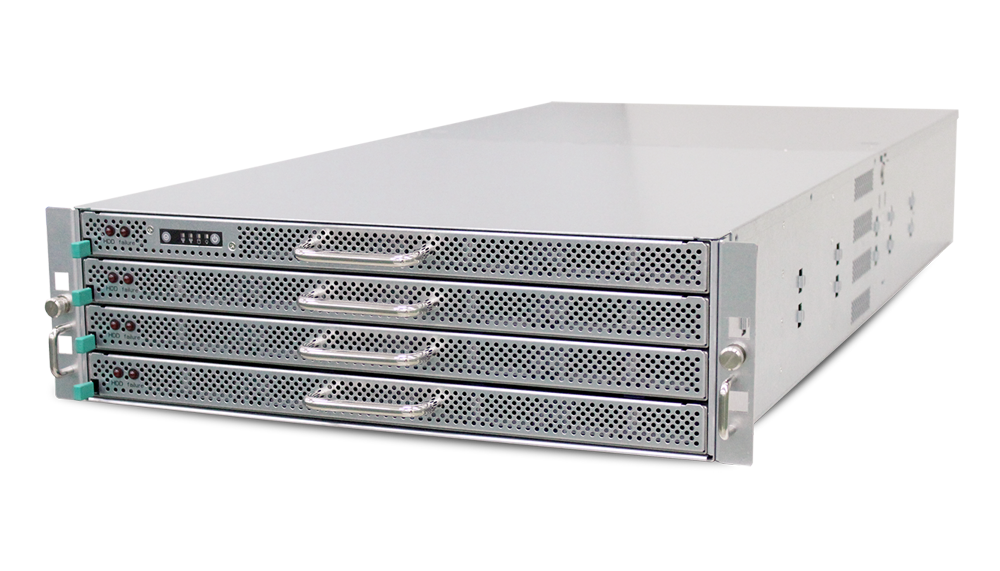

ASA3102-X2-R-AC, a 3U 32-Bay Object Storage Server, supports dual Intel® Xeon® Processors E5-2600 v3/v4 Product Family. It has 32 x 3.5" hot swap and 2 x 2.5" internal drive bays. ASA3102-X2-R-AC supports up to 6 PCIe 3.0 slots utilizing 64 lanes.

Key Features

  • High density 3U 32-Bay object storage server
  • Supports two Intel® Xeon® Processors E5-2600 v3/v4 Product Family
  • With Intel® C612 Series Chipset to provide 5+ years product life cycle
  • Onboard Baseboard Management Controller for system management and IPMI control
  • Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
  • Two 10 GbE RJ45 ports

Dimensions (W x D x H) (with chassis ears)
  • mm : 483 x 900 x 132
  • inches : 19 x 35.4 x 5.2
Motherboard
AIC Server Board Libra
Processor
  • Processor Support : Two Intel® Xeon® Processors E5-2600 v3/v4 Product Family
  • QPI Speeds : 9.6 GT/s, 8.0 GT/s, 7.2 GT/s
  • Socket Type : Socket R3 (FCLGA2011-3)
Chipset
Intel® C612 Chipset
System Memory
  • 16 DIMM slots across 8 memory channels (4 memory channels per CPU; 2DPC)
  • 512GB DDR4 2133/1866 RDIMM DRx4
  • 128GB DDR4 2133/1866 RDIMM SRx4
  • 1024GB DDR4 2133/1866 LRDIMM QRx4
  • 2048GB DDR4 2133/1866 LRDIMM 3DS 8Rx4
Front Panel
  • Power on/off
  • System reset
LEDs
  • Power
  • Alert
  • LAN
Drive Bays
  • Internal : 32 x 3.5" hot swap
Choose 1 :
  • External : 2 x 2.5" hot swap
  • Internal : 2 x 2.5"
Backplane
8 x 4-port 12Gb SAS backplanes with single SFF-8643 connector on each
Expansion Slots (PCIe 3.0)
2 x16 + 1 x16 (x8 mode) + 3 x8 (all LP)
System BIOS
BIOS Type :
  • Insyde UEFI BIOS
  • SPI (Serial Peripheral Interface) FLASH Interface
BIOS Features :
  • ACPI
  • PXE
  • WOL
  • AC loss recovery
  • IPMI 2.0 KCS interface
  • SMBIOS
  • Serial console redirection
  • BIOS Boot Specification
  • BIOS Recovery Mode
  • SRIOV
  • iSCSI
  • TPM
  • PCIe NTB
On-board Devices
SATA :
  • Built-in SATA controller with RAID support on Intel® C612 Chipset
IPMI :
Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
  • Baseboard Management Controller
  • Intelligent Platform Interface 2.0 (IPMI 2.0)
  • iKVM, Media Redirection, IPMI over LAN, Serial over LAN
  • SMASH Support
Network Controllers :
  • Intel® Ethernet Controller X540-BT2 dual port 10GbE, 10GBASE-T, PCIe v2.1, x8
  • Intel® Ethernet Controller I210-AT, single port GbE controller, PCIe v2.1, 2.5 GT/s, x1
  • Intel® Ethernet Network Connection I217-LM, single port GbE, 1Gbps
  • Realtek® RTL8201EL single port 10/100 Mbps Ethernet PHYceiver for dedicated BMC port
  • Optional : Intel® Ethernet Controller I350-AM2, dual port GbE, PCIe v2.0 (co-lay with Intel® X540-BT2)
Graphics :
Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
  • PCIe VGA/2D Controller
  • 1920x1200@60Hz 32bpp
Rear I/O
  • 3 x RJ45 (1 for BMC)
  • 2 x USB 3.0
  • 1 x VGA
  • 1 x Serial
(optional 2 x RJ45)
Power Supply
1200W 1+1 redundant 80+ Gold
System Cooling
Middle : 3 x 80x38 PWM hot swap fans
System Management
  • IPMI 2.0
  • KVM over IP
  • Media redirection
  • Temperature, fan, voltage, PSU sensor monitor
  • System temperature
  • System ID / System fail indicator
  • Remote power on/off/reset
  • SEL message alarm through mail
  • SNMP support
  • Intel NM
Environmental Specifications
  • Operating temperature : 0° - 35°C
  • Operating altitude condition : 0 ~ 10K feet
  • Storage temperature : -20° ~ 60°C
  • System relative humidity : 5% - 95% (38°C) non-condensing
Gross Weight (w/PSU & Rail)
  • kgs : 47
  • lbs : 103.4
Packaging Dimensions (W x D x H)
  • mm : 1170 x 600 x 358
  • inches : 46 x 23.6 x 14.1
Mounting
Standard : 25" tool-less slide rail

* All specifications are subject to change without notice.

Features & Benefits

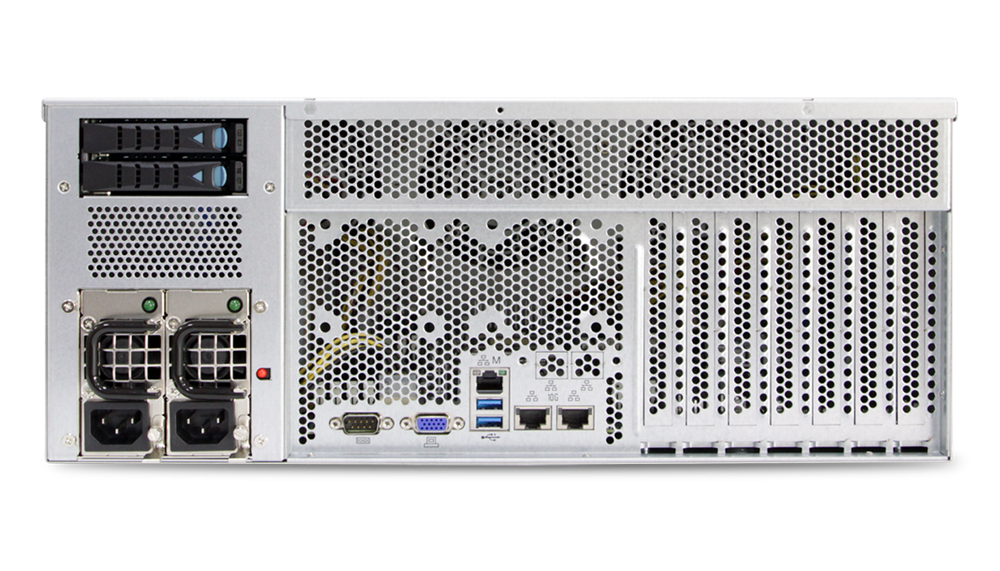

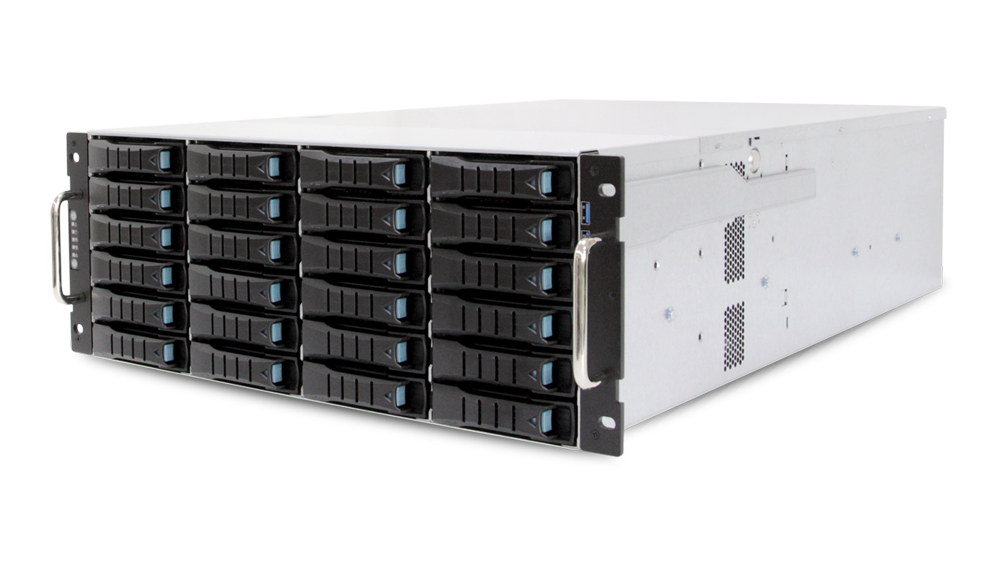

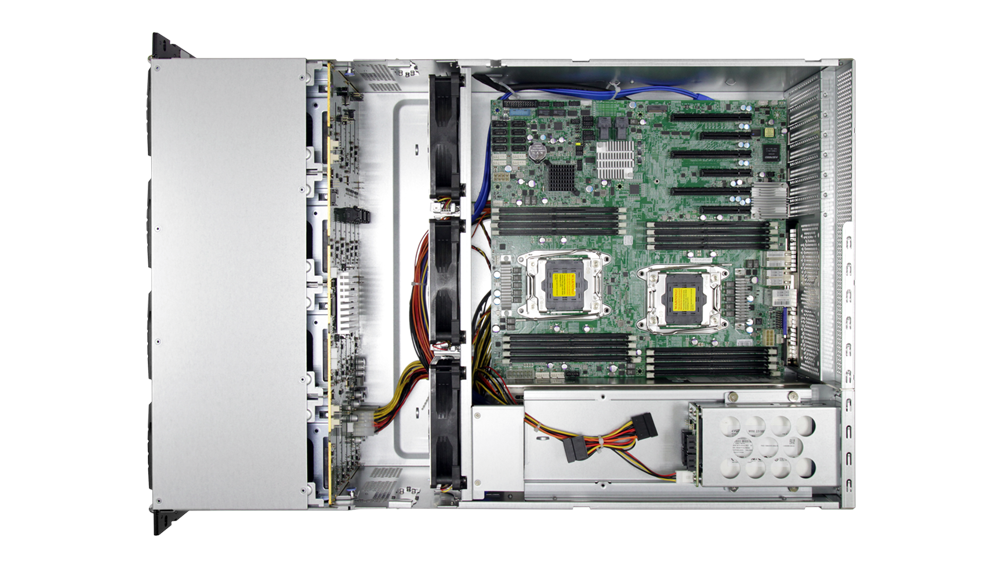

ASA4101-X2-R-AC, a 4U 24-Bay Storage Server Solution, supports dual Intel® Xeon® Processors E5-2600 v3/v4 Product Family. It has 24 x 3.5" hot swap internal drive bays. ASA4101-X2-R-AC supports up to 6 PCIe 3.0 slots utilizing 64 lanes.

Key Features

  • 4U 24-Bay storage server with 5+ years life cycle
  • Supports two Intel® Xeon® Processors E5-2600 v3/v4 Product Family
  • With Intel® C612 Series Chipset to provide 5+ years product life cycle
  • Onboard Baseboard Management Controller for system management and IPMI control
  • Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
  • Two 10 GbE RJ45 ports

Dimensions (W x D x H) (with chassis ears)
  • mm : 483 x 645 x 176
  • inches : 19 x 25.4 x 6.9
Motherboard
AIC Server Board Libra
Processor
  • Processor Support : Two Intel® Xeon® Processors E5-2600 v3/v4 Product Family
  • QPI Speeds : 9.6 GT/s, 8.0 GT/s, 7.2 GT/s
  • Socket Type : Socket R3 (FCLGA2011-3)
Chipset
Intel® C612 Chipset
System Memory
  • 16 DIMM slots across 8 memory channels (4 memory channels per CPU; 2DPC)
  • 512GB DDR4 2133/1866 RDIMM DRx4
  • 128GB DDR4 2133/1866 RDIMM SRx4
  • 1024GB DDR4 2133/1866 LRDIMM QRx4
  • 2048GB DDR4 2133/1866 LRDIMM 3DS 8Rx4
Front Panel
  • Power on/off
  • System ID
  • System reset
  • NMI button
  • 2 x USB
LEDs
  • Power
  • Alert
  • System ID
  • Drive
  • LAN
Drive Bays
  • External : 24 x 3.5" hot swap
Choose 1 :
  • External : 2 x 2.5" hot swap
  • Internal : 2 x 2.5"
Backplane
1 x 24-port 12Gb SAS backplane with 36-PHY expander and 3 SFF-8643 connectors
Expansion Slots (PCIe 3.0)
2 x16 + 1 x16 (x8 mode) + 3 x8 (all LP)
System BIOS
BIOS Type :
  • Insyde UEFI BIOS
  • SPI (Serial Peripheral Interface) FLASH Interface
BIOS Features :
  • ACPI
  • PXE
  • WOL
  • AC loss recovery
  • IPMI 2.0 KCS interface
  • SMBIOS
  • Serial console redirection
  • BIOS Boot Specification
  • BIOS Recovery Mode
  • SRIOV
  • iSCSI
  • TPM
  • PCIe NTB
On-board Devices
SATA :
  • Built-in SATA controller with RAID support on Intel® C612 Chipset
IPMI :
Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
  • Baseboard Management Controller
  • Intelligent Platform Interface 2.0 (IPMI 2.0)
  • iKVM, Media Redirection, IPMI over LAN, Serial over LAN
  • SMASH Support
Network Controllers :
  • Intel® Ethernet Controller X540-BT2 dual port 10GbE, 10GBASE-T, PCIe v2.1, x8
  • Intel® Ethernet Controller I210-AT, single port GbE controller, PCIe v2.1, 2.5 GT/s, x1
  • Intel® Ethernet Network Connection I217-LM, single port GbE, 1Gbps
  • Realtek® RTL8201EL single port 10/100 Mbps Ethernet PHYceiver for dedicated BMC port
  • Optional : Intel® Ethernet Controller I350-AM2, dual port GbE, PCIe v2.0 (co-lay with Intel® X540-BT2)
Graphics :
Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
  • PCIe VGA/2D Controller
  • 1920x1200@60Hz 32bpp
Rear I/O
  • 3 x RJ45 (1 for BMC)
  • 2 x USB 3.0
  • 1 x VGA
  • 1 x Serial
(optional 2 x RJ45)
Power Supply
1200W 1+1 redundant 80+ Gold
System Cooling
Middle : 3 x 120x25 PWM hot swap fans
System Management
  • IPMI 2.0
  • KVM over IP
  • Media redirection
  • Temperature, fan, voltage, PSU sensor monitor
  • System temperature
  • System ID / System fail indicator
  • Remote power on/off/reset
  • SEL message alarm through mail
  • SNMP support
  • Intel NM
Environmental Specifications
  • Operating temperature : 0° - 35°C
  • Operating altitude condition : 0 ~ 10K feet
  • Storage temperature : -20° ~ 60°C
  • System relative humidity : 5% - 95% (38°C) non-condensing
Gross Weight (w/PSU & Rail)
  • kgs : 35
  • lbs : 77
Packaging Dimensions (W x D x H)
  • mm : 590 x 850 x 373
  • inches : 23.2 x 33.5 x 14.7
Mounting
Standard : 28" tool-less slide rail

* All specifications are subject to change without notice.

Features & Benefits

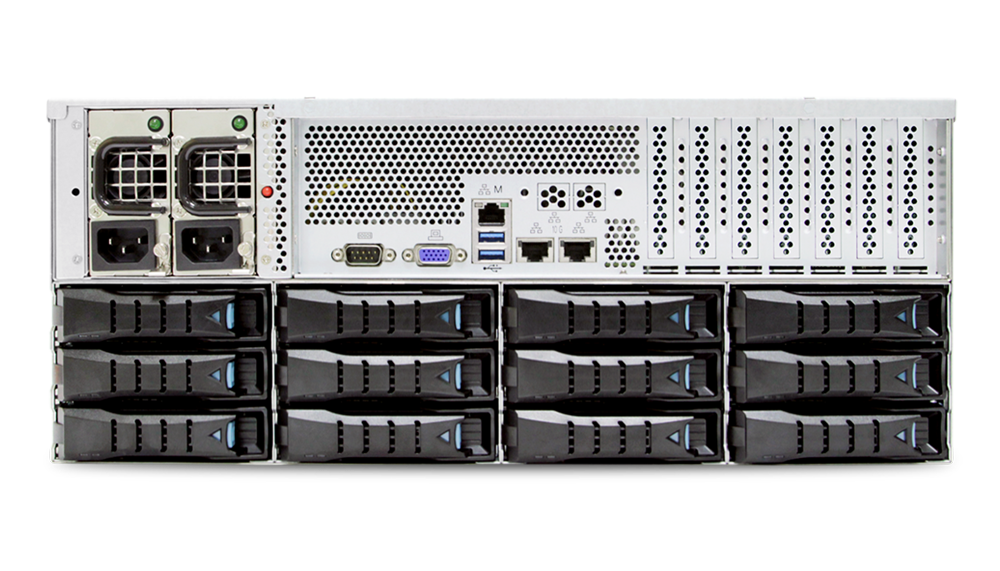

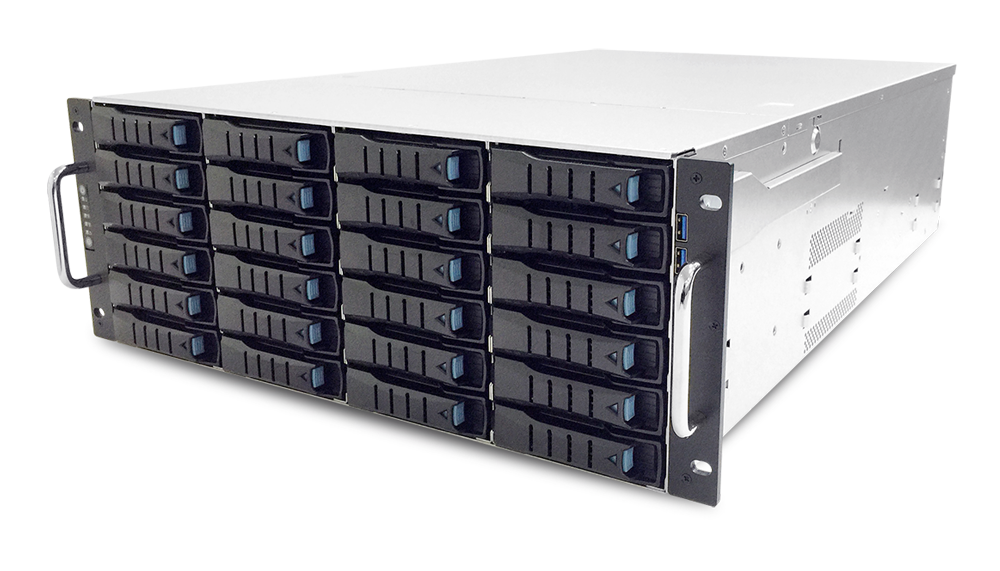

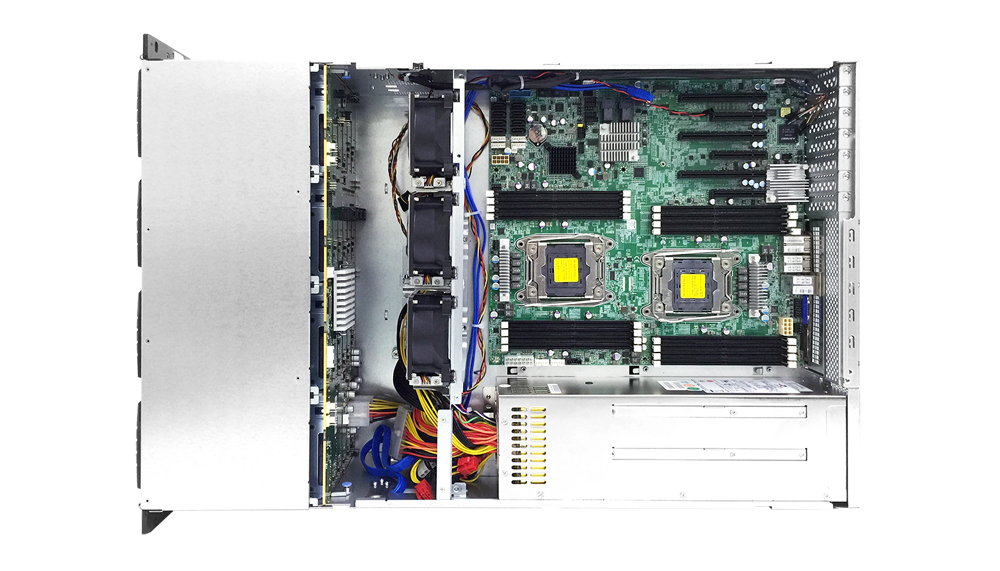

ASA4102-X2-R-AC is a 4U 36-bay storage server solution with 24 bays in the front and 12 in the rear. It comes with AIC's E-ATX server board, Libra, which supports dual Intel® Xeon® processor E5-2600 v3/v4 product family and 6 x PCIe 3.0 slots.

Key Features

  • 4U 36-Bay storage server
  • Supports two Intel® Xeon® Processors E5-2600 v3/v4 Product Family
  • With Intel® C612 Series Chipset to provide 5+ years product life cycle
  • 6 x PCIe 3.0 slots
  • Onboard Baseboard Management Controller for system management and IPMI control
  • Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
  • Two 10 GbE RJ45 ports

Dimensions (W x D x H) (with chassis ears)
  • mm : 483 x 679 x 173.5
  • inches : 19 x 26.7 x 6.8
Motherboard
AIC Server Board Libra
Processor
  • Processor Support : Two Intel® Xeon® Processors E5-2600 v3/v4 Product Family
  • QPI Speeds : 9.6 GT/s, 8.0 GT/s, 7.2 GT/s
  • Socket Type : Socket R3 (FCLGA2011-3)
Chipset
Intel® C612 Chipset
System Memory
  • 16 DIMM slots across 8 memory channels (4 memory channels per CPU; 2DPC)
  • 512GB DDR4 2133/1866 RDIMM DRx4
  • 128GB DDR4 2133/1866 RDIMM SRx4
  • 1024GB DDR4 2133/1866 LRDIMM QRx4
  • 2048GB DDR4 2133/1866 LRDIMM 3DS 8Rx4
Front Panel
  • Power on/off
  • System reset
  • 1 x USB 3.0 Type A connector
LEDs
  • Power
  • Alert
  • Drive
  • LAN
Drive Bays
  • External : 36 x 3.5" hot swap
  • Internal : 2 x 2.5"
Backplane
Options :
1 x 24 port 12Gb SAS backplane with 36-PHY expander and 3 SFF-8643 connectors
Expansion Slots (PCIe 3.0)
2 x16 + 1 x16 (x8 mode) + 3 x8 (all LP)
System BIOS
BIOS Type :
  • Insyde UEFI BIOS
  • SPI (Serial Peripheral Interface) FLASH Interface
BIOS Features :
  • ACPI
  • PXE
  • WOL
  • AC loss recovery
  • IPMI 2.0 KCS interface
  • SMBIOS
  • Serial console redirection
  • BIOS Boot Specification
  • BIOS Recovery Mode
  • SRIOV
  • iSCSI
  • TPM
  • PCIe NTB
On-board Devices
SATA :
  • Built-in SATA controller with RAID support on Intel® C612 Chipset
  • 8x 7pin SATA connectors
  • 1x M.2 with SATA/PCIe X2 support
IPMI :
Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
  • Baseboard Management Controller
  • Intelligent Platform Interface 2.0 (IPMI 2.0)
  • iKVM, Media Redirection, IPMI over LAN, Serial over LAN
  • SMASH Support
Network Controllers :
  • Intel® Ethernet Controller X540-BT2 dual port 10 GbE, 10GBASE-T, PCIe v2.1, x8 [Or Intel® Ethernet Controller I350-AM2, dual port GbE, PCIe v2.0 (co-lay with Intel® X540-BT2). MOQ required.]
  • Intel® Ethernet Controller I210-AT, single port GbE controller, PCIe v2.1, 2.5 GT/s, x1
  • Intel® Ethernet Network Connection I217-LM, single port GbE, 1Gbps
  • Realtek® RTL8201EL single port 10/100 Mbps Ethernet PHYceiver for dedicated BMC port
Graphics :
Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
  • PCIe VGA/2D Controller
  • 1920x1200@60Hz 32bpp
Rear I/O
  • 2 x RJ45
  • 1 x RJ45 (dedicated BMC port)
  • 2 x RJ45 cabled from two internal 2x5 box pin-header (optional accessory)
  • 2 x USB 3.0 Type A
  • 1 x VGA
  • 1 x Serial
Power Supply
1200W 1+1 redundant PSU 80+ Platinum (100-240VAC, 47-63 Hz)
System Cooling
Middle : 3 x 80x38 PWM & low power hot swap fans
System Management
  • IPMI 2.0
  • KVM over IP
  • Media redirection
  • Temperature, fan, voltage, PSU sensor monitor
  • System temperature
  • System ID / System fail indicator
  • Remote power on/off/reset
  • SEL message alarm through mail
  • SNMP support
  • Intel NM
Environmental Specifications
  • Operating temperature : 0° - 35°C
  • Operating altitude condition : 0 ~ 10K feet
  • Storage temperature : -20° ~ 60°C
  • System relative humidity : 5% - 95% (38°C) non-condensing
Gross Weight (w/PSU & Rail)
  • kgs : 40.4
  • lbs : 89
Packaging Dimensions (W x D x H)
  • mm : 610 x 920 x 380
  • inches : 24 x 36.2 x 15
Mounting
Standard : 26" tool-less slide rail

* All specifications are subject to change without notice.

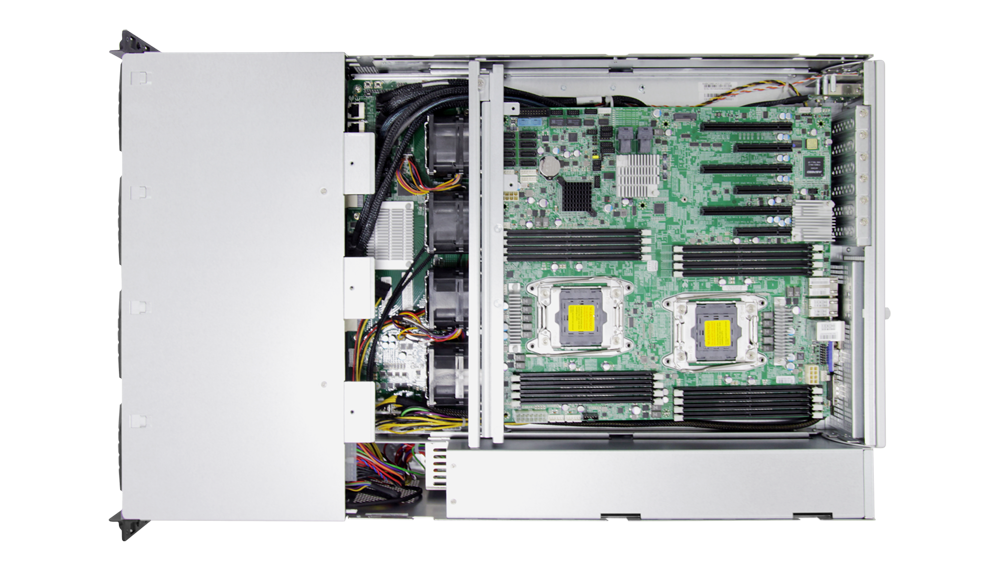

Features & Benefits

ASA4201-X2-R-AC is a 4U 24-Bay Cluster-in-a-box solution that provides high-availability in an active-active configuration and supports 12Gbs SAS. It comes with two AIC Server Boards (one board per node), each supporting dual Intel® Xeon® processors in the E5-2600 v3/v4 family. Both nodes process I/Os and provide simultaneous and balanced access to the logical devices, which increases overall cluster performance significantly. When failover occurs, the secondary node automatically takes over the devices, client connections, and all processes/services of the system. It provides protection from loss of revenue when access to data resources and critical business applications are disrupted. The ASA4201-X2-R-AC eliminates SPOFs (single point of failures). It is optimized for mission-critical, enterprise-level storage applications.

Key Features

  • High-availability storage server optimized for mission-critical, enterprise-level storage applications
  • Fully redundant, fault-tolerant system supporting hot swappable compute nodes and storage drives
  • Two compute nodes, Active-Active configuration, each supporting two Intel® Xeon® Processors E5-2600 v3/v4 Product Family and up to 512GB of memory
  • 10 GbE, PCIe NTB or SAS link between nodes for communication and fail-over
  • Built-in LSI SAS3x48R SAS/SATA expander per node
  • Intel® Trusted Platform Module (TPM) header to support Intel® Trusted Execution Technology (TXT)
  • 6 PCIe 3.0 slots

Dimensions (W x D x H) (with chassis ears)
  • mm : 482.6 x 698.5 x 177.8
  • inches : 19 x 27.5 x 7
Processor (per node)
  • Processor Support : Two Intel® Xeon® Processors E5-2600 v3/v4 Product Family
  • Supported QPI : 9.6 GT/s, 8 GT/s, 7.2 GT/s
  • Socket Type : Socket R3 (FCLGA2011-3)
System Memory (per node)
  • 16 DIMM slots across 8 memory channels (4 memory channels per CPU; 2DPC)
  • 512GB DDR4 2133/1866 RDIMM DRx4
  • 128GB DDR4 2133/1866 RDIMM SRx4
  • 1024GB DDR4 2133/1866 LRDIMM QRx4
  • 2048GB DDR4 2133/1866 LRDIMM 3DS 8Rx4
LEDs
A:
  • Power (Secondary)
  • Warning
B:
  • Power (Primary)
  • Warning
Backplane
1 x 24-port 12Gb SAS backplane
Expansion Slots (PCIe 3.0) (per node)
  • Config 1 : 2 x16 + 1 x16 (x8 mode) + 3 x8 (all LP)
  • Config 2 : 5 x8 (3 LP, 1 FHHL and 1 3/4-Length)
On-board Devices
SATA :
  • Built-in SATA controller with RAID support on Intel® C612 Chipset
IPMI :
Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
  • Baseboard Management Controller
  • Intelligent Platform Interface 2.0 (IPMI 2.0)
  • iKVM, Media Redirection, IPMI over LAN, Serial over LAN
  • SMASH Support
Network Controllers :
  • Intel® Ethernet Controller X540-BT2 dual port 10GbE, 10GBASE-T, PCIe v2.1, x8
  • Intel® Ethernet Controller I210-AT, single port GbE controller, PCIe v2.1, 2.5 GT/s, x1
  • Intel® Ethernet Network Connection I217-LM, single port GbE, 1Gbps
  • Realtek® RTL8201EL single port 10/100 Mbps Ethernet PHYceiver for dedicated BMC port
Graphics :
Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
  • PCIe VGA/2D Controller
  • 1920x1200@60Hz 32bpp
Power Supply
1200W 1+1 redundant power supply 80+ (100-240VAC, 47-63 Hz)
Gross Weight (w/PSU & Rail)
  • kgs : 47
  • lbs : 104
Mounting
Standard : 26" slide rail
Motherboard (per node)
Intel® Server Board S2600TP
Chipset Support (per node)
Intel® C612 Chipset
Front Panel
Power on/off
Drive Bays
External : 24 x 2.5" hot swap
Expander Board (per node)
1 x 48-port 12Gb SAS expander board
System BIOS
BIOS Type :
  • Insyde UEFI BIOS
  • SPI (Serial Peripheral Interface) FLASH Interface
BIOS Features :
  • ACPI
  • PXE
  • WOL
  • AC loss recovery
  • IPMI 2.0 KCS interface
  • SMBIOS
  • Serial console redirection
  • BIOS Boot Specification
  • BIOS Recovery Mode
  • SRIOV
  • iSCSI
  • TPM
  • PCIe NTB
Rear I/O (per node)
  • 3 x RJ45 (1 for BMC)
  • 2 x USB 3.0
  • 1 x VGA
  • 1 x Serial
System Cooling (per node)
4 x 60x51mm hot swap fans
Environmental Specifications
  • Operating temperature : 0° - 35°C
  • Operating altitude condition : 0 - 10K feet
  • Storage temperature : -20° - 60°C
  • System relative humidity : 5% - 95% (38°C) non-condensing
Packaging Dimensions (W x D x H)
  • mm : 660 x 940 x 420
  • inches : 26 x 37 x 16.6
System Management
  • IPMI 2.0
  • KVM over IP
  • Media redirection
  • Temperature, fan, voltage, PSU sensor monitor
  • System temperature
  • System ID / System fail indicator
  • Remote power on/off/reset
  • SEL message alarm through mail
  • SNMP support
  • Intel NM

* All specifications are subject to change without notice.

Request a Quote!

For more information or to request a quote for these products please contact our sales specialist at 650-320-8000. You can also email us at sales@asacomputers.com or click on the below button.

Request Quote
