Power, Optimize, Secure

EYPCTM meets the needs for today's datacenter workloads

AMD

AMD design and manufacture graphics cards and microprocessors that power millions of the world's personal computers, tablets, gaming consoles, embedded devices and cloud servers. Their technology is the brain and the beauty behind the computing devices we use every day and brings our favorite digital experiences to life.

Why ASA Computers?

We have a long-standing relationship with AMD which help us to deliver you the latest server solutions. We strive to help you lower your cost of operation and guide your decision to the right technology for your environment. Starting with an assessment and deployment plan, our dedicated team of server specialists works with you to expand your business through the latest hardware offerings.

Our certified engineers work with you from implementation and beyond to create an infrastructure that helps your organization accomplish more and improve operational efficiency. Our on-site consulting services help you leverage the latest server innovations to optimize your virtualization environment, control costs, and accelerate performance and information access.

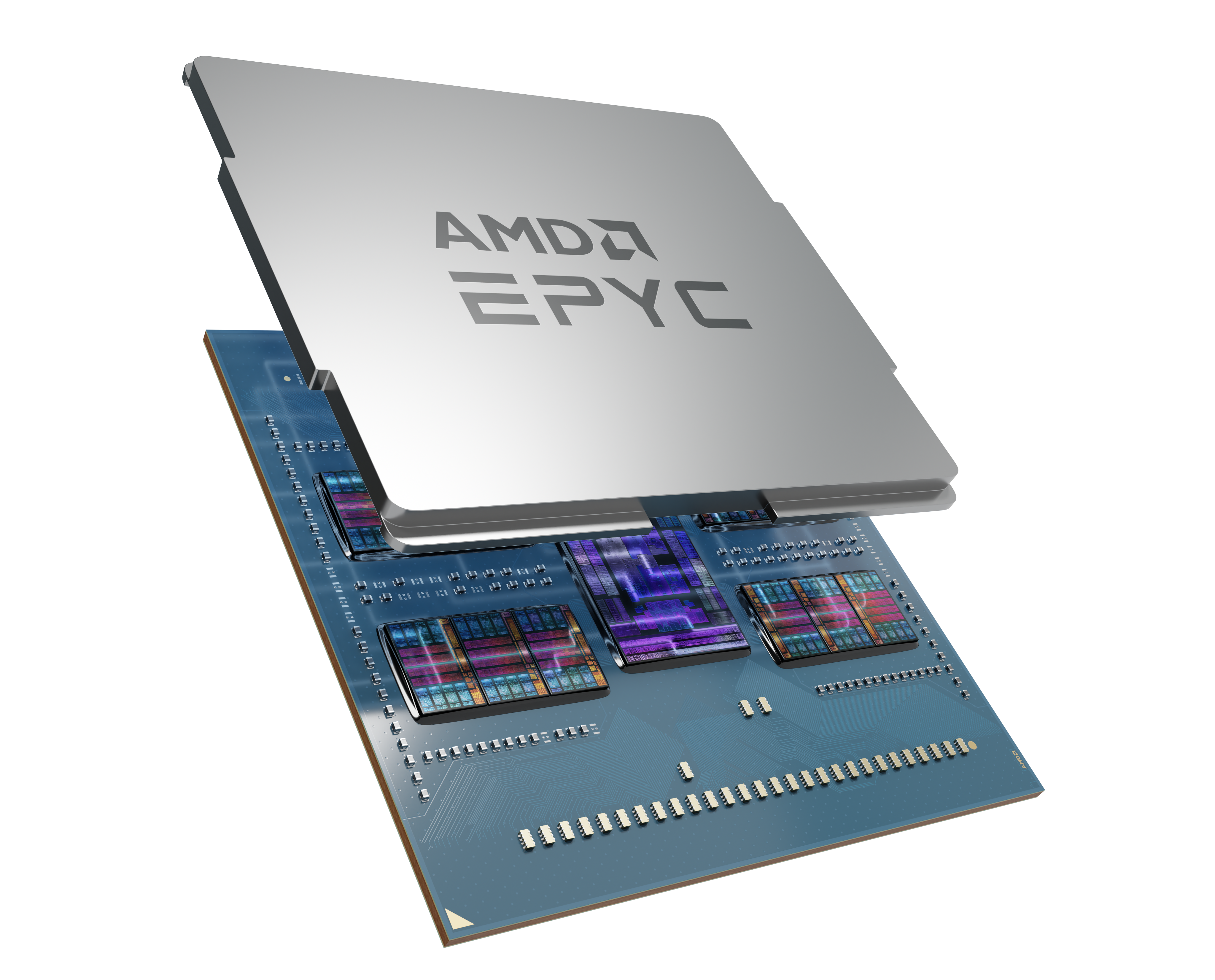

The AMD EPYCTM 7000 Series

Flexibility. Performance. Security. Born in the cloud, the AMD EPYC system on chip delivers 122 percent better memory bandwidth1, 60 percent more I/O2 and 45 percent more cores than the competitor3 to power data center applications. Whether you deploy bare metal, virtualized, or in the cloud, the AMD EPYC processor powers fast, responsive, and secure IT.

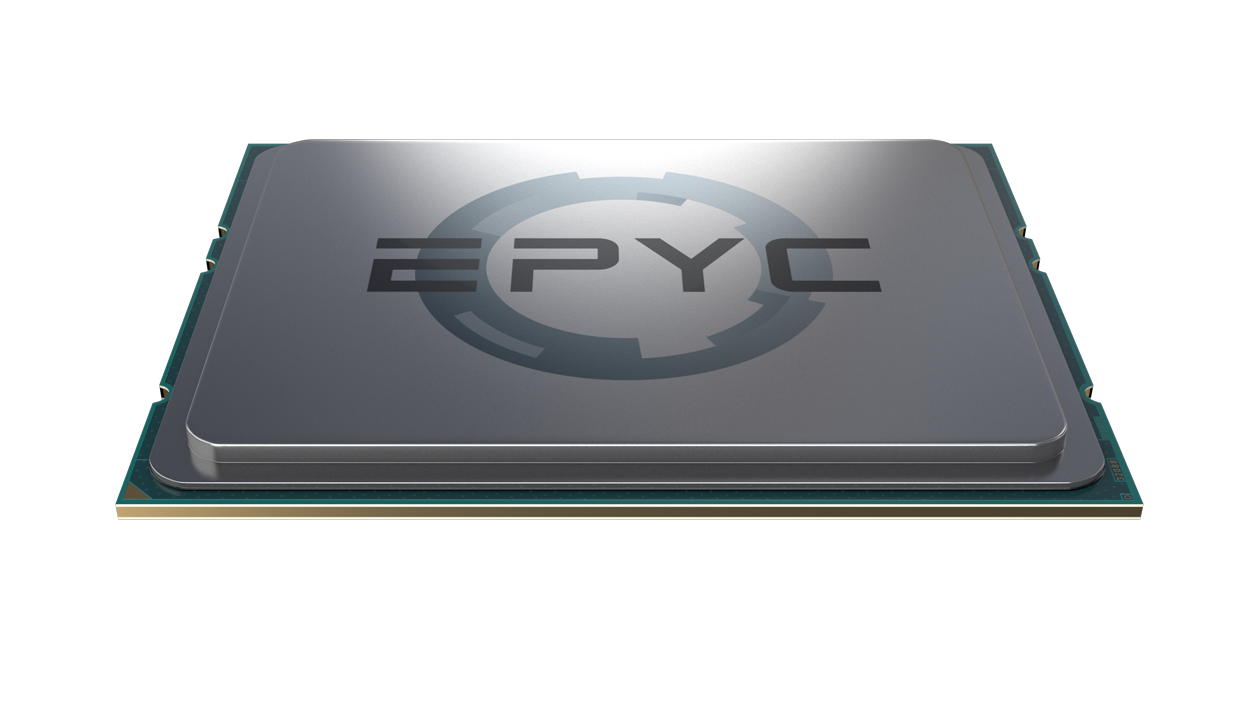

AMD EPYCTM 1-Socket Solutions


2-Socket Features and Performance, 1-Socket Budget

Right-Size Without Compromise. With up to 64 cores, 4 TB of memory, and 128 lanes of PCIe® connectivity, 2-socket servers built with the AMD EPYCTM SoC have the flexibility, performance, and security to efficiently support the most demanding workloads.

Per CPU

FEATURE

Up to 32 high performance cores (64 threads)

Up to 2TB of DDR4 memory capacity (across 8 channels)

128 Lanes of PCIe® Gen 3

Integrated security subsystem

BENEFIT

Up to 32 high performance cores (64 threads)

Up to 2TB of DDR4 memory capacity (across 8 channels)

128 Lanes of PCIe® Gen 3

Integrated security subsystem




1U

Ultimate performance and flexibility with 10 NVMe drive bays for massive IOPs and real-time data analytics.

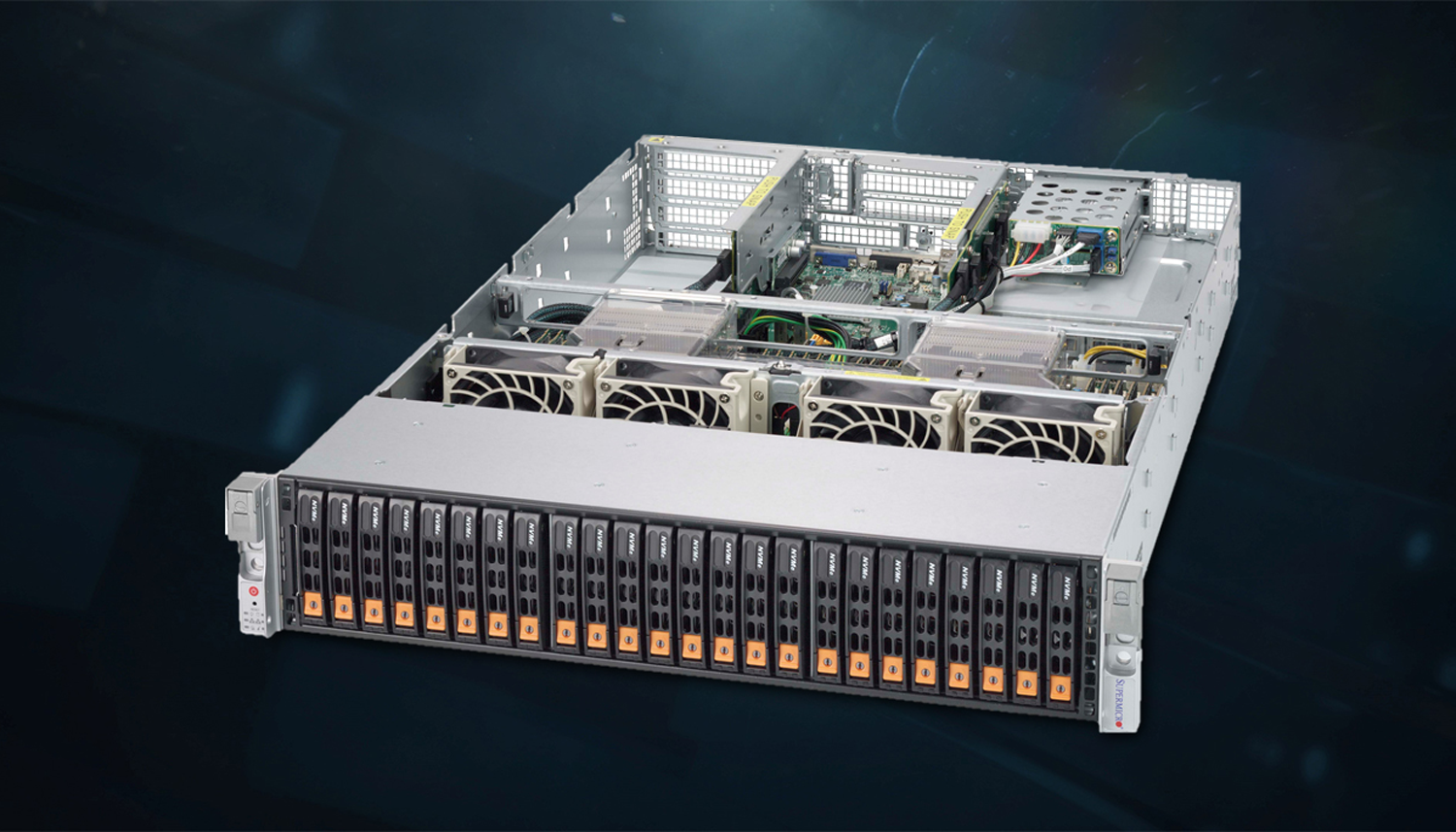

2U

24 NVMe drive bays with industry leading performance deliver superior IOPS, energy efficiency and cost profiles.

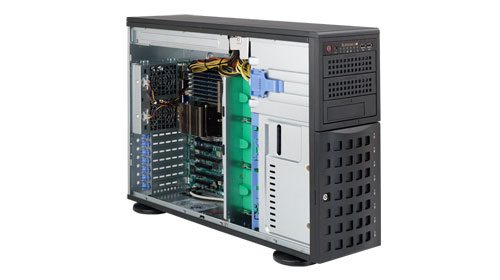

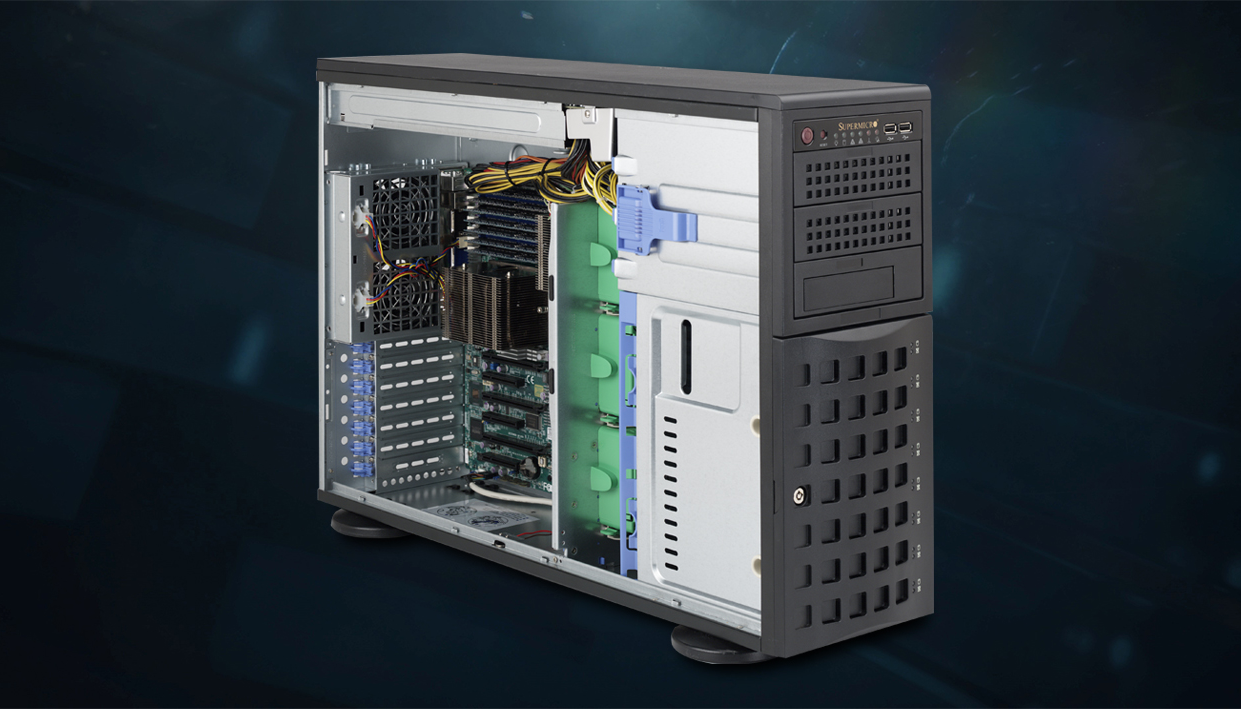

Tower/4U Server

Versatile tower / 4U convertible A+ servers are optimized for computational intensive applications such as Scientific Computing, GPGPU, and advanced visualization.

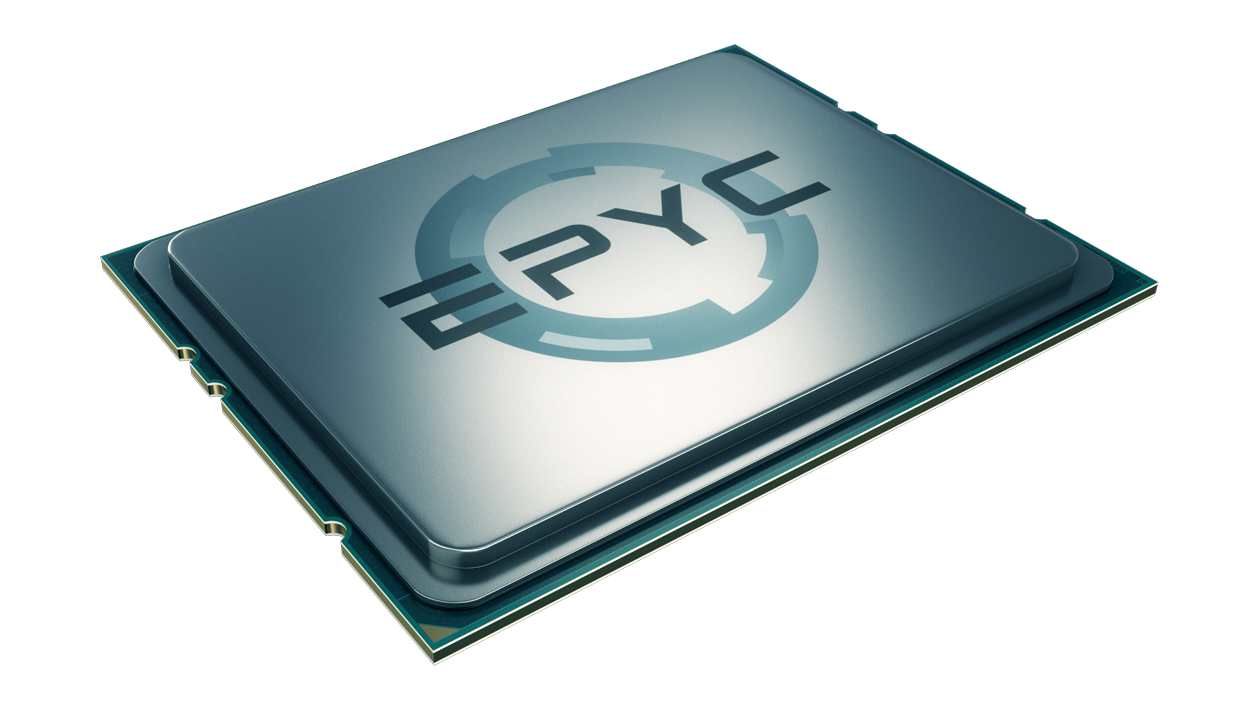

AMD EPYCTM 2-Socket Solutions


Balanced Architecture For Optimum Performance

AMD EPYCTM – Powering The Industry's First No-Compromise 1-Socket Servers.

AMD EPYC provides up to 32 cores, 8 memory channels and 128 PCIe® 3.0 lanes per CPU unlocking capabilities and performance previously available only in 2-socket architectures.

Features & Benefits

ASA-1101-EP2-R, a 1U 4-Bay Storage Server Solution, supports new generation dual AMD EPYCTM 7000-Series Processors.

Key Features

  • Dual AMD EPYCTM 7000-series processors supported (Socket SP3)
  • Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs
  • 2 PCI-E x16 (FH/HL 9.5") slots, 1 PCI-E x8 (LP) slot
  • Four hot-swap 3.5" SATA3 drive bays (optional 4NVMe supported)
  • SATA3 (6 Gbps)
  • IPMI 2.0 + KVM with dedicated LAN support
  • 1000W Titanium level Redundant Power Supplies with PMBus

Processor
  • CPU : Dual AMD EPYCTM 7000-series Processors, Socket SP3
  • Chipset : System on Chip (SoC)
System Memory
Memory Capacity :
  • 32 DIMM sockets
  • Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs
  • 8-channel memory bus
Memory Type :
  • DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs
DIMM Sizes :
  • 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage :
  • 1.2V
Error Detection :
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-board Devices
  • VGA : ASPEED AST2500 BMC
I/O
SATA :
  • 4 SATA3 (6 Gbps) ports
LAN :
  • Quad Gigabit LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB :
  • 3 USB 3.0 ports (2 rear + 1 Type A)
VGA :
  • 1 VGA port
SAS :
  • 4 SAS3 ports support via optional Add-on Card
NVMe :
  • 4 NVMe support with optional cables
Others :
  • 1 COM port (rear)
  • 2 SATA DOM power connector
  • TPM 1.2 header
Dimension and Weight
  • Height : 1.7" (43mm)
  • Width : 17.2" (437mm)
  • Depth : 29" (737mm)
Weight :
  • Net Weight: 26 lbs (11.8 kg)
  • Gross Weight: 41 lbs (18.6 kg)
Front Panel
Buttons :
  • Power On/Off button
  • System Reset button
LEDs :
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED / Fan fail LED / UID LED
Expansion Slots (PCIe 3.0)
  • 2 PCI-E x16 (FH/HL 9.5") slots
  • 2 PCI-E x8 (LP) slot (1 LP, 1 internal LP)
Drive Bays
  • Hot-swap : Four 3.5" Hot-swap SATA drive bays
System Cooling
  • Fans : 8 heavy-duty PWM fans with optimal fan speed control
  • Air Shroud : 2 Air Shroud
Power Supply
  • 1000W Redundant Power Supplies with PMBus
  • Total Output Power : 800W/1000W
  • Dimension (W x H x L) : 73.5 x 40 x 203 mm
Input :
  • 100-127Vac / 9.8 - 7A / 50-60Hz
  • 200-240Vac / 7 - 5A / 50-60Hz
+12V :
  • Max: 66.7A / Min: 0A (100-127Vac)
  • Max: 83A / Min: 0A (200-240Vac)
  • 12Vsb: Max: 2.1A / Min: 0A
  • Output Type: 25 Pairs Gold Finger Connector
System BIOS
  • BIOS Type: AMI 128Mb SPI Flash EEPROM
BIOS Features :
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 5.1
  • USB Keyboard Support
  • SMBIOS 3.1.1
Operating Environment
  • RoHS: RoHS Compliant
Environmental Spec. :
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)

* All specifications are subject to change without notice.

Features & Benefits

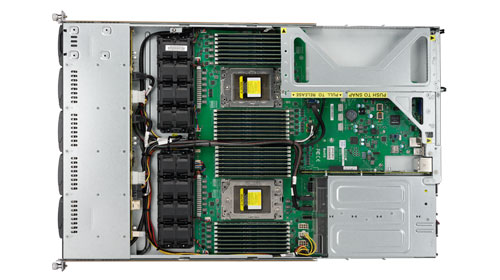

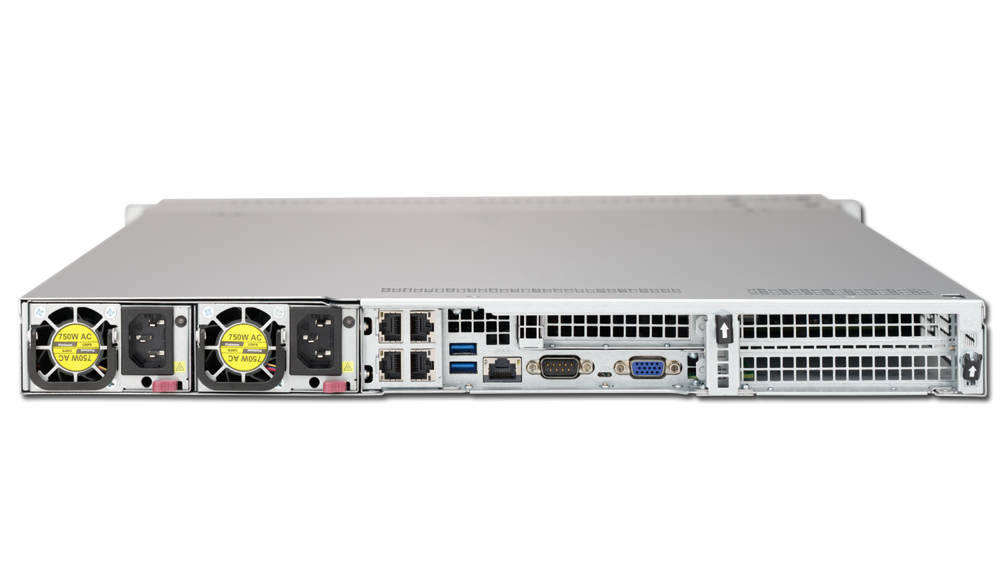

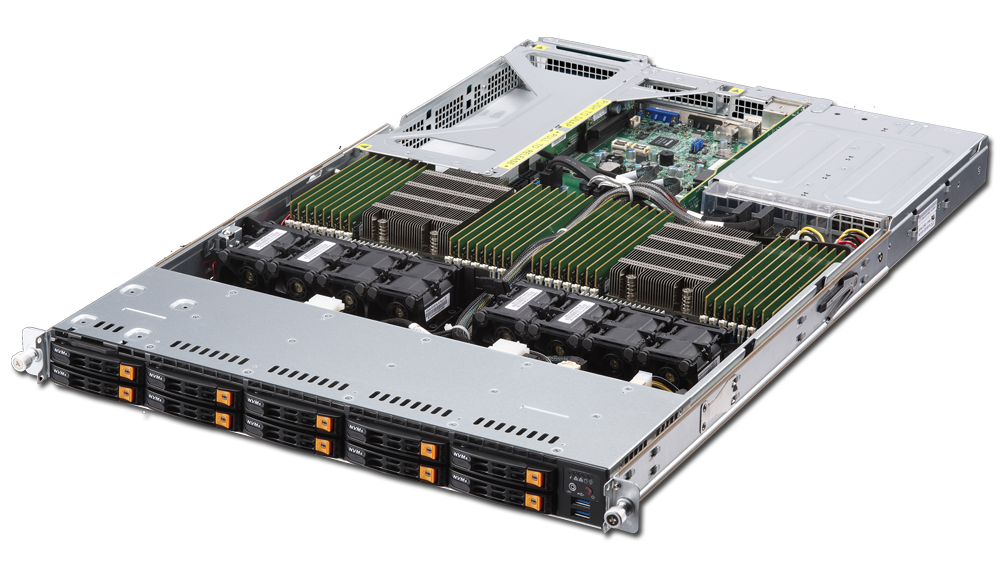

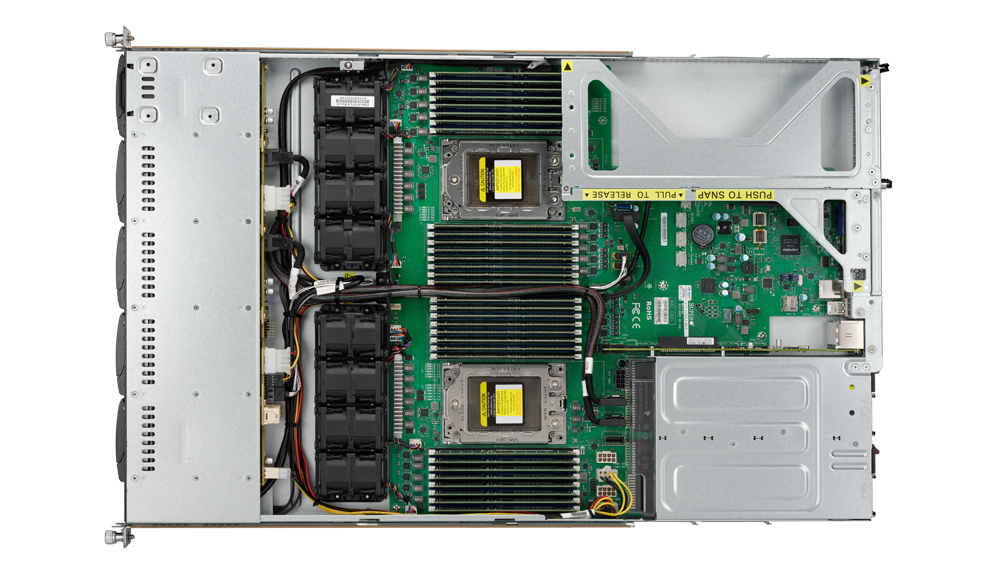

ASA-1102-EP2-R, a 1U 10-Bay Storage Server Solution, supports new generation dual AMD EPYCTM 7000-Series Processors.

Key Features

  • Dual AMD EPYCTM 7000-series processors supported (Socket SP3)
  • Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs
  • 2 PCI-E x16 (FH/HL 9.5") slots, 1 PCI-E x8 (LP) slot
  • 10 hot-swap 2.5" drive bays, or 8 SATA3 + 2 NVMe drive bays (optional)
  • SATA3 (6 Gbps)
  • IPMI 2.0 + KVM with dedicated LAN support
  • 1000W Titanium level Redundant Power Supplies with PMBus

Processor
  • CPU : Dual AMD EPYCTM 7000-series Processors, Socket SP3
  • Chipset : System on Chip (SoC)
System Memory
Memory Capacity :
  • 32 DIMM sockets
  • Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs
  • 8-channel memory bus
Memory Type :
  • DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs
DIMM Sizes :
  • 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage :
  • 1.2V
Error Detection :
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-board Devices
  • VGA : ASPEED AST2500 BMC
I/O
SATA :
  • 10 SATA3 (6 Gbps) ports
LAN :
  • Quad Gigabit LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB :
  • 5 USB 3.0 ports (2 rear + 2 via header + 1 Type A)
VGA :
  • 1 VGA port
SAS :
  • 8 SAS3 ports support via optional Add-on Card
NVMe :
  • 2 NVMe support with optional cables
Others :
  • 1 COM port (rear)
  • 2 SATA DOM power connector
  • TPM 1.2 header
Dimension and Weight
  • Height : 1.7" (43mm)
  • Width : 17.2" (437mm)
  • Depth : 27.82" (707mm)
Weight :
  • Net Weight: 26 lbs (11.8 kg)
  • Gross Weight: 41 lbs (18.6 kg)
Front Panel
Buttons :
  • Power On/Off button
  • System Reset button
LEDs :
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED / Fan fail LED / UID LED
Expansion Slots (PCIe 3.0)
  • 2 PCI-E x16 (FH/HL 9.5") slots
  • 2 PCI-E x8 (LP) slot (1 LP, 1 internal LP)
Drive Bays
  • Hot-swap : 10 2.5" hot-swap SATA3 or 8 SATA3 + 2 NVMe drive bays (optional)
System Cooling
  • Fans : 8 heavy-duty PWM fans with optimal fan speed control
  • Air Shroud : 2 Air Shroud
Power Supply
  • 1000W Redundant Power Supplies with PMBus
  • Total Output Power : 800W/1000W
  • Dimension (W x H x L) : 73.5 x 40 x 203 mm
Input :
  • 100-127Vac / 9.8 - 7A / 50-60Hz
  • 200-240Vac / 7 - 5A / 50-60Hz
+12V :
  • Max: 66.7A / Min: 0A (100-127Vac)
  • Max: 83A / Min: 0A (200-240Vac)
  • 12Vsb: Max: 2.1A / Min: 0A
  • Output Type : 25 Pairs Gold Finger Connector
System BIOS
  • BIOS Type : AMI 128Mb SPI Flash EEPROM
BIOS Features :
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 5.1
  • USB Keyboard Support
  • SMBIOS 3.1.1
Operating Environment
  • RoHS : RoHS Compliant
Environmental Spec. :
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)

* All specifications are subject to change without notice.

Features & Benefits

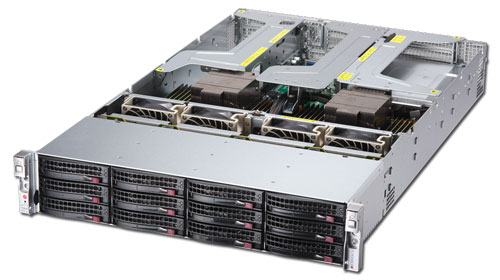

ASA-2101-EP2-R, a 1U 12-Bay Storage Server Solution, supports new generation dual AMD EPYCTM 7000-Series Processors.

Key Features

  • Dual AMD EPYCTM 7000-series processors supported (Socket SP3)
  • Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs
  • 24 hot-swap U.2 NVME drive bays
  • SATA3 (6 Gbps)
  • IPMI 2.0 + KVM with dedicated LAN support
  • 1600W Titanium level Redundant Power Supplies with PMBus

Processor
  • CPU : Dual AMD EPYCTM 7000-series Processors, Socket SP3
  • Chipset : System on Chip (SoC)
System Memory
Memory Capacity :
  • 32 DIMM sockets
  • Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs
  • 8-channel memory bus
Memory Type :
  • DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs
DIMM Sizes :
  • 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage :
  • 1.2V
Error Detection :
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-board Devices
  • SATA : SATA3 (6 Gbps)
IPMI :
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2500 BMC
  • Network Controllers : Provided via Ultra Riser Card
  • VGA : ASPEED AST2500 BMC
I/O
SATA :
  • 12 SATA3 (6 Gbps) ports
LAN :
  • Quad Gigabit LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB :
  • 3 USB 3.0 ports (2 rear + 1 Type A)
VGA :
  • 1 VGA port
SAS :
  • 12 SAS3 ports support via optional Add-on Card
NVMe :
  • 4 NVMe support with optional cables
Others :
  • 1 COM port (rear)
  • 2 SATA DOM power connector
  • TPM 1.2 header
Dimension and Weight
  • Height : 3.5" (89mm)
  • Width : 17.2" (437mm)
  • Depth : 28.46" (723mm)
Weight :
  • Net Weight: 36 lbs (16.4 kg)
  • Gross Weight: 72 lbs (32.7 kg)
Front Panel
Buttons :
  • Power On/Off button
  • System Reset button
LEDs :
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED / Fan fail LED / UID LED
Expansion Slots (PCIe 3.0)
  • 1 PCI-E 3.0 x16 slot (FH, 10.5" L)
  • 5 PCI-E 3.0 x8 slots (FH, 9.5" L)
  • 1 PCI-E 3.0 x8 slot (LP)
  • 1 PCI-E 3.0 x8 (internal LP)
Drive Bays
Hot-swap :
  • 12 hot-swap 3.5" Drive Bays :
    • 12 SATA3 by default
    • Optional Drive Support : 8 SAS3 + 4 SAS3/NVMe
  • 2 rear hot-swap 2.5" drive bays
System Cooling
  • Fans : 8 heavy-duty PWM fans with optimal fan speed control
Power Supply
  • 1600W Redundant Power Supplies with PMBus
  • Total Output Power : 1000W/1600W
  • Dimension (W x H x L) : 73.5 x 40 x 203 mm
Input :
  • 100-127Vac / 13 - 9A / 50-60Hz
  • 200-240Vac / 10 - 8A / 50-60Hz
+12V :
  • Max: 83.3A / Min: 0A (100-127Vac)
  • Max: 133A / Min: 0A (200-240Vac)
  • 12Vsb: Max: 2.1A / Min: 0A
  • Output Type: 25 Pairs Gold Finger Connector
System BIOS
  • BIOS Type: AMI 128Mb SPI Flash EEPROM
BIOS Features :
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 5.1
  • USB Keyboard Support
  • SMBIOS 3.1.1
Operating Environment
  • RoHS: RoHS Compliant
Environmental Spec. :
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)

* All specifications are subject to change without notice.
