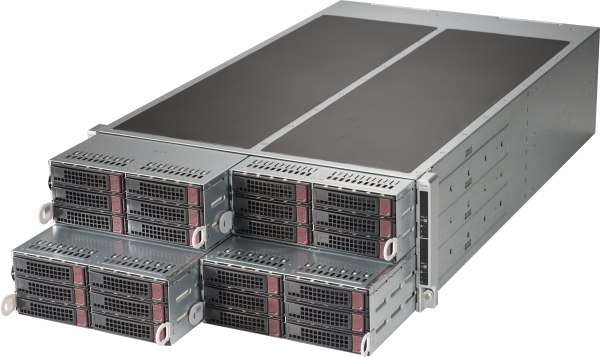

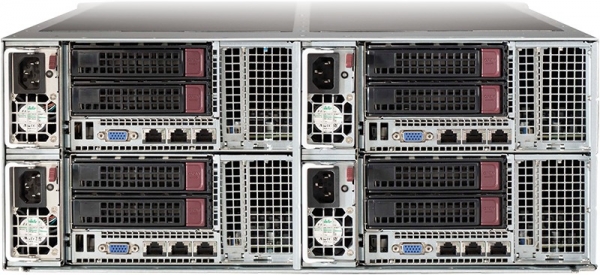

ASA4016-X2H-S3-R 4U FAT TWIN 4 NODE SERVER

• 4x Hot-plug System Nodes in 4U, each Node:

• Up to 8x 3.5" Hot-swap SAS/SATA HDDs (8 per U)

• Optional SAS2 (6Gbps) via LSI® 2308 controller; SW RAID 0, 1, 10 support

• Dual Intel® Xeon® Processor E5-2600 Series; Socket R (LGA 2011)

• Up to 256GB ECC Reg. DDR3 1600MHz SDRAM in 8 DIMM sockets

• 4x 1280W Redundant Platinum Level (95%) Digital Power Supplies

• 1x PCI-E 3.0 x16 (Low-profile) via riser card

• Dual LAN ports via Intel® i350 Gigabit Ethernet controller

• Server Management with Onboard IPMI 2.0 through Dedicated LAN Port


To run this machine at best, we advice you to populate both CPU socets with the same CPU.

For cross-shipment warranty please contact sales department by call (650-230-8000 or 1800-732-5727) or by email at sales@asacomputers.com
